2012 Suzuki RM-Z250L2 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2012 Suzuki RM-Z250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

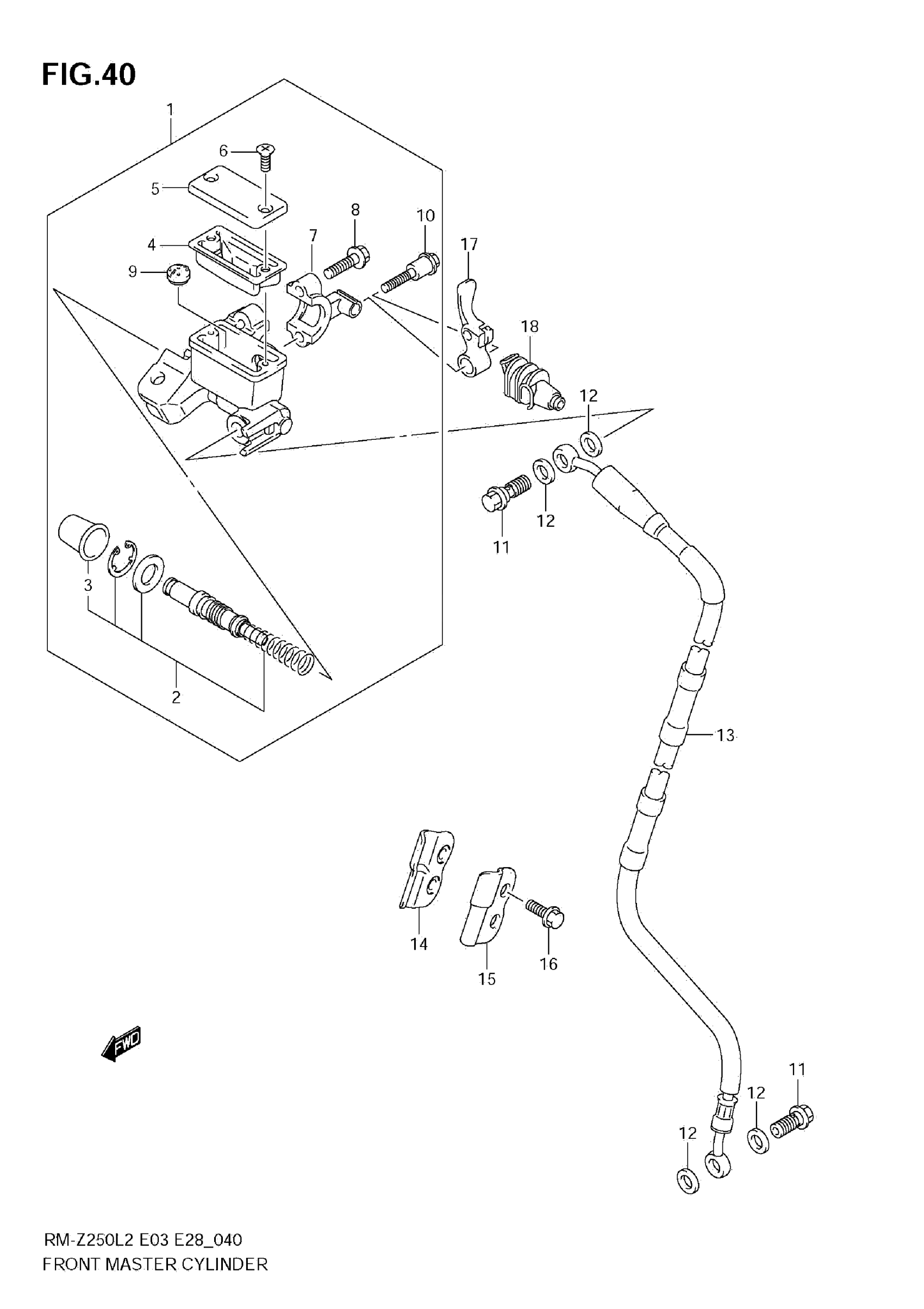

2012 Suzuki RM-Z250L2 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER

59600-28H00

1
Out of stock

2

PISTON & CUP SET

59600-37810

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

DIAPHRAGM

59667-14500

1
Out of stock

5

CAP

59669-27C01

1
Out of stock

6

SCREW

69689-49300

2
Out of stock

7

HOLDER (SILVER)

59671-28H00

1
Out of stock

8

BOLT

59675-06F10

2
Out of stock

9

SEPARATOR

59748-36E00

1

$10.58

In stock

10

BOLT

57517-28H00

1
Out of stock

11

UNION

09360-10065

2
Out of stock

12

WASHER (10X15X1.5)

09161-10009

4
Out of stock

13

HOSE,FR BRAKE This part replaces 59480-28H00.

59480-28H01

1
Out of stock

14

CLAMP, INNER

59260-28H10

1
Out of stock

15

CLAMP,FR BRAKE HOSE

59271-28H10

1
Out of stock

16

BOLT (6X16)

09103-06234

2
Out of stock

17

LEVER, MASTER CYLINDER HOLDER

57153-28H01

1
Out of stock

18

COVER, HOLDER LEVER

57516-28H10

1
Out of stock
