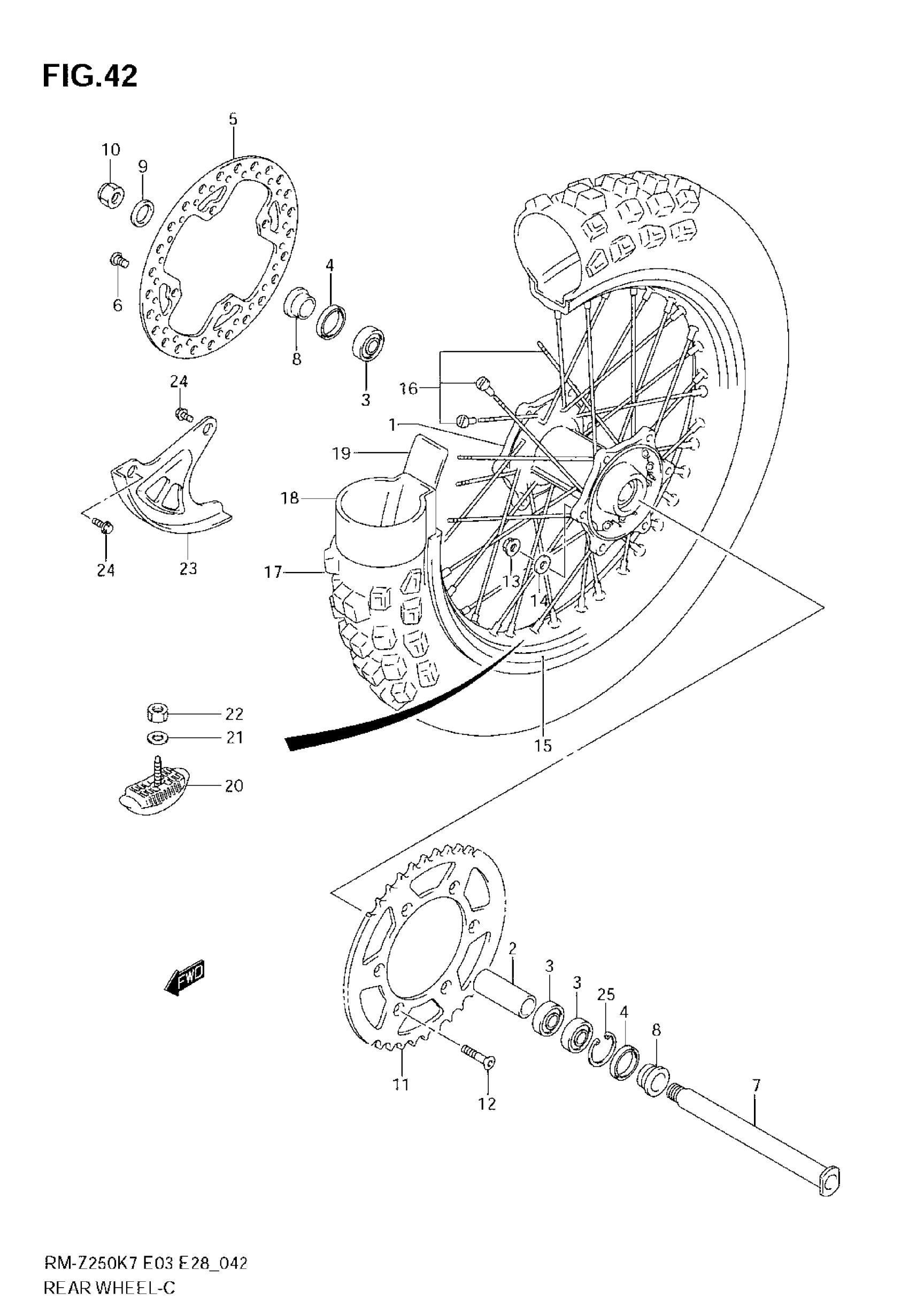

Suzuki RM-Z250 (2009) REAR WHEEL (MODEL K7) Diagram

#

Description
Price

1

.HUB,REAR This part replaces 64111-35G20.

64111-35G30

$304.90

2

.SPACER,RR HUB BEARING

64731-35G01

$31.65

3

.BEARING (25X42X9) This part replaces 09262-25139.

09262-25192

$50.30

4

.SEAL,OIL (32X43X7) This part replaces 09283-32045.

09283-32049

$11.29

5

DISC, REAR BRAKE

69211-35G10

Unavailable

6

SCREW

09139-08022

$4.83

7

AXLE,RR This part replaces 64711-35G00.

64711-35G10

$131.97

8

SPACER This part replaces 64751-35G00.

64751-35G01

$40.32

9

WASHER

09160-22081

$2.80

10

NUT

09159-22007

$17.33

11

SPROCKET,RR (NT:48)

64511-37E00

$194.80

11

SPROCKET,RR (NT:50) | OPT

64511-36E00

$140.88

11

SPROCKET, REAR (NT:51) | OPT

64511-40261

$172.72

11

SPROCKET,RR (NT:49) | OPT

64511-28E00

$134.48

12

SCREW (8X30.5)

09120-08017

$2.80

13

NUT

09159-08133

$5.00

14

WASHER

09160-08082

$1.64

15

RIM, REAR WHEEL (1.85X19)

65311-10H00

Unavailable

16

SPOKE SET, WHEEL

65320-35G10

Unavailable

17

TIRE, REAR (100/90-19) (DUNLOP)

65110-36F00

Unavailable

18

TUBE This part replaces 55200-44610.

55200-44611

$44.78

19

PROTECTOR, INNER TUBE

65261-01B30

$9.25

20

STOPPER, BEAD

65270-43D00

$66.32

21

WASHER

08322-0108A

$2.18

22

NUT

08310-0008A

$1.86

23

COVER, REAR DISC This part replaces 69231-37F11.

69231-37F12

$18.90

24

BOLT

09116-06197

$2.80

25

CIRCLIP This part replaces 08331-4142A.

08331-41429

$2.51
