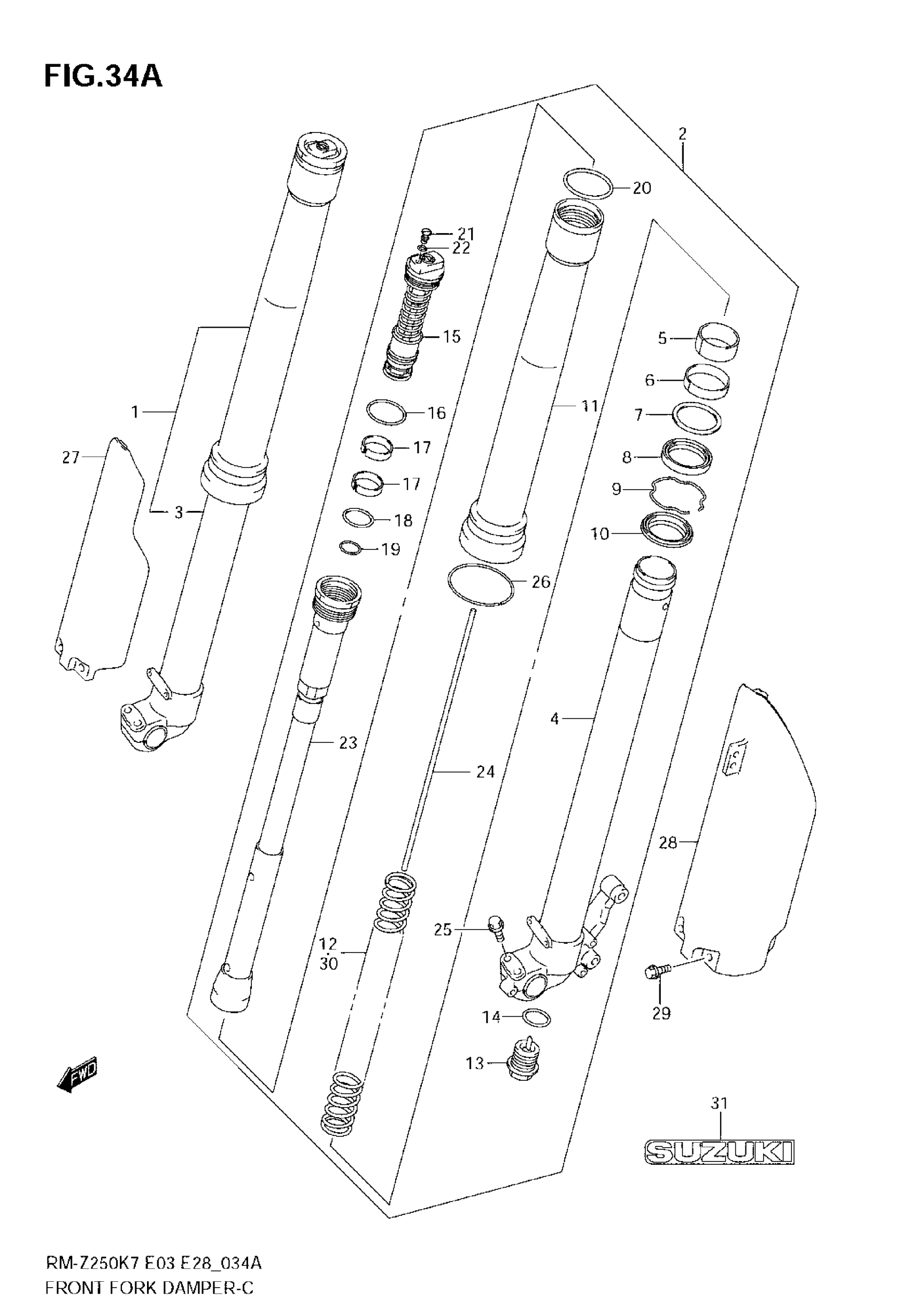

Suzuki RM-Z250 (2009) FRONT DAMPER (MODEL K8/K9) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-10H10

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 26

51104-10H10

Unavailable

3

TUBE, INNER RH

51110-35G30

Unavailable

4

TUBE, INNER LH

51120-35G30

Unavailable

5

BUSH, GUIDE

51121-36F00

$31.18

6

BUSH, GUIDE

51167-36F00

$26.92

7

SPACER, SEAL

51158-36F00

$10.58

8

SEAL, OIL

51153-37F80

$26.99

9

RING, OIL SEAL STOPPER

51156-27C40

$4.89

10

SEAL, DUST

51173-37F80

$24.34

11

TUBE, OUTER

51130-10H10

Unavailable

12

SPRING, FRONT (K=0.44)

51171-10H10

Unavailable

13

BOLT, CENTER

51170-37FC0

$239.40

14

O RING

51177-36E20

$5.43

15

BOLT, FORK

51351-10H10

Unavailable

16

O RING

51117-37F80

$7.83

17

BUSH, FORK BOLT SLIDE

51123-28E30

$17.18

18

O RING

51174-36E40

$5.63

19

O RING

51175-37F80

$6.60

20

O RING

51118-37F80

$7.83

21

..BOLT,PLUG

51357-36F20

$15.77

22

...O-RING

51358-28E30

$4.83

23

ROD, DAMPER

51190-10H10

Unavailable

24

ROD, PUSH

51191-10H10

$26.07

25

BOLT

51328-37F80

$6.64

26

RING STOPPER

51211-37FC0

$11.50

27

PROTECTOR, RH

51501-28H00

$140.58

28

PROTECTOR, LH

51511-28H00

$140.58

29

BOLT

09111-06098

$3.30

30

SPRING, FRONT (SOFT K=0.42) | OPT

51171-10H20

Unavailable

30

SPRING, FRONT (HARD K=0.46) | OPT

51171-10H30

Unavailable

31

EMBLEM,SUZUKI This part replaces 68661-29F00-DPZ.

68661-29F01-DPZ

$30.90
