2009 Suzuki RM-Z250 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2009 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

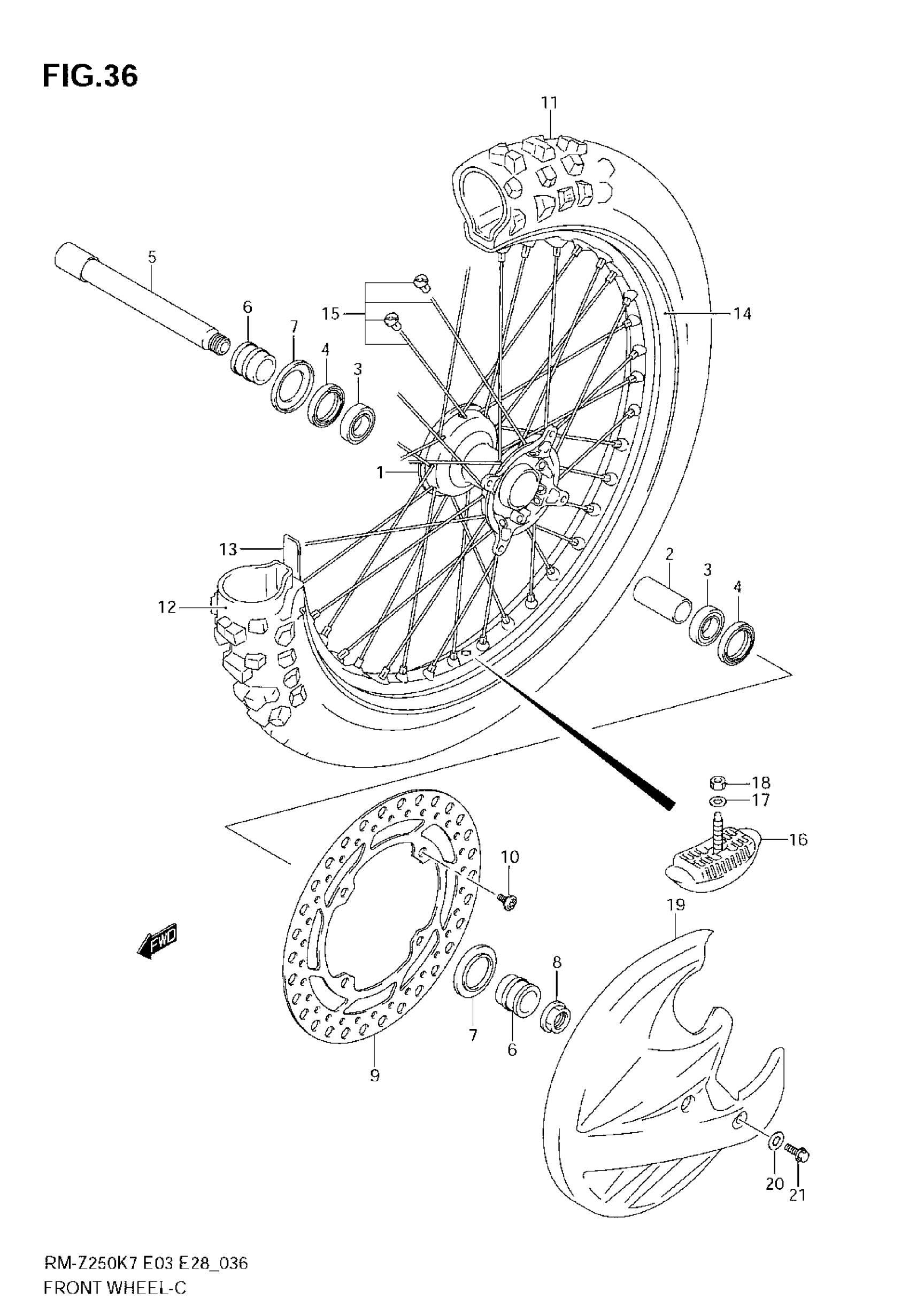

2009 Suzuki RM-Z250 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.HUB,FR

54111-35G01

1
Out of stock

2

.SPACER,FR HUB BEARING (20.5X

54731-35G00

1
Out of stock

3

.BEARING (22X39X9) This part replaces 09262-22034.

09262-22048

2
Out of stock

4

.SEAL,OIL (30X40X7)

09283-30073

2
Out of stock

5

AXLE,FR

54711-35G00

1
Out of stock

6

SPACER,FR AXLE (L:41)

54741-35G00

2
Out of stock

7

COVER,FR AXLE SPACER

54742-35G00

2
Out of stock

8

NUT

09159-18016

1
Out of stock

9

DISC, FRONT BRAKE

59221-35G10

1
Out of stock

10

SCREW

09139-06142

4
Out of stock

11

TIRE, FRONT (80/100-21) (DUNLOP)

55110-10H00

1
Out of stock

12

TUBE ASSY,WHEEL INNER This part replaces 55200-29F00.

55200-29F01

1
Out of stock

13

PROTECTOR, INNER TUBE

55261-44AF0

1
Out of stock

14

RIM, FRONT WHEEL (1.60X21)

55311-10H00

1
Out of stock

15

SPOKE SET, FRONT WHEEL

55320-35G10

1
Out of stock

16

STOPPER, BEAD

65270-14300

1
Out of stock

17

WASHER

08322-0108A

1
Out of stock

18

NUT

08310-0008A

1
Out of stock

19

COVER, FRONT BRAKE DISC | OPT

59231-36E30-YU1

1
Out of stock

20

WASHER, FRONT BRAKE DISC COVER | OPT

59232-36E30

2
Out of stock

21

BOLT | OPT

09103-06232

2
Out of stock
