2009 Suzuki RM-Z250 Front Damper Diagram

← All diagrams

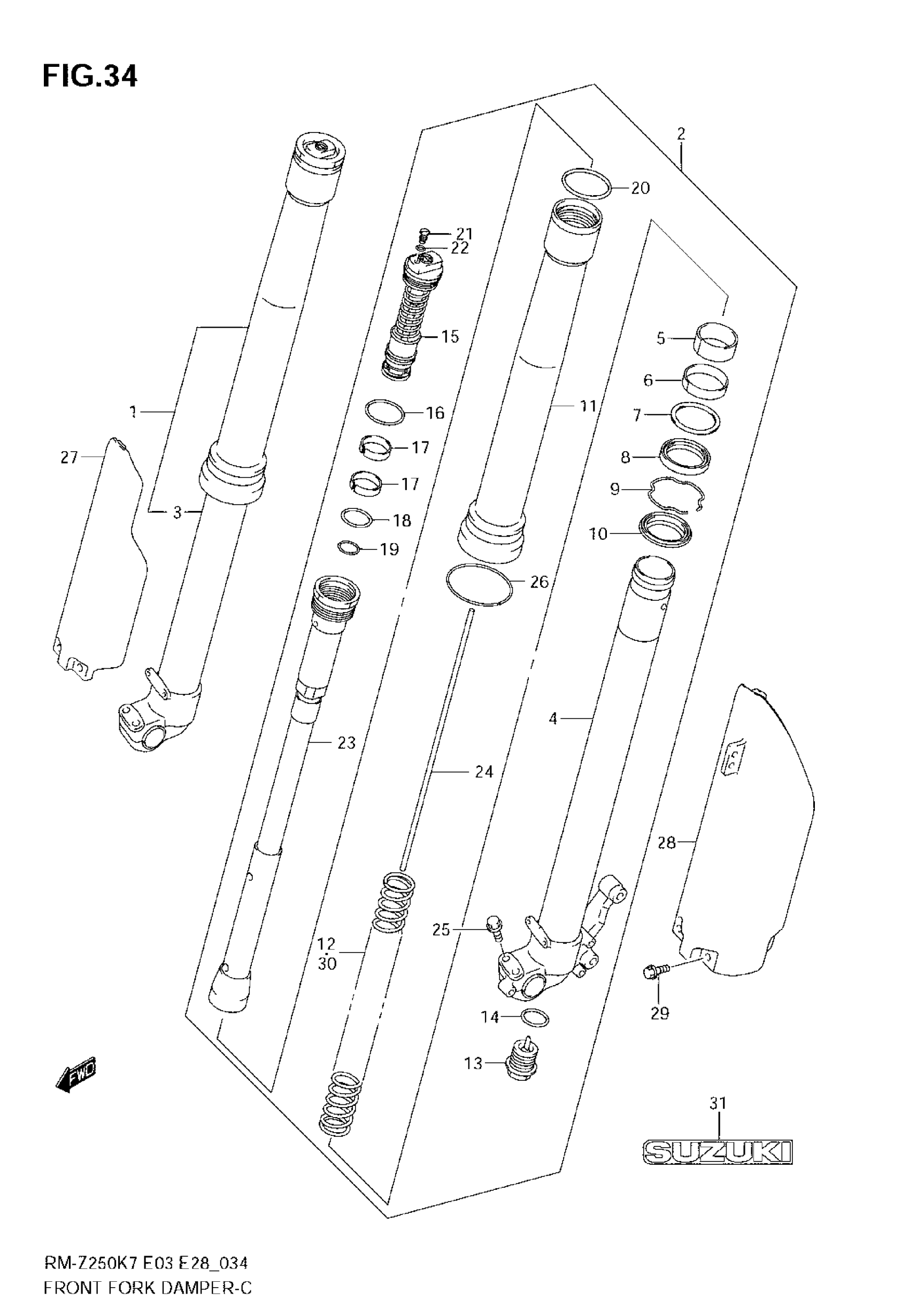

Find the part on the Front Damper diagram for your 2009 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki RM-Z250 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-10H00

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 26

51104-10H00

1
Out of stock

3

TUBE, INNER RH

51110-35G30

1
Out of stock

4

TUBE, INNER LH

51120-35G30

1
Out of stock

5

BUSH, GUIDE

51121-36F00

2

$31.18

In stock

6

BUSH, GUIDE

51167-36F00

2

$26.92

In stock

7

SPACER, SEAL

51158-36F00

2

$10.58

In stock

8

SEAL, OIL

51153-37F80

2

$29.39

In stock

9

2

$5.33

In stock

10

SEAL, DUST

51173-37F80

2

$26.50

In stock

11

TUBE, OUTER

51130-10H00

2
Out of stock

12

SPRING, FRONT (K=0.44)

51171-37FC0

2
Out of stock

13

BOLT, CENTER

51170-37FC0

2
Out of stock

14

O RING

51177-36E20

2

$5.43

In stock

15

BOLT, FORK

51351-10H00

2
Out of stock

16

O RING

51117-37F80

2
Out of stock

17

BUSH, FORK BOLT SLIDE

51123-28E30

4

$17.18

In stock

18

O RING

51174-36E40

2

$5.63

In stock

19

O RING

51175-37F80

2
Out of stock

20

O RING

51118-37F80

2
Out of stock

21

..BOLT,PLUG

51357-36F20

2

$15.77

In stock

22

...O-RING

51358-28E30

2

$4.83

In stock

23

ROD, DAMPER

51190-10H00

2
Out of stock

24

ROD, PUSH

51191-36F40

2
Out of stock

25

BOLT

51328-37F80

4
Out of stock

26

RING STOPPER

51211-37FC0

2
Out of stock

27

PROTECTOR, RH

51501-37F70

1
Out of stock

28

PROTECTOR, LH

51511-37F70

1
Out of stock

29

BOLT

09103-06256

6

$2.62

In stock

30

SPRING, FRONT (SOFT K=0.42) | OPT

51171-37FD0

2
Out of stock

30

SPRING, FRONT (HARD K=0.46) | OPT

51171-37FE0

2
Out of stock

31

EMBLEM,SUZUKI This part replaces 68661-29F00-DPZ.

68661-29F01-DPZ

2
Out of stock
