2025 Kawasaki Ridge® XR Hvac Sun Top Diagram

← All diagrams

Find the part on the Sun Top diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

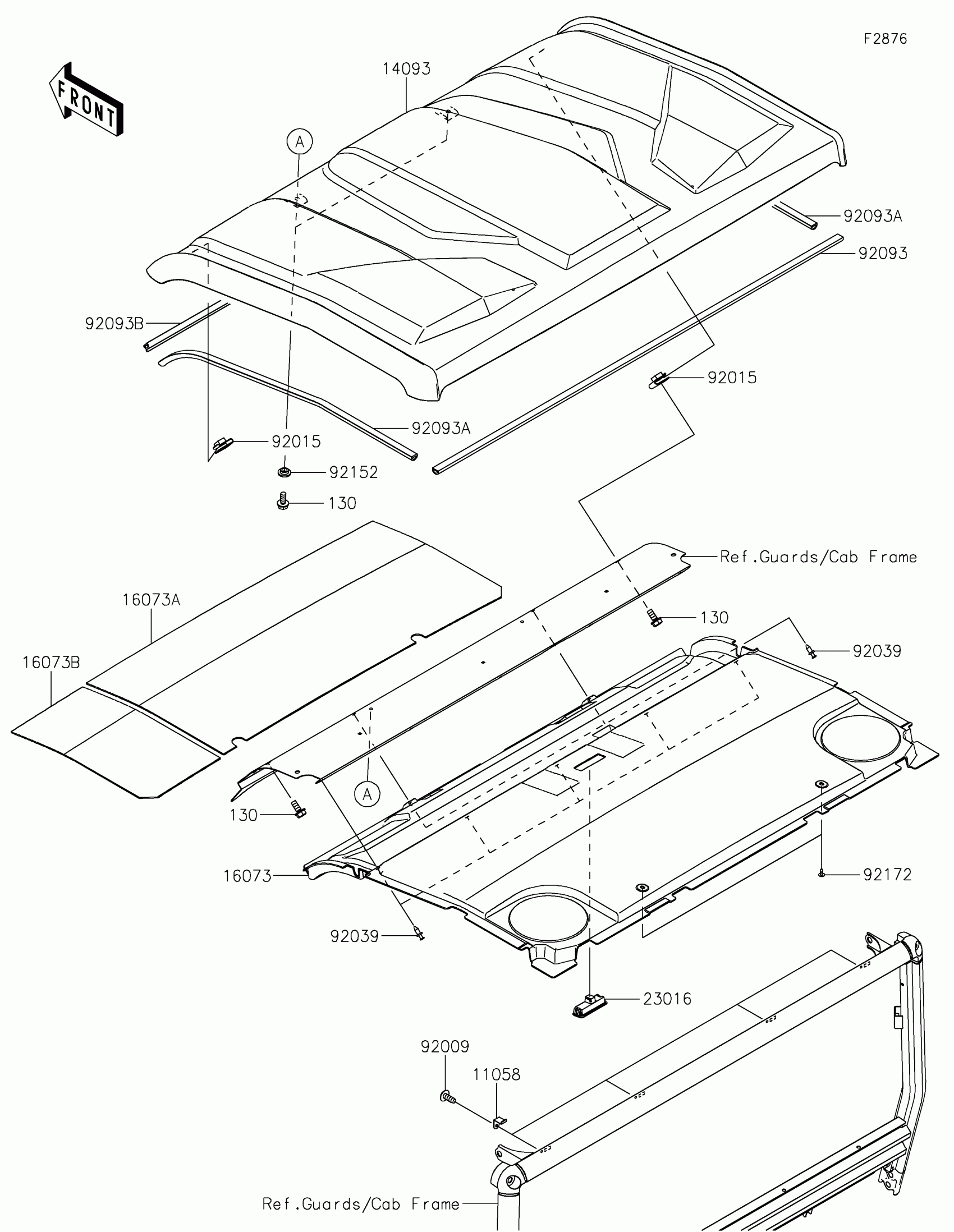

2025 Kawasaki Ridge® XR Hvac Sun Top Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,ROOF

11058-0254

1
Out of stock

14093

COVER,ROOF

14093-1352

1
Out of stock

16073

INSULATOR,ROOM LIGHT

16073-0980

1
Out of stock

16073A

INSULATOR,HEAT,RH

16073-0981

1
Out of stock

16073B

INSULATOR,HEAT,LH

16073-0982

1
Out of stock

23016

LAMP-ASSY,ROOM

23016-0673

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92015

NUT,6MM

92015-1602

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92093

SEAL,ROOF,RR

92093-0778

1
Out of stock

92093A

SEAL,ROOF,SIDE

92093-0779

1
Out of stock

92093B

SEAL,ROOF,FR

92093-0812

1
Out of stock

92152

COLLAR,6.3X9.5X4.1

92152-1571

1
Out of stock

92172

SCREW,6X16

92172-0284

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock
