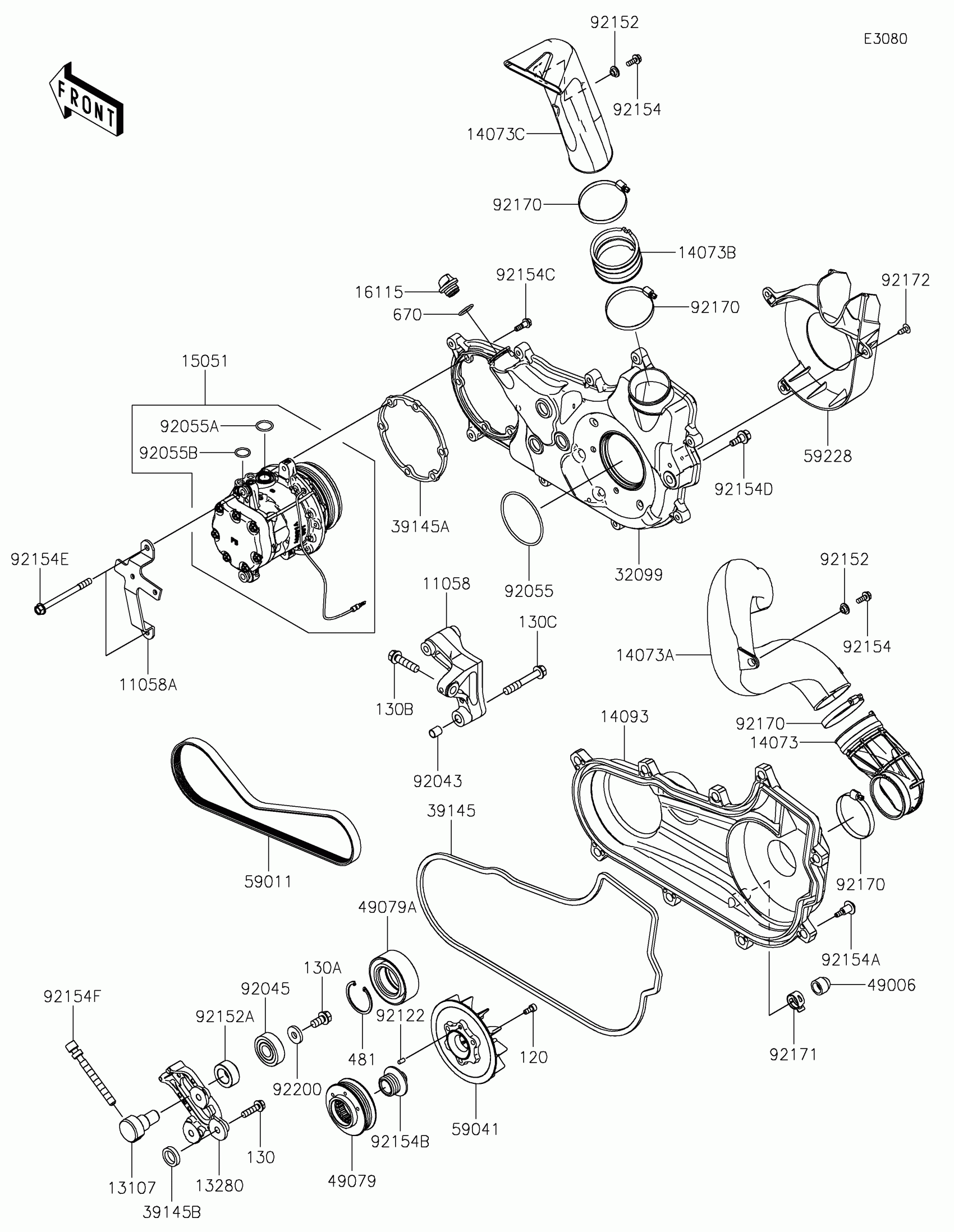

Kawasaki RIDGE® XR HVAC Compressor Diagram

#

Description
Price

11058

BRACKET,COMPRESSOR MOUNT

11058-0314

$120.49

11058A

BRACKET,HOSE

11058-0315

$19.59

13107

SHAFT

13107-0976

$75.56

13280

HOLDER

13280-1349

$87.01

14073

DUCT,JOINT INTAKE

14073-1896

$10.90

14073A

DUCT,INTAKE

14073-1897

$37.03

14073B

DUCT,JOINT EXHAUST

14073-1898

$3.86

14073C

DUCT,EXHAUST

14073-1899

$59.73

14093

COVER,FAN

14093-1388

$129.55

15051

COMPRESSOR-AIR

15051-0003

$1,863.69

16115

CAP-OIL FILLER

16115-1053

$9.28

32099

CASE,FAN

32099-0826

$256.44

39145

TRIM-SEAL

39145-0751

$49.40

39145A

TRIM-SEAL

39145-0752

$16.75

39145B

TRIM-SEAL

39145-0789

$1.88

49006

BOOT,DRAIN

49006-0560

$5.71

49079

PULLEY-BELT

49079-0030

$156.91

49079A

PULLEY-BELT

49079-0032

$143.85

59011

BELT,COMPRESSOR

59011-0058

$13.86

59041

FAN

59041-0036

$107.88

59228

LOUVER

59228-0004

$53.59

92043

PIN,10.1X12X14

92043-4009

$4.67

92045

BEARING-BALL,17X47X14

92045-3742

$20.47

92055

RING-O,77.1X3.1

92055-1740

$5.42

92055A

RING-O

92055-1780

$3.83

92055B

RING-O

92055-1781

$3.83

92122

ROLLER

92122-0569

$0.78

92152

COLLAR,6.5X10X5.6

92152-0445

$3.74

92152A

COLLAR

92152-2927

$33.49

92154

BOLT,FLANGED,6X16

92154-0887

$1.24

92154A

BOLT,CVT COVER

92154-1522

$2.27

92154B

BOLT,PULLEY

92154-7011

$97.57

92154C

BOLT,FAN CASE

92154-7012

$2.20

92154D

BOLT,FAN CASE

92154-7013

$3.31

92154E

BOLT,8X97

92154-7014

$2.37

92154F

BOLT,TENSION ADJUST

92154-7114

$37.99

92170

CLAMP

92170-1764

$8.62

92171

CLAMP

92171-0329

$6.77

92172

SCREW,6X16

92172-0284

$0.90

92200

WASHER,10.5X26X4

92200-3798

$3.54

120

BOLT-SOCKET,6X14

120CA0614

$3.68

130

BOLT-FLANGED,8X30

130BA0830

$1.44

130A

BOLT-FLANGED,10X20

130BA1020

Unavailable

130B

BOLT-FLANGED,10X40

130CA1040

$2.29

130C

BOLT-FLANGED,10X65

130CA1065

$1.71

481

CIRCLIP-TYPE-C,47MM

481J4700

$3.22

670

O RING,20MM

670B2020

$0.97
