2025 Kawasaki Ridge® XR Hvac Side Covers Diagram

← All diagrams

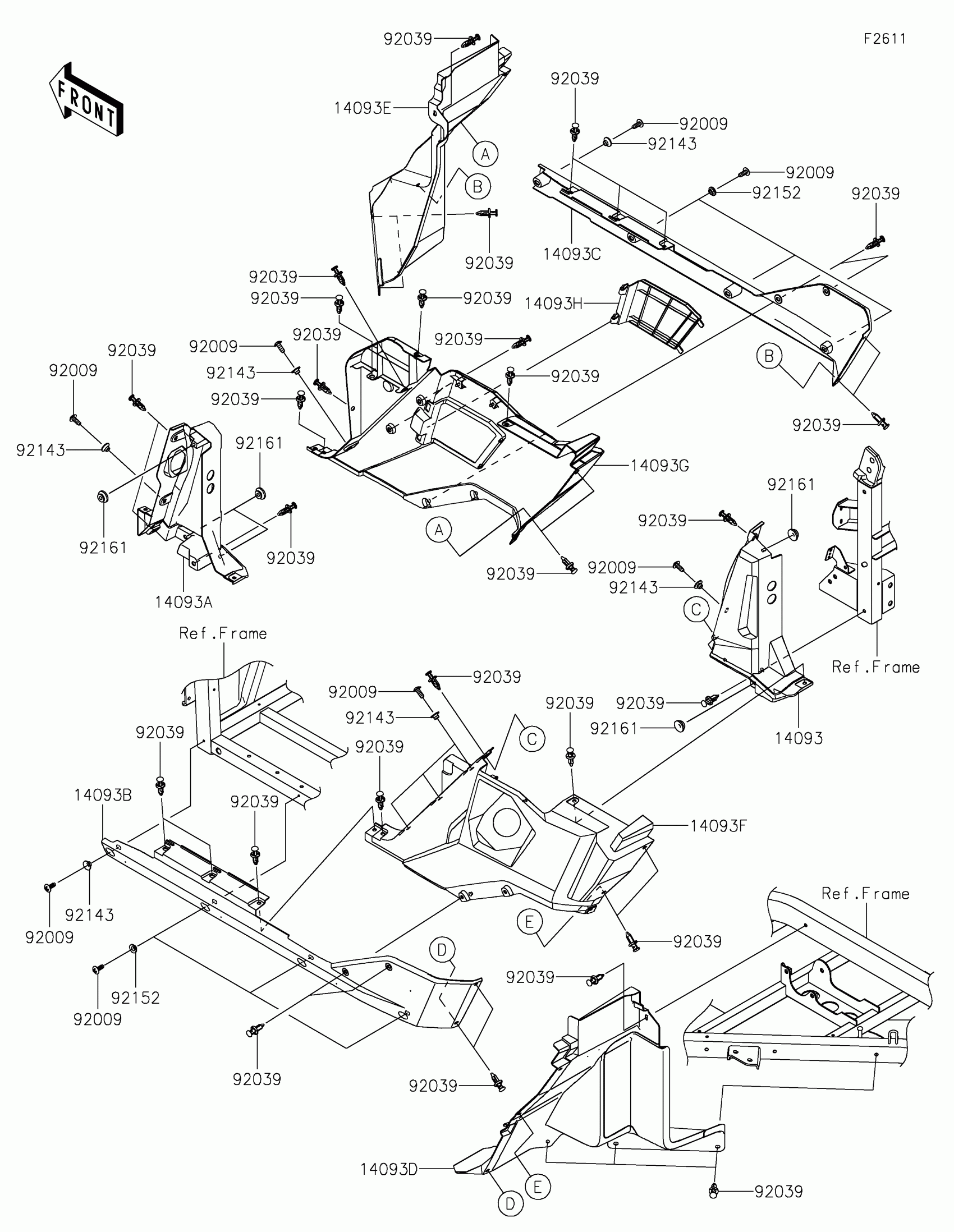

Find the part on the Side Covers diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® XR Hvac Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,SIDE,LH,UPP

14093-1327

1
Out of stock

14093A

COVER,SIDE,RH,UPP

14093-1328

1
Out of stock

14093B

COVER,SIDE GUARD,LH,LWR,BLACK

14093-1331-6Z

1
Out of stock

14093C

COVER,SIDE GUARD,RH,LWR,BLACK

14093-1332-6Z

1
Out of stock

14093D

COVER,RR MUDGUARD,LH

14093-1335

1
Out of stock

14093E

COVER,RR MUDGUARD,RH

14093-1336

1
Out of stock

14093F

COVER,SIDE,LH,LWR

14093-1343

1
Out of stock

14093G

COVER,SIDE,RH,LWR

14093-1344

1
Out of stock

14093H

COVER,BATTERY

14093-1345

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92152

COLLAR,6.3X9.5X4.1

92152-1571

1
Out of stock

92161

DAMPER

92161-1531

1

$2.44

In stock
