2025 Kawasaki Ridge® XR Hvac Door Diagram

← All diagrams

Find the part on the Door diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

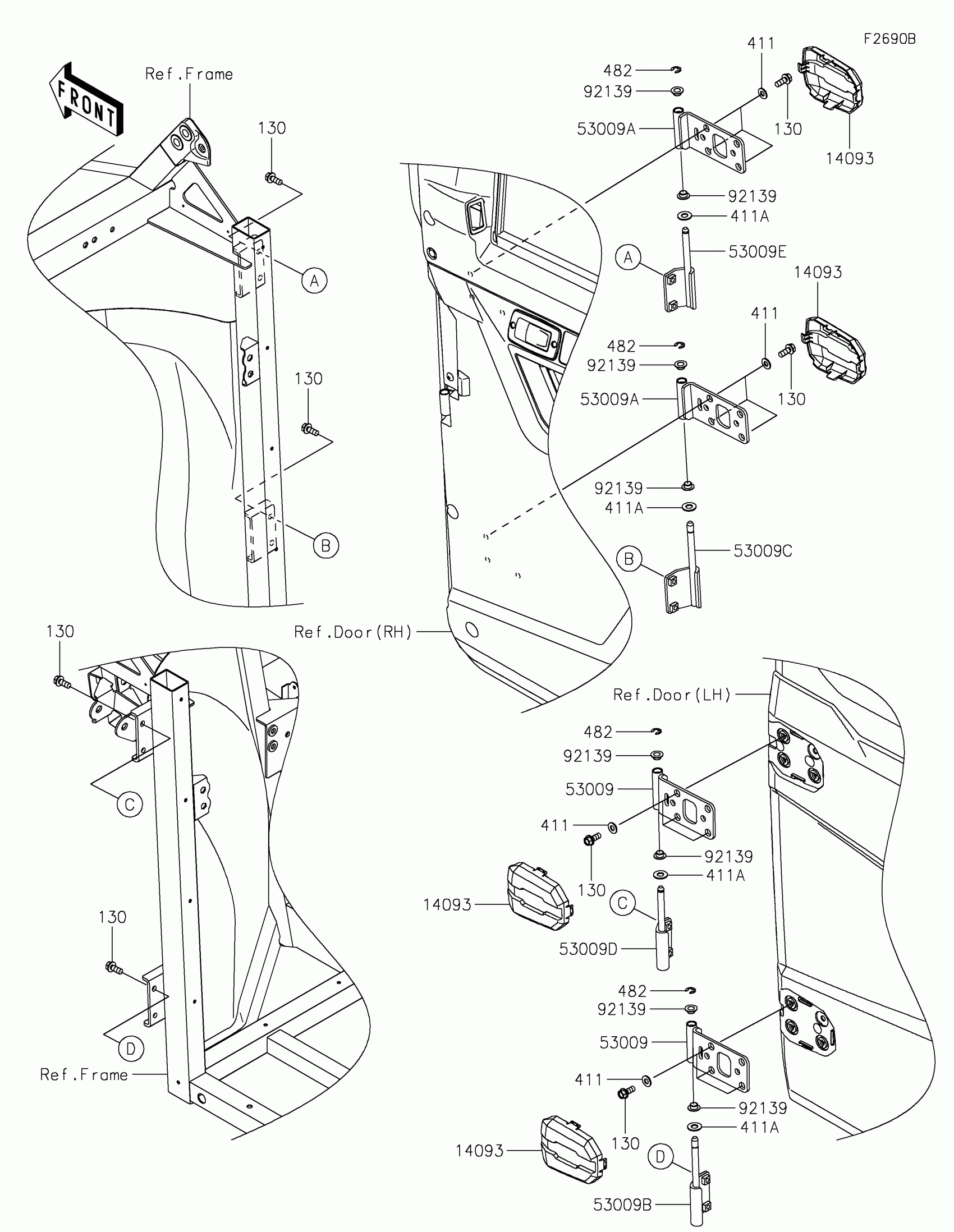

2025 Kawasaki Ridge® XR Hvac Door Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,DOOR HINGE

14093-1320

1
Out of stock

53009

HINGE,DOOR,LH

53009-0313

1
Out of stock

53009A

HINGE,DOOR,RH

53009-0314

1
Out of stock

53009B

HINGE,DOOR,LH,LWR

53009-0315

1
Out of stock

53009C

HINGE,DOOR,RH,LWR

53009-0316

1
Out of stock

53009D

HINGE,DOOR,LH,UPP

53009-0317

1
Out of stock

53009E

HINGE,DOOR,RH,UPP

53009-0318

1
Out of stock

92139

BUSHING

92139-0230

1
Out of stock

130

BOLT-FLANGED,8X20

130BA0820

1

$3.27

In stock

411

WASHER-PLAIN,8MM

411AA0800

1
Out of stock

411A

WASHER-PLAIN,10MM,BLACK

411AB1000

1
Out of stock

482

CIRCLIP-TYPE-E,8MM

482EB8000

1
Out of stock
