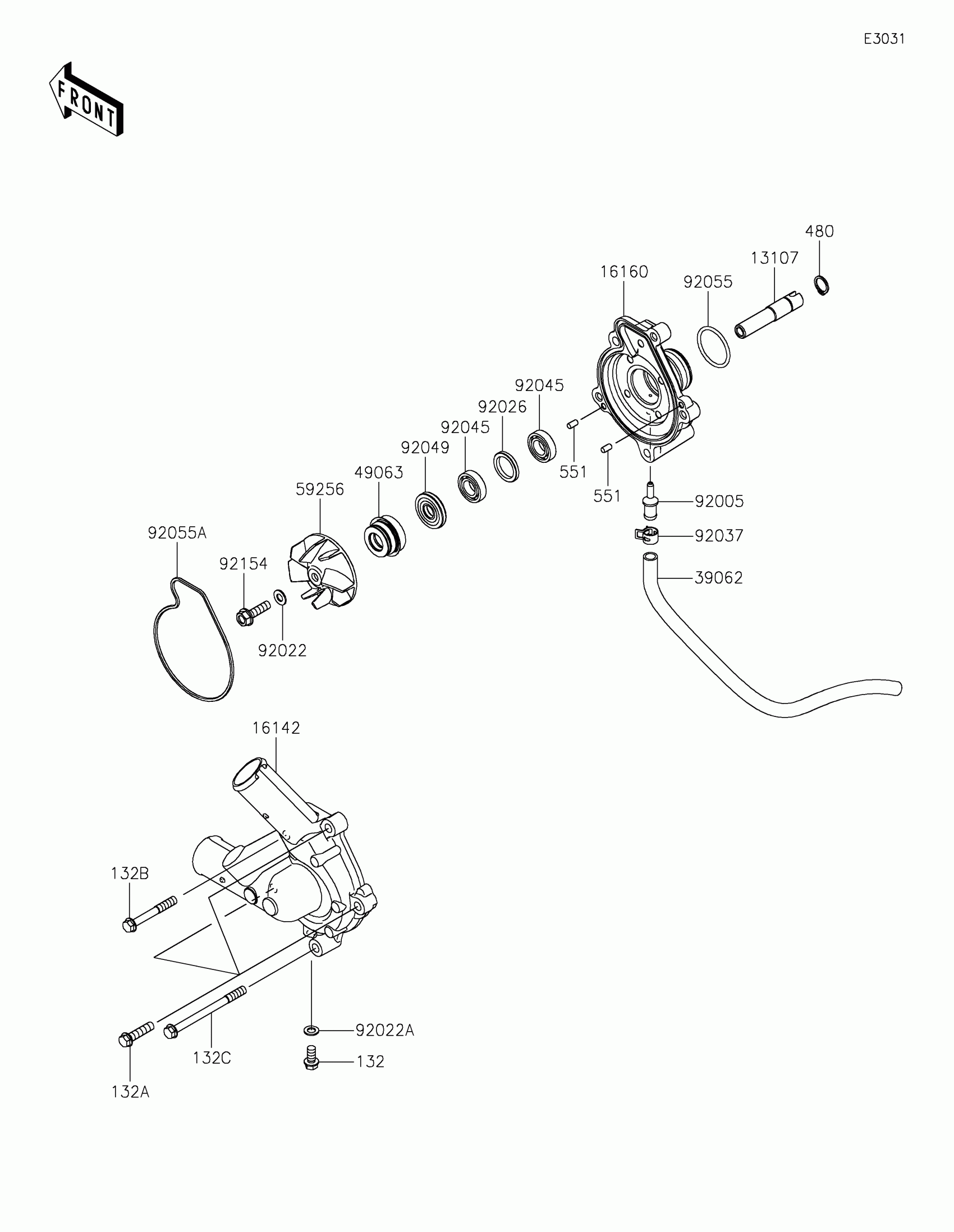

Find the part on the Water Pump diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge XR Crew Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,WATER PUMP BODY

13107-0894

1
Out of stock

16142

COVER-PUMP

16142-0772

1
Out of stock

16160

BODY,WATER PUMP

16160-0858

1
Out of stock

39062

HOSE-COOLING,7.5X10.5X280

39062-1949

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

59256

IMPELLER

59256-0017

1
Out of stock

92005

FITTING

92005-1482

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92026

SPACER

92026-0952

1
Out of stock

92037

CLAMP

92037-2113

1
Out of stock

92045

BEARING-BALL,6901

92045-1246

1
Out of stock

92049

SEAL-OIL

92049-0798

1
Out of stock

92055

RING-O,28.7X2.4

92055-0922

1
Out of stock

92055A

RING-O,WATER PUMP COVER

92055-1736

1
Out of stock

92154

BOLT,6X22

92154-2832

1
Out of stock

132

1

$1.12

In stock

132A

1

$2.29

In stock

132B

1

$3.53

In stock

132C

1

$4.63

In stock

480

CIRCLIP-TYPE-C,12MM

480J1200

1
Out of stock

551

PIN-DOWEL,4X8

551A0408

1
Out of stock
