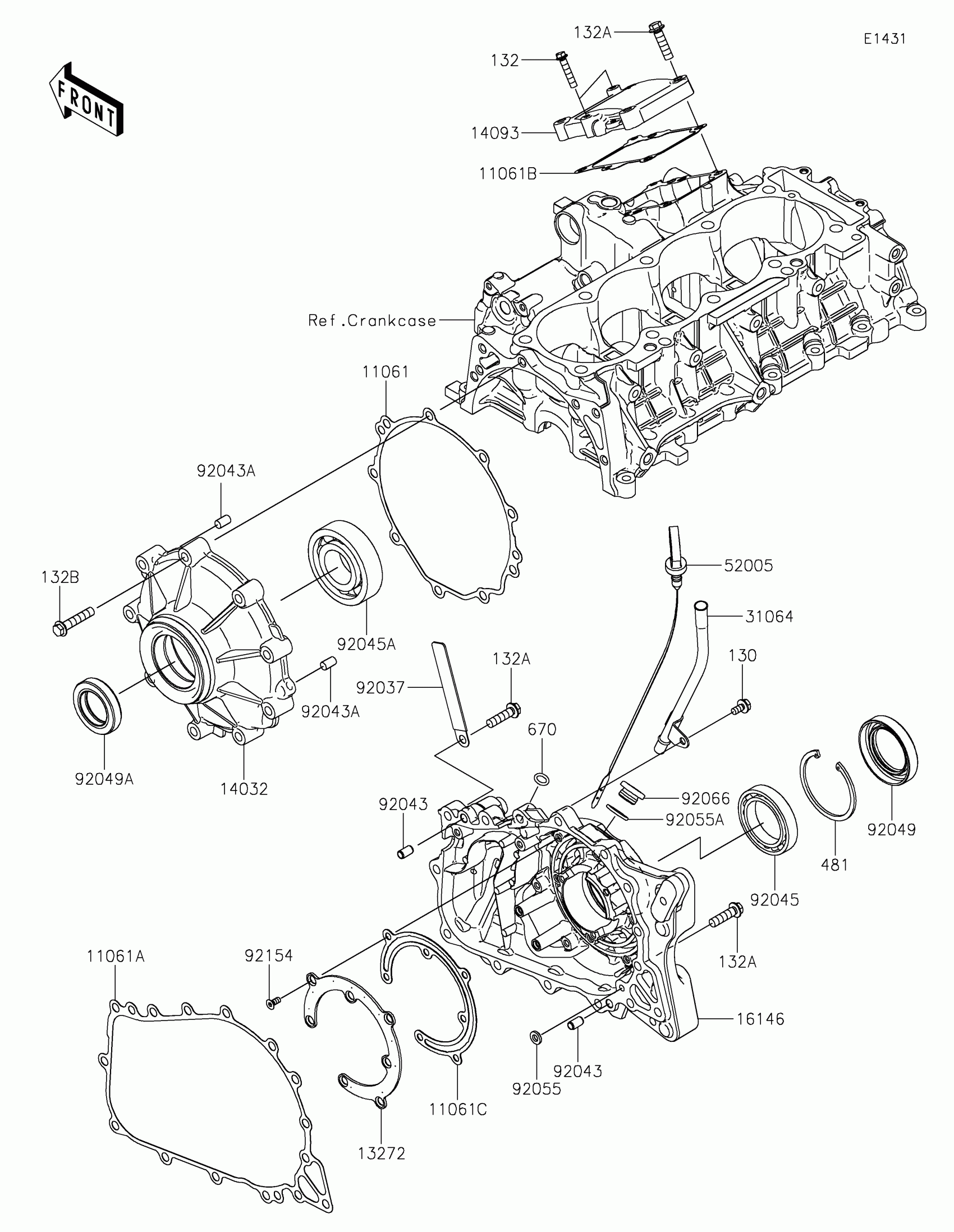

Kawasaki RIDGE XR CREW Engine Cover(s) Diagram

#

Description
Price

11061

GASKET,CLUTCH COVER

11061-1451

$36.46

11061A

GASKET,CRANKCASE COVER

11061-1454

$38.40

11061B

GASKET

11061-1456

$11.12

11061C

GASKET,GENERATOR COVER

11061-1483

$20.93

13272

PLATE,GENERATOR

13272-4093

$74.98

14032

COVER-CLUTCH

14032-0699

$124.78

14093

COVER

14093-1359

$71.64

16146

COVER-ASSY,GENERATOR

16146-0900

$255.70

31064

PIPE-COMP

31064-0799

$23.69

52005

GAUGE,OIL

52005-0785

$23.31

92037

CLAMP,HARNESS,L=100

92037-1636

$7.56

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,8X14

92043-1567

$1.62

92045

BEARING-BALL,6909C3

92045-0968

$34.33

92045A

BEARING-BALL,2TS2-6307UC3

92045-0969

$48.42

92049

SEAL-OIL

92049-0867

$12.86

92049A

SEAL-OIL

92049-0868

$10.97

92055

RING-O,OD=13

92055-074

$6.55

92055A

RING-O,20X2

92055-1146

$6.55

92066

PLUG,COVER

92066-0011

$12.09

92154

BOLT,5X12

92154-4490

$1.47

130

BOLT-FLANGED,6X12

130BA0612

$1.25

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

132A

BOLT-FLANGED-SMALL,8X30

132BA0830

$3.39

132B

BOLT-FLANGED-SMALL,8X40

132BA0840

$3.85

481

CIRCRIP-TYPE-C,68MM

481J6800

$6.54

670

O RING,10MM

670D2010

$1.41
