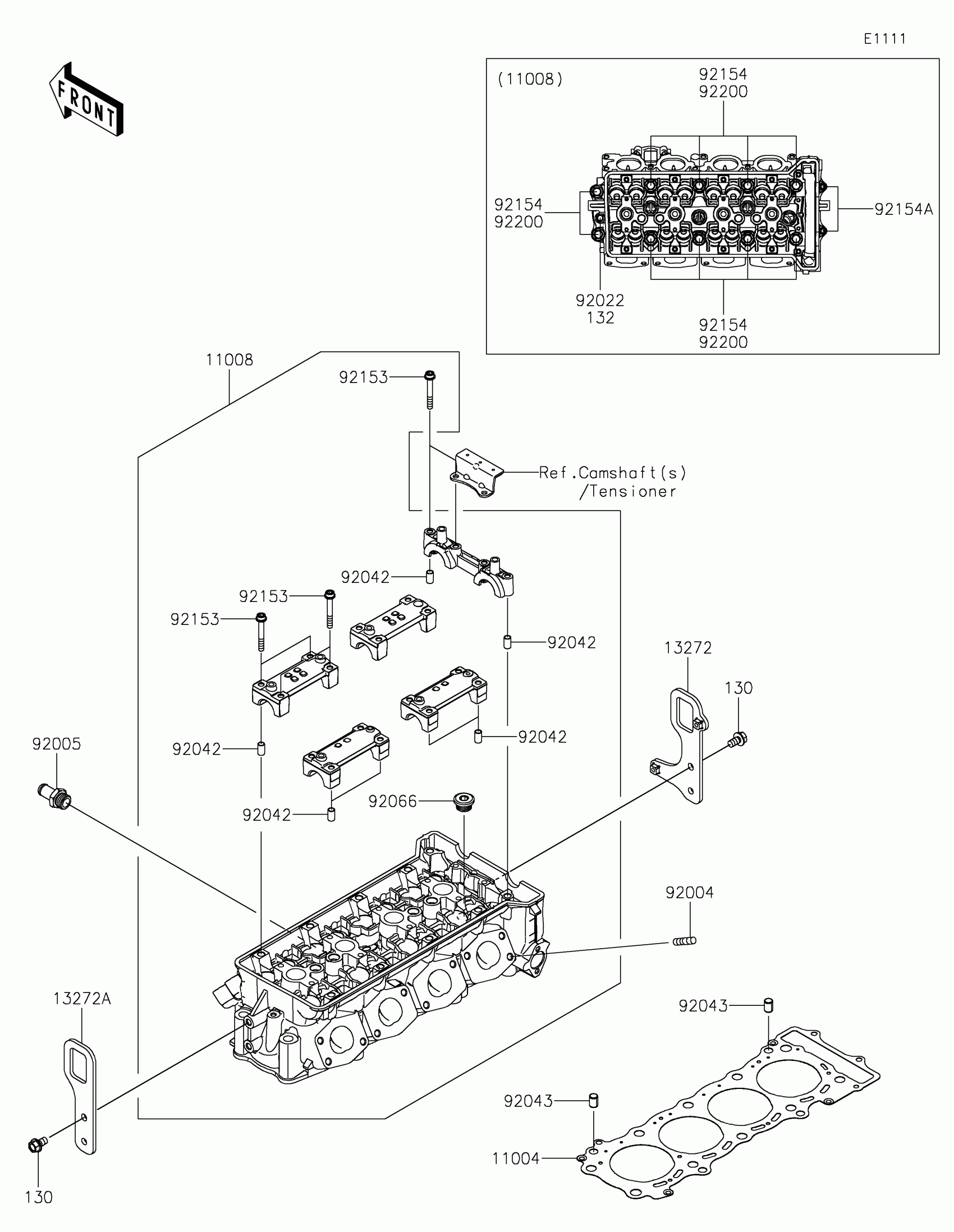

Kawasaki RIDGE XR CREW Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0814

$123.89

11008

HEAD-COMP-CYLINDER

11008-1556

$2,399.19

13272

PLATE,ENG HANGING RH

13272-7198

$14.46

13272A

PLATE,ENG HANGING LH

13272-7199

$7.76

92004

STUD,8X22

92004-0025

$2.95

92005

FITTING

92005-1446

$53.61

92022

WASHER,6.2X11X1

92022-304

$2.76

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,8.2X10X14

92043-1264

$0.51

92066

PLUG,18X10

92066-0832

$12.31

92153

BOLT,SOCKET,6X45

92153-0656

$1.81

92154

BOLT,11X157

92154-3931

$11.98

92154A

BOLT,6X87

92154-7025

$4.24

92200

WASHER,11.2X18.2X1.8

92200-0940

$2.27

130

BOLT-FLANGED,8X14

130CA0814

$1.14

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27
