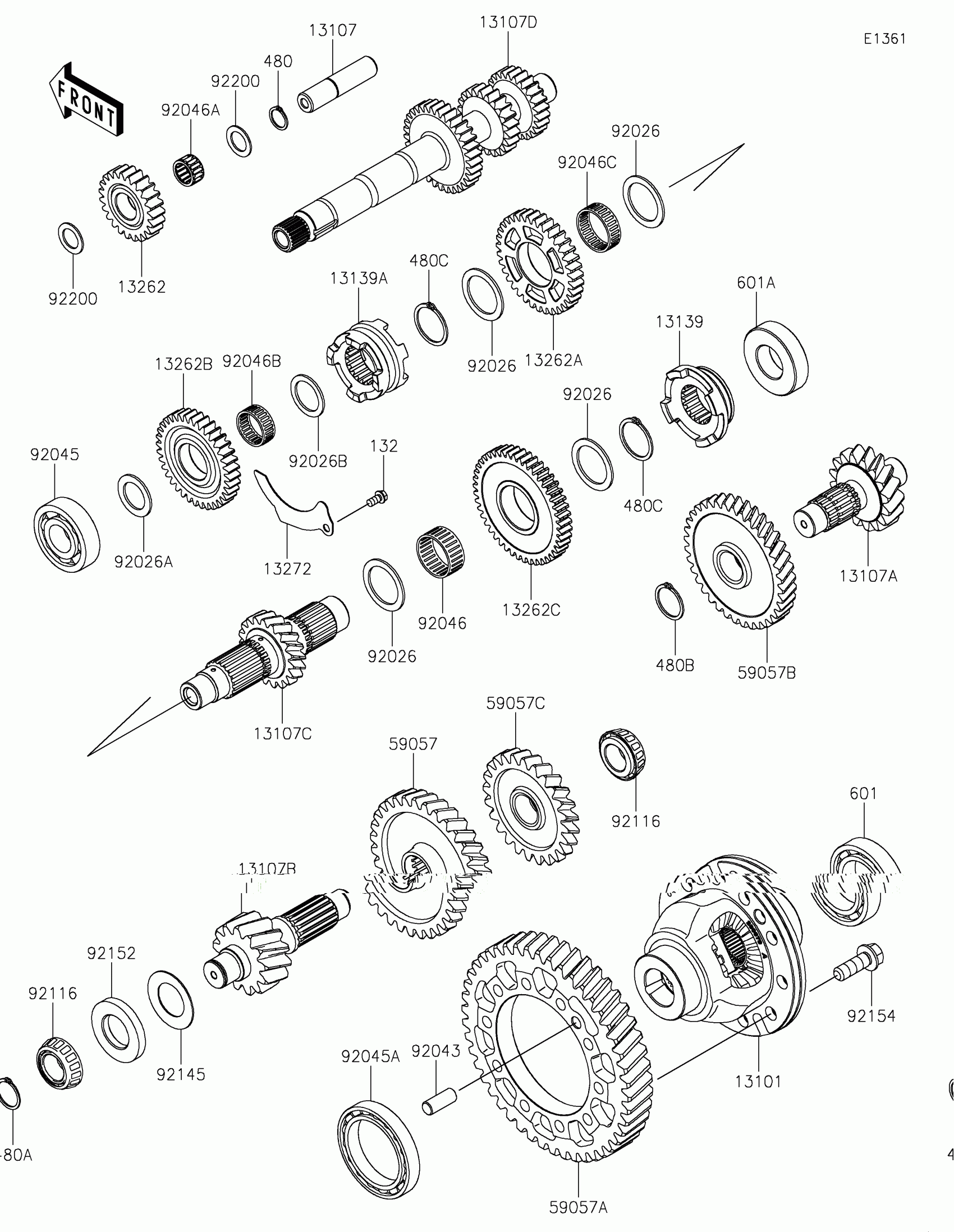

Find the part on the Transmission diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge XR Crew Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13101

GEAR-ASSY,DIFFERENTIAL

13101-0735

1
Out of stock

13107

SHAFT,REVERSE IDLER

13107-0879

1
Out of stock

13107A

SHAFT,3RD,16T

13107-0900

1
Out of stock

13107B

SHAFT,4TH,13T

13107-0967

1
Out of stock

13107C

SHAFT,2ND,19T

13107-0974

1
Out of stock

13107D

SHAFT,INPUT

13107-1556

1
Out of stock

13139

SHIFTER,LOW,19T

13139-0030

1
Out of stock

13139A

SHIFTER,HIGH&REV,19T

13139-0037

1
Out of stock

13262

GEAR,REVERSE IDLER,23T

13262-1650

1
Out of stock

13262A

GEAR,REV,35T

13262-1651

1
Out of stock

13262B

GEAR,HIGH,36T

13262-1655

1
Out of stock

13262C

GEAR,LOW,45T

13262-1676

1
Out of stock

13272

PLATE,OIL

13272-2570

1
Out of stock

59057

GEAR-HELICAL,32T

59057-0038

1
Out of stock

59057A

GEAR-HELICAL,46T

59057-0040

1
Out of stock

59057B

GEAR-HELICAL,36T

59057-0042

1
Out of stock

59057C

GEAR-HELICAL,24T

59057-0046

1
Out of stock

92026

SPACER,35.2X47X2

92026-0765

1
Out of stock

92026A

SPACER,25.2X38X2

92026-0856

1
Out of stock

92026B

SPACER,28X38X2

92026-1299

1
Out of stock

92043

PIN,DOWEL,12X30

92043-0789

1
Out of stock

92045

BEARING-BALL,6305RSH2

92045-0899

1
Out of stock

92045A

BEARING-BALL,6912

92045-0965

1
Out of stock

92046

BEARING-NEEDLE,35X40X17

92046-0611

1
Out of stock

92046A

BEARING-NEEDLE

92046-0634

1
Out of stock

92046B

BEARING-NEEDLE

92046-0635

1
Out of stock

92046C

BEARING-NEEDLE

92046-0636

1
Out of stock

92116

BEARING-ROLLER

92116-1053

1
Out of stock

92145

SPRING

92145-1837

1
Out of stock

92152

COLLAR

92152-2526

1
Out of stock

92154

BOLT,12X35

92154-4495

1
Out of stock

92200

WASHER,18.2X28X1.5

92200-0716

1
Out of stock

132

1

$1.12

In stock

480

CIRCLIP-TYPE-C,18MM

480J1800

1
Out of stock

480A

CIRCLIP-TYPE-C,25MM

480J2500

1
Out of stock

480B

CIRCLIP

480J2900

1
Out of stock

480C

CIRCLIP

480J3500

1
Out of stock

601

BEARING-BALL,6012

601A6012

1
Out of stock

601A

BEARING-BALL

601A6206

1
Out of stock
