2025 Kawasaki Ridge XR Crew Drive Converter Diagram

← All diagrams

Find the part on the Drive Converter diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

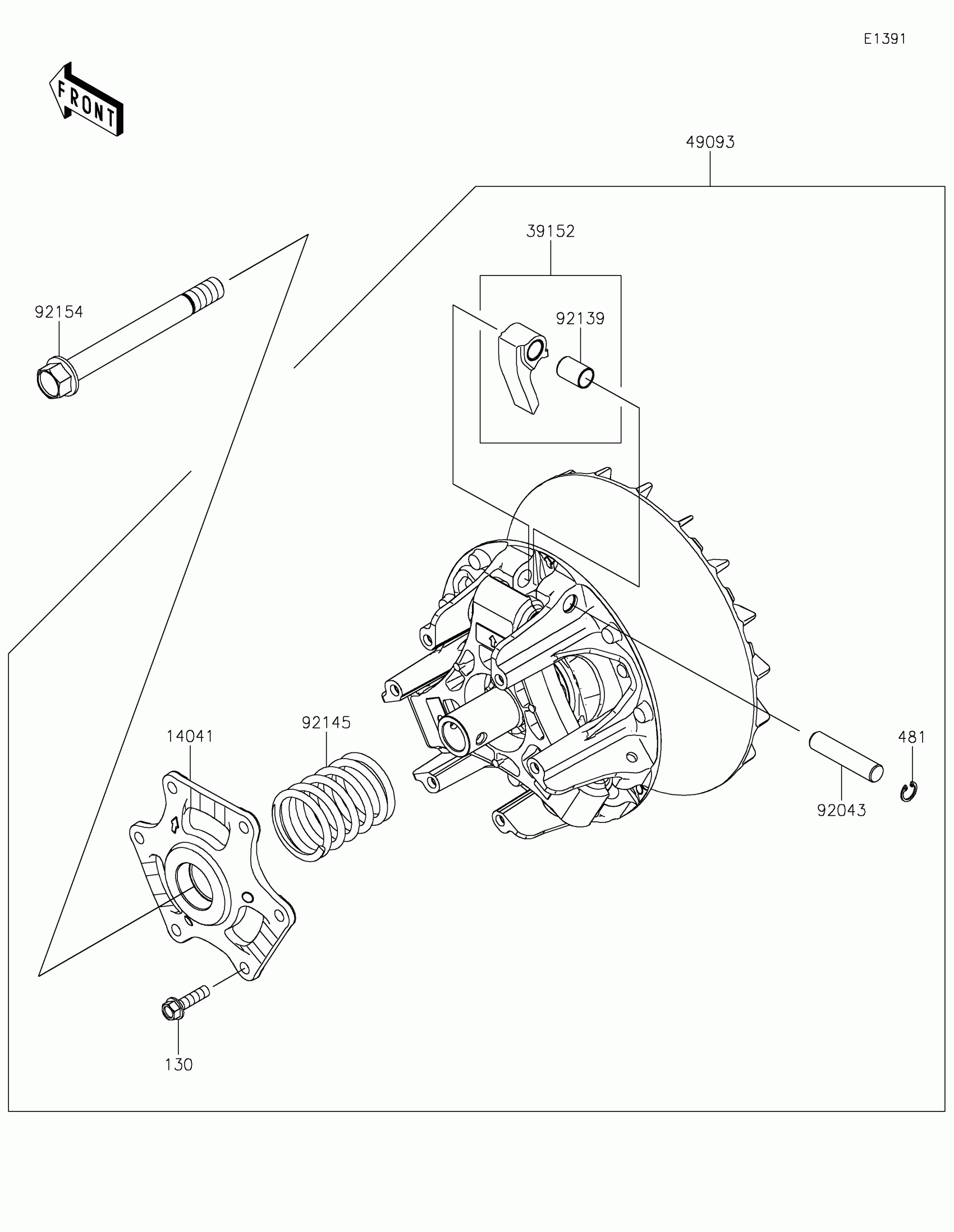

2025 Kawasaki Ridge XR Crew Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14041

COVER-COMP

14041-0652

1
Out of stock

39152

WEIGHT-RAMP

39152-0117

1
Out of stock

49093

CONVERTER-ASSY-DRIVE

49093-0126

1
Out of stock

92043

PIN

92043-1780

1
Out of stock

92139

BUSHING

92139-0933

1
Out of stock

92145

SPRING

92145-2337

1
Out of stock

92154

BOLT,16X154

92154-7044

1
Out of stock

130

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock

481

CIRCLIP-TYPE-C

481J1400

1
Out of stock
