2025 Kawasaki Ridge XR Crew Gear BOX Diagram

← All diagrams

Find the part on the Gear BOX diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

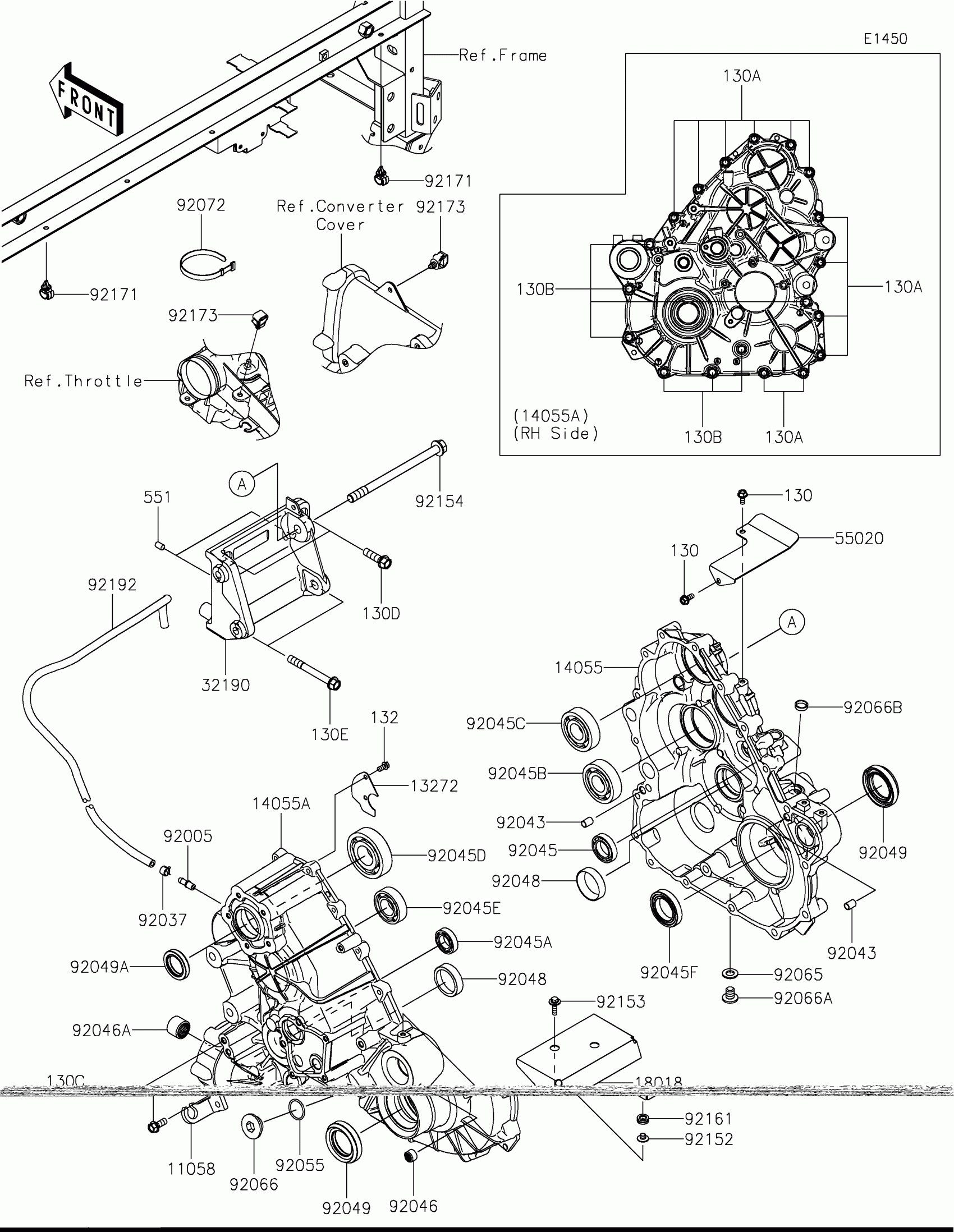

2025 Kawasaki Ridge XR Crew Gear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,CABLE

11058-0560

1
Out of stock

13272

PLATE

13272-4342

1
Out of stock

14055

CASE-GEAR,RH

14055-0675

1
Out of stock

14055A

CASE-GEAR,LH

14055-0693

1
Out of stock

18018

PLATE-HEAT GUARD

18018-0647

1
Out of stock

32190

BRACKET-ENGINE

32190-0888

1
Out of stock

55020

GUARD

55020-2426

1
Out of stock

92005

FITTING,BREATHER

92005-1127

1
Out of stock

92037

CLAMP,TUBE

92037-1505

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92045

BEARING-BALL,#6905

92045-036

1
Out of stock

92045A

BEARING-BALL,6904

92045-0705

1
Out of stock

92045B

BEARING-BALL,6305RSH2

92045-0899

1
Out of stock

92045C

BEARING-BALL,6305Z

92045-0901

1
Out of stock

92045D

BEARING-BALL,TAB306C3

92045-0961

1
Out of stock

92045E

BEARING-BALL,6205R

92045-0964

1
Out of stock

92045F

BEARING-BALL,6907C2

92045-1373

1
Out of stock

92046

BEARING-NEEDLE,HK1210FM

92046-0034

1
Out of stock

92046A

BEARING-NEEDLE

92046-0039

1
Out of stock

92048

RACE

92048-1020

1
Out of stock

92049

SEAL-OIL,TC9Y 40X62X10X17.2

92049-0815

1
Out of stock

92049A

SEAL-OIL,HTC 30X45X8

92049-0848

1
Out of stock

92055

RING-O,25.7X2.4

92055-1136

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,25X8

92066-0012

1
Out of stock

92066A

PLUG,12X15

92066-0943

1
Out of stock

92066B

PLUG

92066-7014

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92152

COLLAR,6.3X8.3X7.2

92152-1865

1
Out of stock

92153

BOLT,FLANGED,6X22

92153-0950

1
Out of stock

92154

BOLT,12X175

92154-3859

1
Out of stock

92161

DAMPER

92161-2510

1
Out of stock

92171

CLAMP,13MM DIA.

92171-1415

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92192

TUBE,5.8X10.8X1430

92192-2660

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,8X45

130BA0845

1

$1.39

In stock

130B

BOLT-FLANGED,10X55

130BA1055

1

$1.92

In stock

130C

BOLT-FLANGED,8X20

130CA0820

1

$1.47

In stock

130D

BOLT-FLANGED,10X35

130CA1035

1

$5.35

In stock

130E

BOLT-FLANGED,10X85

130CA1085

1
Out of stock

132

1

$1.12

In stock

551

PIN-DOWEL,8X12

551A0812

1
Out of stock
