2025 Kawasaki Ridge XR Crew Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

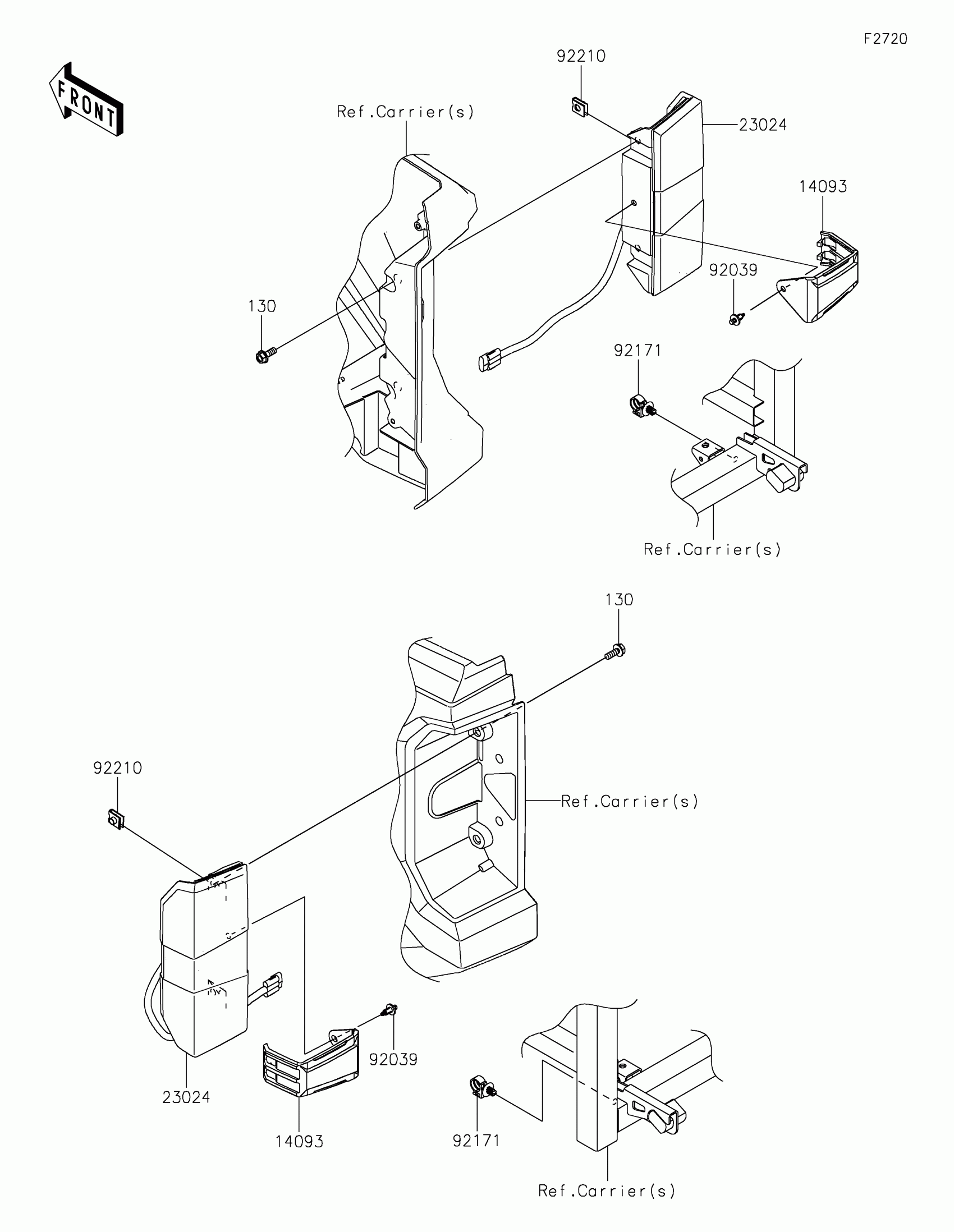

2025 Kawasaki Ridge XR Crew Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,TAIL LAMP

14093-1413

1
Out of stock

23024

LAMP-ASSY-TAIL,LED

23024-0006

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92210

NUT

92210-1125

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
