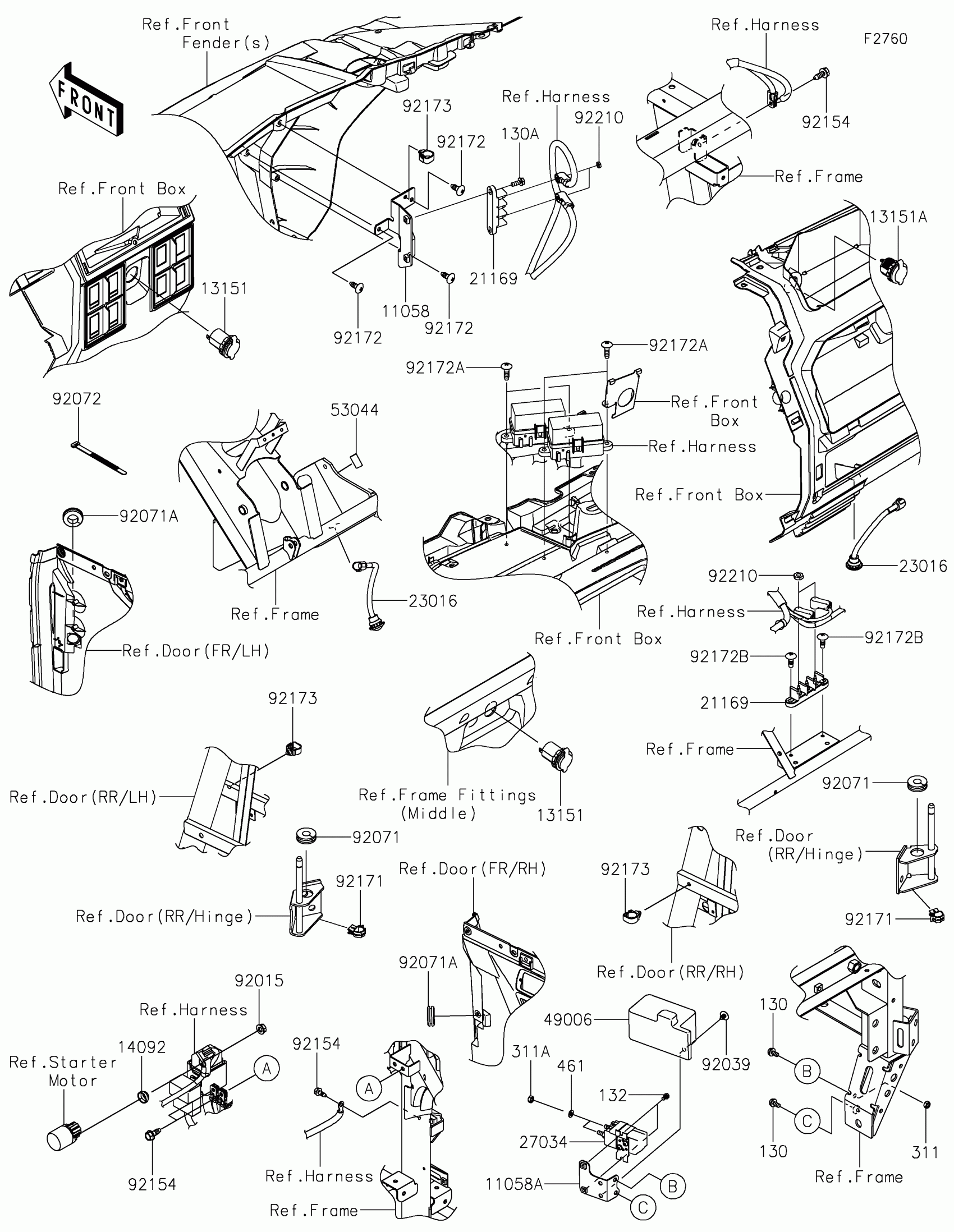

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge XR Crew Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,TERMINAL

11058-1926

1
Out of stock

11058A

BRACKET

11058-4235

1
Out of stock

13151

SWITCH-COMP,OUTLET,12V

13151-0556

1
Out of stock

13151A

SWITCH-COMP,USB-SOCKET

13151-0601

1
Out of stock

14092

COVER,MAGNETIC SW.

14092-0851

1
Out of stock

21169

TERMINAL

21169-0571

1
Out of stock

23016

LAMP-ASSY,FLOOR

23016-0671

1
Out of stock

27034

RELAY

27034-0020

1
Out of stock

49006

BOOT

49006-0679

1
Out of stock

53044

TRIM,L=22

53044-7503

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92039

RIVET

92039-0722

1
Out of stock

92071

GROMMET

92071-0029

1
Out of stock

92071A

GROMMET

92071-0847

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92171

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92172

SCREW,6X16

92172-0284

1
Out of stock

92173

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92172A

SCREW,TAPPING,6X20

92172-0488

1
Out of stock

92172B

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92210

NUT

92210-1680

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

130A

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

132

BOLT-FLANGED-SMALL,5X8

132BA0508

1
Out of stock

311

NUT-HEX,6MM

311AA0600

1
Out of stock

311A

NUT-HEX,6MM

311BA0600

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock

92173

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock
