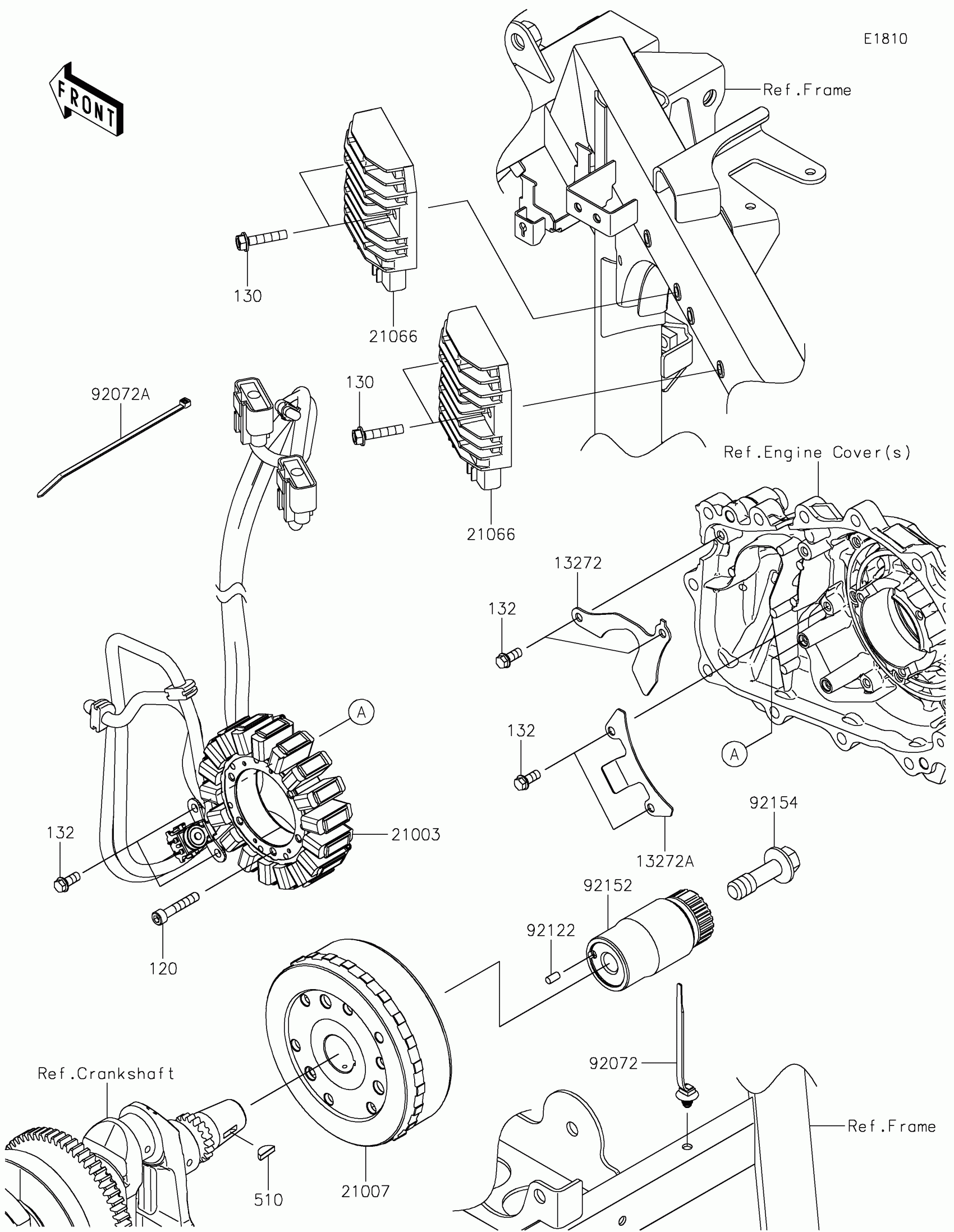

Kawasaki RIDGE XR CREW Generator Diagram

Description

Price

13272

PLATE,LEAD WIRE

13272-4122

$3.63

13272A

PLATE,LEAD WIRE

13272-4123

$2.66

21003

STATOR

21003-0223

$712.08

21007

ROTOR

21007-0731

$865.45

21066

REGULATOR-VOLTAGE

21066-0771

$312.48

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072A

BAND,L=292.1

92072-3509

Unavailable

92122

ROLLER

92122-0569

$0.78

92152

COLLAR

92152-2932

$71.89

92154

BOLT,14X45

92154-7019

$15.71

120

BOLT-SOCKET,6X35

120CA0635

$1.49

130

BOLT-FLANGED,6X30

130BA0630

$1.13

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

510

KEY-WOODRUFF

510A4200

$2.04
