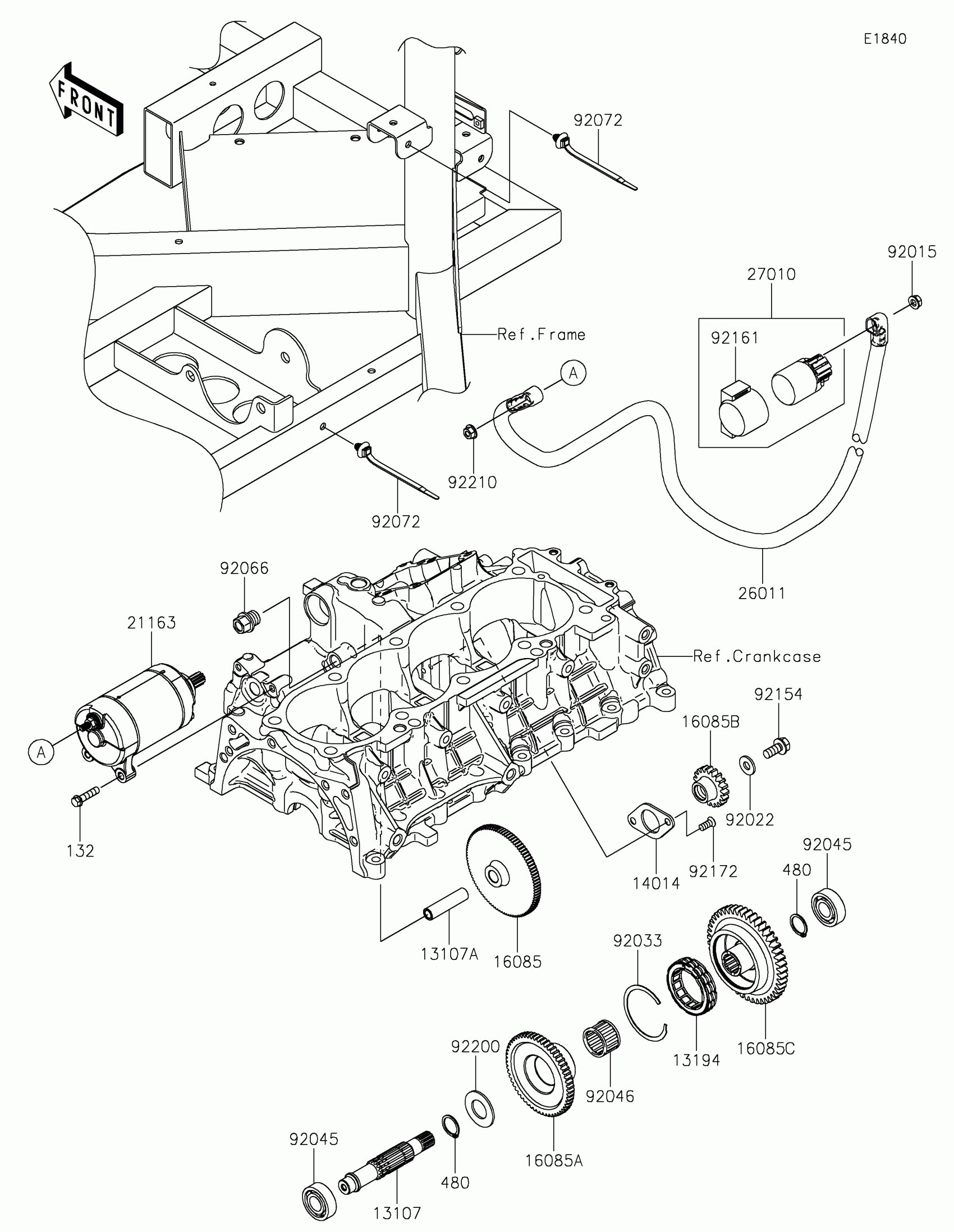

Find the part on the Starter Motor diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge XR Crew Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT

13107-0972

1
Out of stock

13107A

SHAFT,LIMITER GEAR

13107-0973

1
Out of stock

13194

CLUTCH-ONEWAY

13194-0027

1
Out of stock

14014

1

$18.17

In stock

16085

GEAR,LIMITER

16085-0731

1
Out of stock

16085A

GEAR,LIMITER

16085-0733

1
Out of stock

16085B

GEAR,PUMP-OIL

16085-0734

1
Out of stock

16085C

GEAR,CRANKSHAFT

16085-0752

1
Out of stock

21163

STARTER-ELECTRIC

21163-0806

1
Out of stock

26011

WIRE-LEAD,STARTER-ELECTRIC

26011-2418

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0766

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,8.2X19X2

92022-1533

1
Out of stock

92033

RING-SNAP

92033-3731

1
Out of stock

92045

BEARING-BALL,6202ZC3

92045-0785

1
Out of stock

92046

BEARING-NEEDLE,RS263020

92046-0004

1
Out of stock

92066

PLUG

92066-0998

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92154

BOLT-FLANGED,8X16

92154-2670

1
Out of stock

92161

1

$18.34

In stock

92172

SCREW,TORX,6X14

92172-0961

1
Out of stock

92200

WASHER,19.6X37.0X2.0

92200-2556

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock

132

1

$2.29

In stock

480

CIRCLIP-TYPE-C,19MM

480J1900

1
Out of stock
