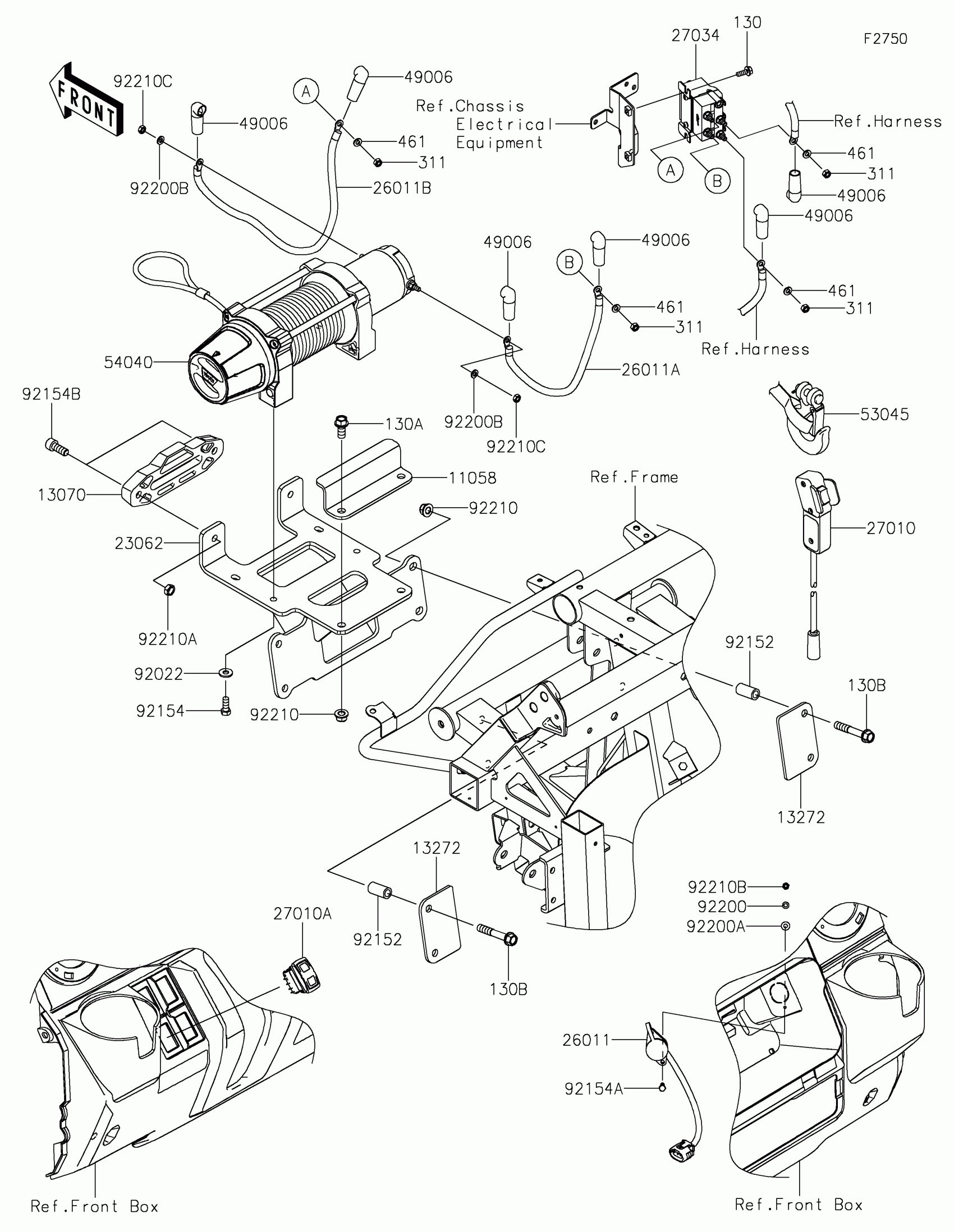

Kawasaki Ridge Limited Other(Winch) Diagram

#

Description
Price

11058

BRACKET,WINCH

11058-0260

$13.03

13070

GUIDE,FAIRLEAD

13070-1447

$144.18

13272

PLATE,WINCH

13272-4293

$10.05

23062

BRACKET-COMP,WINCH

23062-1390

$99.77

26011

WIRE-LEAD,REMOTE SWITCH

26011-0935

$117.17

26011A

WIRE-LEAD,BLUE

26011-2430

$11.40

26011B

WIRE-LEAD,YELLOW

26011-2431

$13.59

27010

SWITCH,REMOTE

27010-0820

$127.23

27010A

SWITCH

27010-0985

$37.96

27034

RELAY,CONTROLLER

27034-0018

$194.41

49006

BOOT

49006-0601

$2.64

53045

HOOK-ASSY

53045-0028

$24.79

54040

WINCH,VRX45-S

54040-0010

$699.97

92022

WASHER,8.2X19X2

92022-1533

$5.52

92152

COLLAR,10.4X15.9X31.7

92152-3803

$5.65

92154

BOLT,8X20

92154-1876

$2.66

92154A

BOLT,5X20

92154-1879

$2.90

92154B

BOLT,10X25

92154-4277

$9.67

92200

WASHER,5 LOCK

92200-1777

$1.49

92200A

WASHER

92200-1778

$1.49

92200B

WASHER,6.4X12X1.8

92200-2358

$1.49

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,LOCK,M10

92210-1432

$1.52

92210B

NUT,M5X0.80

92210-1435

$1.49

92210C

NUT,6MM

92210-1792

$2.97

130

BOLT-FLANGED,6X16

130BA0616

$1.49

130A

BOLT-FLANGED,10X22

130BA1022

$1.94

130B

BOLT-FLANGED,10X60

130BA1060

$3.63

311

NUT-HEX,6MM

311BA0600

$2.23

461

WASHER-SPRING,6MM

461DA0600

$1.49
