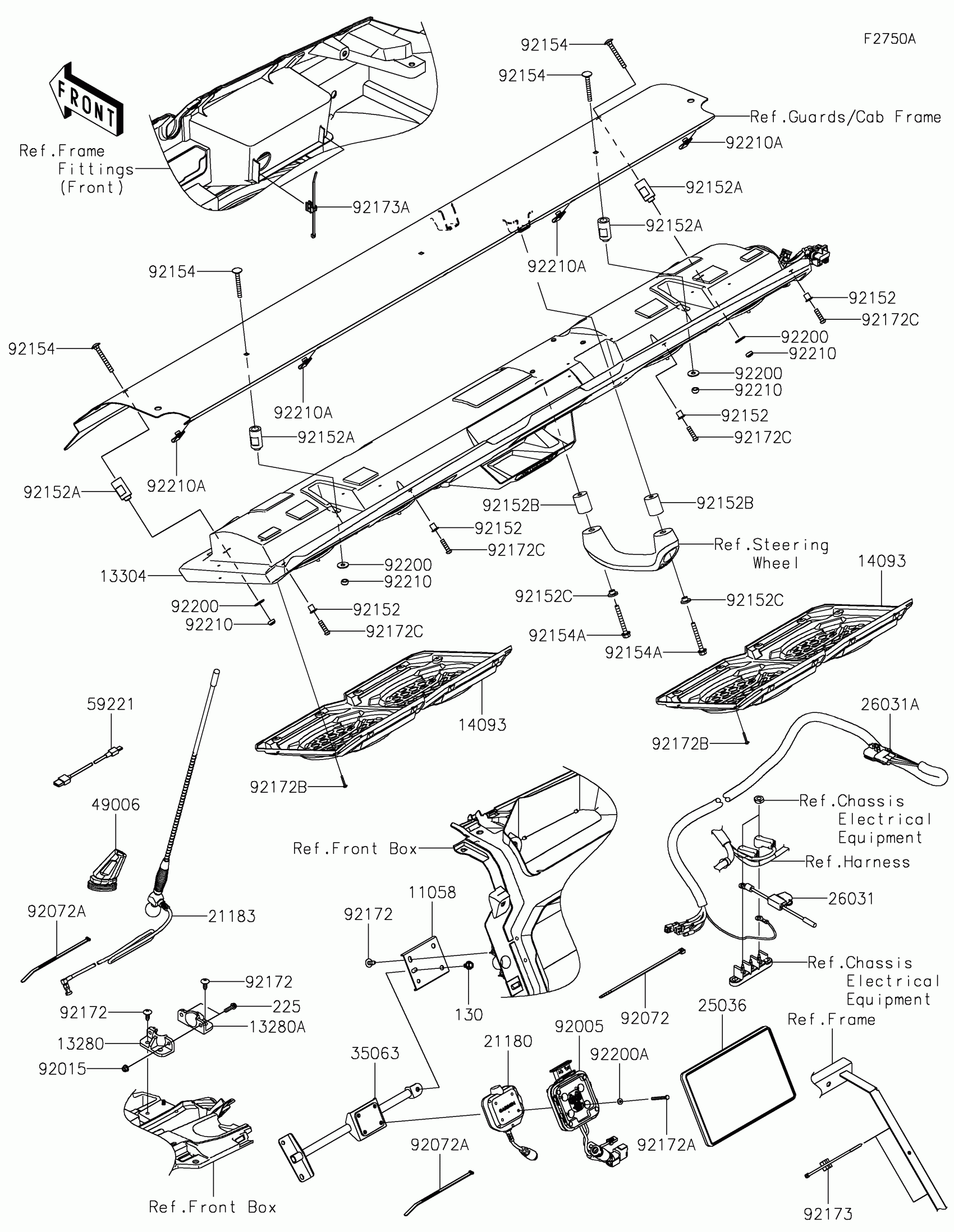

Kawasaki Ridge Limited Other(Audio System)(CA,US) Diagram

#

Description
Price

11058

BRACKET,INSTRUMENT PANEL

11058-0876

$70.19

13280

HOLDER,ANTENNA,LH

13280-1359

$4.23

13280A

HOLDER,ANTENNA,RH

13280-1360

$4.23

13304

HOUSING-ASSY

13304-0013

$1,054.60

14093

COVER,SPEAKER GRILLE

14093-1502

$52.57

21180

TRANSCEIVER,DISPLAY

21180-0006

$540.08

21183

ANTENNA,DISPLAY

21183-0020

$141.74

25036

METER-ASSY-MULTI-FUNCTION

25036-0094

$1,633.49

26031

HARNESS,AUDIO POWER

26031-4077

$7.89

26031A

HARNESS,AUDIO A-PILLAR

26031-4252

$100.90

35063

STAY,DISPLAY

35063-1595

$41.34

49006

BOOT,ANTENNA

49006-0651

$3.86

59221

CONNECTOR-CORD,USB

59221-0031

$11.29

92005

FITTING,DISPLAY

92005-1460

$332.93

92015

NUT,LOCK,FLANGED,5MM

92015-1752

$4.31

92072

BAND

92072-0821

$7.90

92072A

BAND,L=292.1

92072-3509

$2.12

92152

COLLAR

92152-2995

$8.81

92152A

COLLAR

92152-2996

$9.13

92152B

COLLAR

92152-2998

$9.02

92152C

COLLAR,7X9.5X7.5

92152-3832

$3.79

92154

BOLT

92154-7149

$3.97

92154A

BOLT

92154-7150

$5.86

92172

SCREW,6X16

92172-0284

$1.49

92172A

SCREW,4X40

92172-1092

$1.49

92172B

SCREW,SPEAKER

92172-1353

$9.73

92172C

SCREW

92172-1481

$3.23

92173

CLAMP

92173-2665

$4.66

92173A

CLAMP

92173-2793

$3.36

92200

WASHER

92200-2596

$1.49

92200A

WASHER,4X9.5X1.2

92200-2711

$31.94

92210

NUT

92210-1953

$1.62

92210A

NUT

92210-1954

$4.30

130

BOLT-FLANGED,6X10

130BA0610

$1.49

225

SCREW-PAN-WSP-CROS,5X20

225AA0520

$1.49
