2025 Kawasaki Ridge Limited Other Diagram

← All diagrams

Find the part on the Other diagram for your 2025 Kawasaki Ridge Limited, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

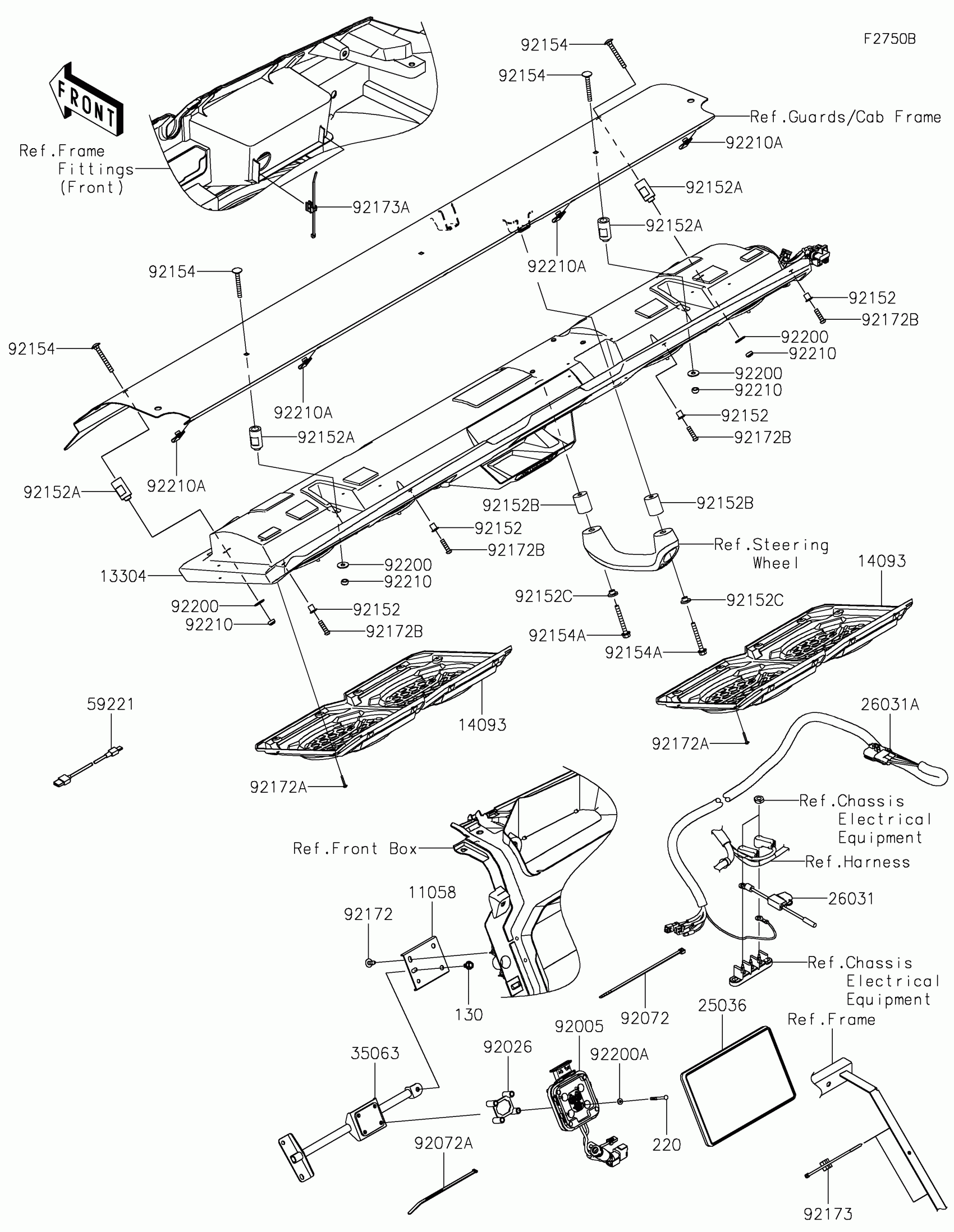

2025 Kawasaki Ridge Limited Other Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

1

$71.45

In stock

13304

HOUSING-ASSY

13304-0013

1

$1,078.94

In stock

14093

1

$53.53

In stock

25036

1

$1,673.99

In stock

26031

HARNESS,AUDIO POWER

26031-4077

1

$7.73

In stock

26031A

1

$102.75

In stock

35063

STAY,DISPLAY

35063-1595

1

$42.09

In stock

59221

CONNECTOR-CORD,USB

59221-0031

1

$10.80

In stock

92005

FITTING,DISPLAY

92005-1460

1

$339.48

In stock

92026

SPACER,DISPLAY

92026-0966

1

$33.24

In stock

92072

BAND

92072-0821

1

$7.73

In stock

92072A

BAND,L=292.1

92072-3509

1
Out of stock

92152

COLLAR

92152-2995

1

$8.54

In stock

92152A

COLLAR

92152-2996

1

$8.85

In stock

92152B

COLLAR

92152-2998

1

$8.73

In stock

92152C

COLLAR,7X9.5X7.5

92152-3832

1

$3.01

In stock

92154

BOLT

92154-7149

1

$3.47

In stock

92154A

BOLT

92154-7150

1

$5.10

In stock

92172

SCREW,6X16

92172-0284

1

$0.94

In stock

92172A

SCREW,SPEAKER

92172-1353

1

$1.34

In stock

92172B

SCREW

92172-1481

1

$2.59

In stock

92173

CLAMP

92173-2665

1

$4.14

In stock

92173A

CLAMP

92173-2793

1

$2.69

In stock

92200

WASHER

92200-2596

1

$1.27

In stock

92200A

WASHER,4X9.5X1.2

92200-2711

1

$32.53

In stock

92210

NUT

92210-1953

1

$1.41

In stock

92210A

NUT

92210-1954

1

$3.83

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

220

1

$3.24

In stock
