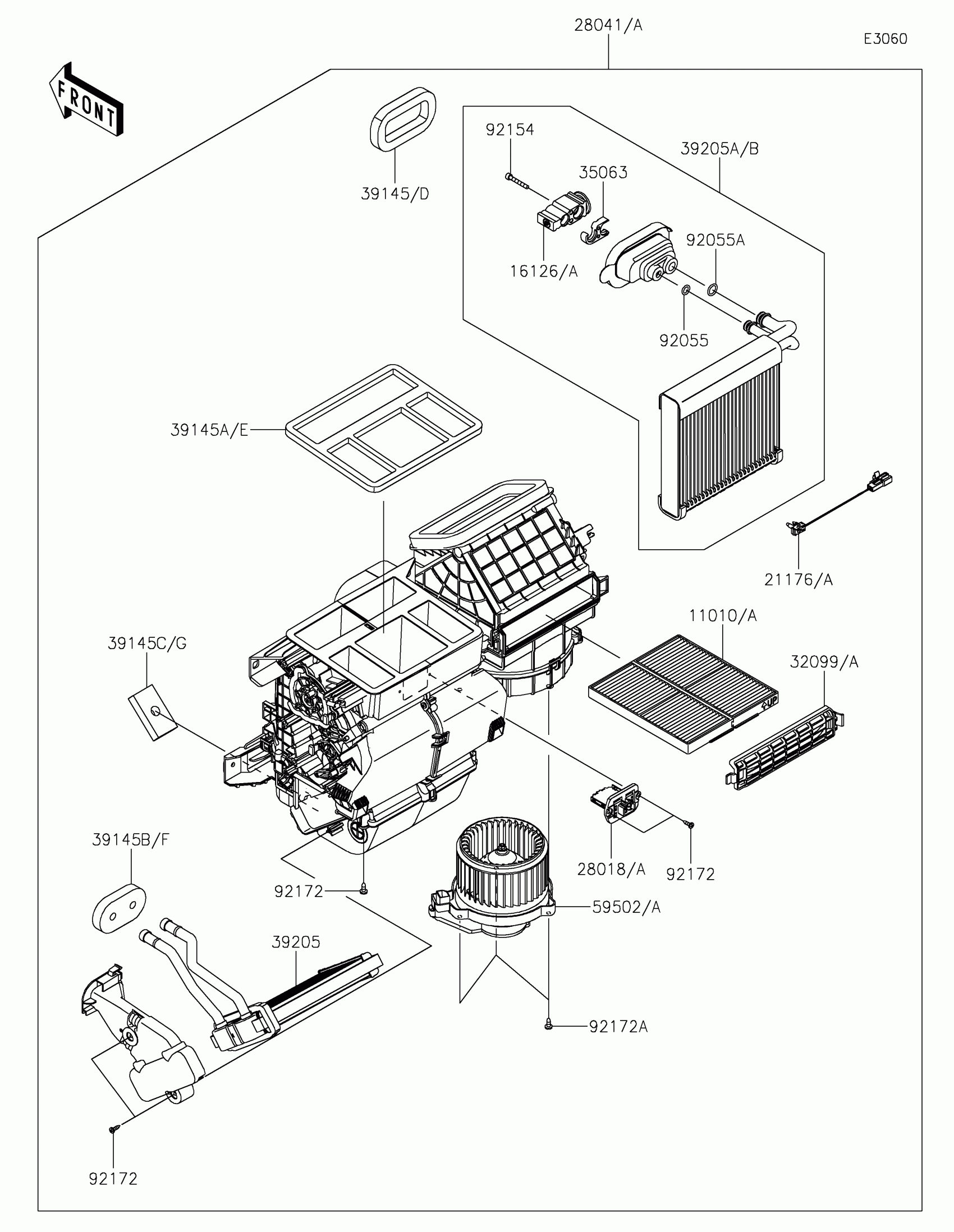

Kawasaki Ridge Limited HVAC Unit Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1854

$40.55

11010A

FILTER-ASSY-AIR,HVAC

11010-1872

$40.55

16126

VALVE

16126-0778

$341.94

16126A

VALVE

16126-0780

$341.94

21176

SENSOR

21176-1233

$112.23

21176A

SENSOR,THERMISTOR

21176-1284

$112.23

28018

RESISTOR

28018-0008

$86.41

28018A

RESISTOR

28018-0015

$86.41

28041

AC-UNIT-ASSY

28041-0001

$2,556.31

28041A

AC-UNIT-ASSY

28041-0004

$2,556.31

32099

CASE

32099-0840

$34.31

32099A

CASE,AIR FILTER

32099-0851

$34.31

35063

STAY

35063-1649

$21.12

39145

TRIM-SEAL

39145-0792

$78.19

39145A

TRIM-SEAL

39145-0793

$48.76

39145B

TRIM-SEAL

39145-0794

$9.49

39145C

TRIM-SEAL

39145-0795

$38.14

39145D

TRIM-SEAL

39145-0814

$9.42

39145E

TRIM-SEAL

39145-0815

$48.76

39145F

TRIM-SEAL

39145-0816

$9.49

39145G

TRIM-SEAL

39145-0817

$4.53

39205

HEAT EXCHANGER

39205-0004

$402.01

39205A

HEAT EXCHANGER

39205-0005

$821.51

39205B

HEAT EXCHANGER

39205-0006

$821.51

59502

FAN-ASSY

59502-0653

$1,236.41

59502A

FAN-ASSY

59502-0654

$1,236.41

92055

RING-O

92055-1773

$3.83

92055A

RING-O

92055-1774

$5.08

92154

BOLT

92154-7701

$2.47

92172

SCREW

92172-1677

$1.39

92172A

SCREW

92172-1678

$1.39
