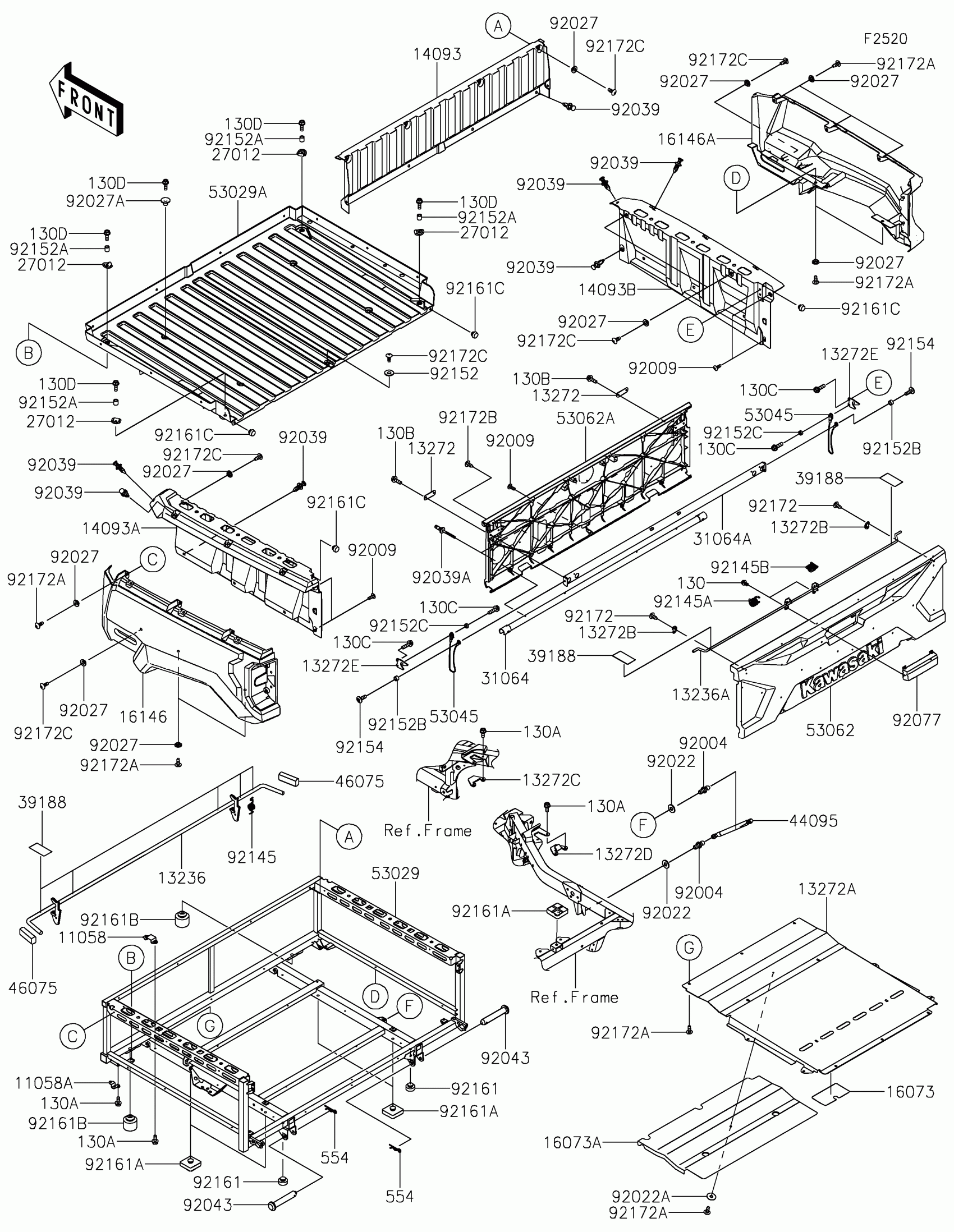

Find the part on the Carrier diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® Crew Hvac Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,CARRIER LATCH

11058-0092

1
Out of stock

11058A

BRACKET

11058-0675

1
Out of stock

13236

LEVER-COMP,CARRIER LATCH

13236-0874

1
Out of stock

13236A

LEVER-COMP

13236-0891

1
Out of stock

13272

PLATE

13272-4064

1
Out of stock

13272A

PLATE,HEAT INSULATOR

13272-4065

1
Out of stock

13272B

PLATE

13272-4178

1
Out of stock

13272C

PLATE,CARRIER LATCH,LH

13272-4185

1
Out of stock

13272D

PLATE,CARRIER LATCH,RH

13272-7017

1
Out of stock

13272E

PLATE,TAIL GATE LATCH

13272-7074

1
Out of stock

14093

COVER,FRONT CARRIER

14093-1311

1
Out of stock

14093A

COVER,SIDE CARRIER,INNER,LH

14093-1314

1
Out of stock

14093B

COVER,SIDE CARRIER,INNER,RH

14093-1315

1
Out of stock

16073

INSULATOR,HEAT,RR

16073-0962

1
Out of stock

16073A

INSULATOR,HEAT,FR

16073-0978

1
Out of stock

16146

COVER-ASSY,SIDE CARRIER,OUT,LH

16146-0922

1
Out of stock

16146A

COVER-ASSY,SIDE CARRIER,OUT,RH

16146-0923

1
Out of stock

27012

HOOK,CARRIER BOTTOM

27012-0900

1
Out of stock

31064

PIPE-COMP,TAIL GATE,LWR

31064-0745

1
Out of stock

31064A

PIPE-COMP,TAIL GATE,UPP

31064-0843

1
Out of stock

39188

TAPE,25X47X0.18

39188-0612

1
Out of stock

44095

DAMPER-GAS FILLED

44095-0002

1
Out of stock

46075

GRIP,CARRIER LATCH

46075-0672

1
Out of stock

53029

CARRIER,BASE

53029-0373

1
Out of stock

53029A

CARRIER,BOTTOM

53029-0374

1
Out of stock

53045

HOOK-ASSY,TAIL GATE

53045-0040

1
Out of stock

53062

GATE-TAIL

53062-0030

1
Out of stock

53062A

GATE-TAIL,INNER

53062-0031

1
Out of stock

92004

STUD

92004-0733

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92022

WASHER,8.2X19X2

92022-1533

1
Out of stock

92022A

WASHER,PLAIN,6.5X20X1

92022-165

1
Out of stock

92027

COLLAR,L=4.6

92027-1168

1
Out of stock

92027A

COLLAR

92027-1767

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92039A

RIVET,6.35X17.9

92039-0856

1
Out of stock

92043

PIN,12.4X72.4

92043-0716

1
Out of stock

92077

KNOB,TAIL GATE

92077-0041

1
Out of stock

92145

SPRING

92145-2268

1
Out of stock

92145A

SPRING

92145-2443

1
Out of stock

92145B

SPRING

92145-2444

1
Out of stock

92152

COLLAR,6.8X20X4.6

92152-2432

1
Out of stock

92152A

COLLAR,6.2X9.5X9.8

92152-2917

1
Out of stock

92152B

COLLAR,6.2X9.5X6

92152-2918

1
Out of stock

92152C

COLLAR,6.2X9.5X3.5

92152-3860

1
Out of stock

92154

BOLT,SOCKET,6X18

92154-1026

1
Out of stock

92161

DAMPER,10X20X8

92161-0855

1
Out of stock

92161A

DAMPER,10X34X10

92161-1920

1

$1.39

In stock

92161B

DAMPER

92161-2505

1
Out of stock

92161C

DAMPER

92161-2524

1
Out of stock

92172

SCREW,6X16

92172-0284

1
Out of stock

92172A

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92172B

SCREW,TAPPING,6X16

92172-1470

1
Out of stock

92172C

SCREW,TAPPING,6X16

92172-1471

1
Out of stock

130

BOLT-FLANGED,5X10

130BA0510

1

$1.47

In stock

130A

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130B

BOLT-FLANGED,6X18

130BB0618

1

$1.54

In stock

130C

BOLT-FLANGED,6X22

130BB0622

1

$2.92

In stock

130D

BOLT-FLANGED,6X18

130CB0618

1
Out of stock

554

PIN-SNAP,12MM

554DA1200

1
Out of stock
