2025 Kawasaki Ridge® Crew Hvac Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

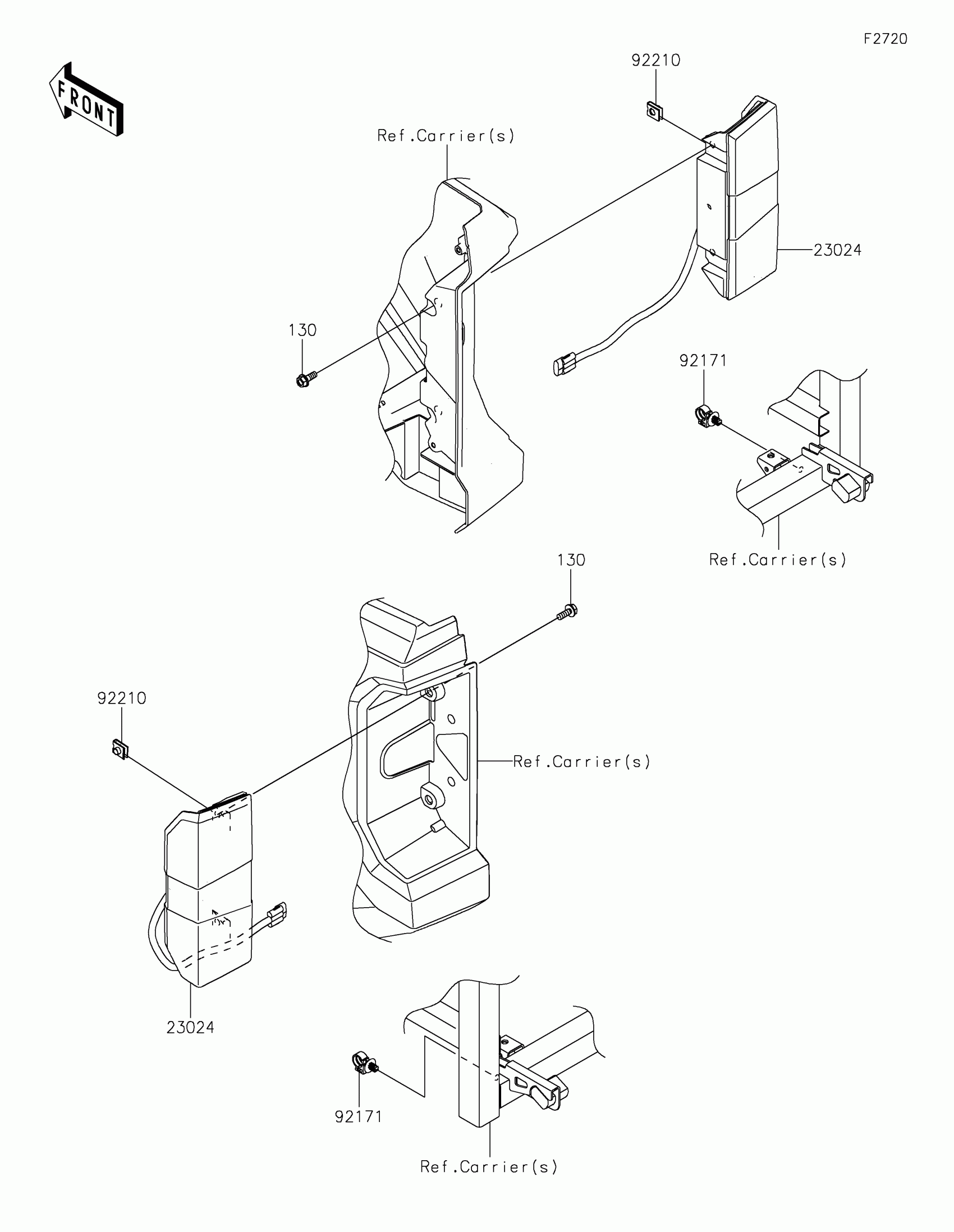

2025 Kawasaki Ridge® Crew Hvac Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23024

LAMP-ASSY-TAIL,LED

23024-0006

1
Out of stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92210

NUT

92210-1125

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
