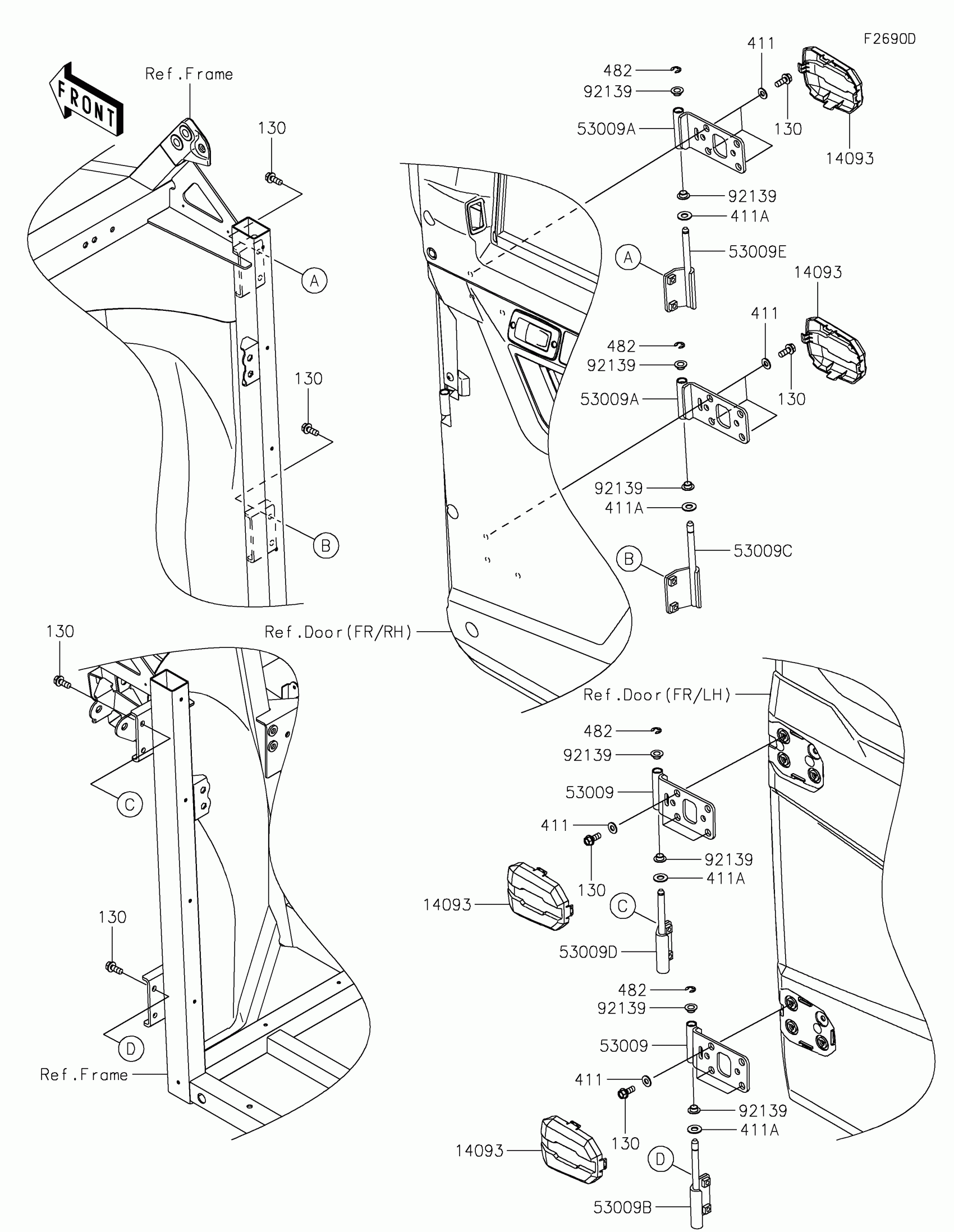

Kawasaki RIDGE® CREW HVAC Door(FR/Hinge) Diagram

Description

Price

14093

COVER,DOOR HINGE

14093-1320

$2.71

53009

HINGE,DOOR,LH

53009-0313

$21.97

53009A

HINGE,DOOR,RH

53009-0314

$21.97

53009B

HINGE,DOOR,LH,LWR

53009-0315

$25.14

53009C

HINGE,DOOR,RH,LWR

53009-0316

$25.14

53009D

HINGE,DOOR,LH,UPP

53009-0317

$24.42

53009E

HINGE,DOOR,RH,UPP

53009-0318

$24.42

92139

BUSHING

92139-0230

$4.10

130

BOLT-FLANGED,8X20

130BA0820

$3.04

411

WASHER-PLAIN,8MM

411AA0800

Unavailable

411A

WASHER-PLAIN,10MM,BLACK

411AB1000

$3.68

482

CIRCLIP-TYPE-E,8MM

482EB8000

$1.66
