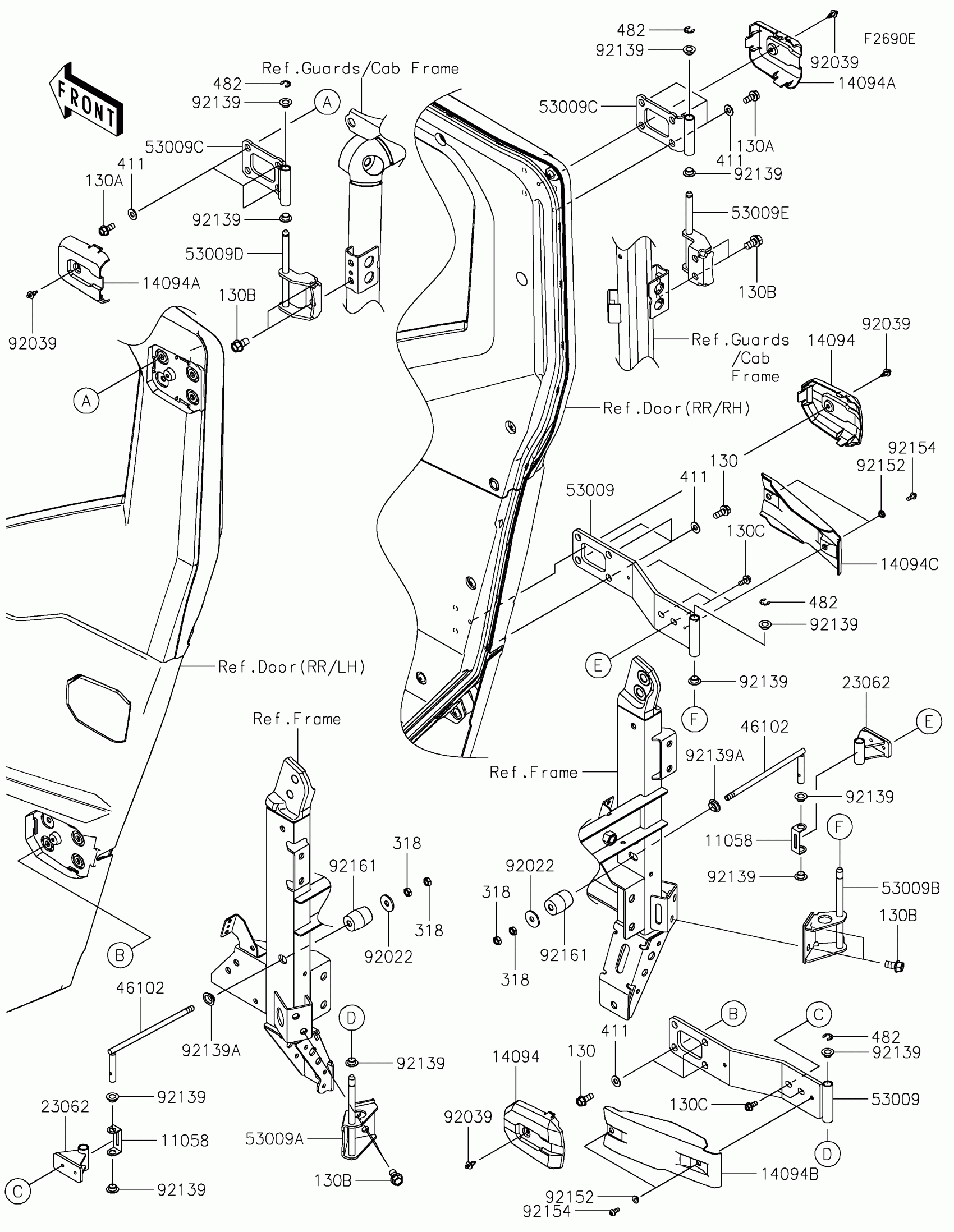

Kawasaki RIDGE® CREW HVAC Door(RR/Hinge) Diagram

#

Description
Price

11058

BRACKET,STOPPER

11058-4217

$1.58

14094

COVER,RR DOOR,LWR

14094-0217

$12.14

14094A

COVER,RR DOOR,UPP

14094-0224

$11.54

14094B

COVER,RR DOOR,HINGE ARM,LH

14094-0227

$14.63

14094C

COVER,RR DOOR,HINGE ARM,RH

14094-0228

$14.63

23062

BRACKET-COMP,STOPPER

23062-1554

$86.01

46102

ROD,RR DOOR STOPPER

46102-0692

$52.35

53009

HINGE,RR DOOR,LWR

53009-0328

$48.62

53009A

HINGE,RR DOOR,LWR,LH

53009-0329

$23.61

53009B

HINGE,RR DOOR,LWR,RH

53009-0330

$23.61

53009C

HINGE,RR DOOR,UPP

53009-0332

Unavailable

53009D

HINGE,RR DOOR,UPP,LH

53009-0348

$21.46

53009E

HINGE,RR DOOR,UPP,RH

53009-0349

$21.46

92022

WASHER,9X28X2.3

92022-1632

$3.92

92039

RIVET

92039-0068

$2.09

92139

BUSHING

92139-0230

$4.10

92139A

BUSHING

92139-1289

$1.66

92152

COLLAR

92152-2899

$3.49

92154

BOLT,SOCKET,5X12

92154-0917

$3.59

92161

DAMPER

92161-2643

$8.15

130

BOLT-FLANGED,8X20

130BA0820

$3.04

130A

BOLT-FLANGED,8X18

130BB0818

$1.27

130B

BOLT-FLANGED

130BB1018

$2.27

130C

BOLT-FLANGED,6X14

130CA0614

$3.14

318

NUT-HEX-SMALL,8MM

318AA0800

$0.54

411

WASHER-PLAIN,8MM

411AA0800

Unavailable

482

CIRCLIP-TYPE-E,8MM

482EB8000

$1.66
