1976 Suzuki RE5 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

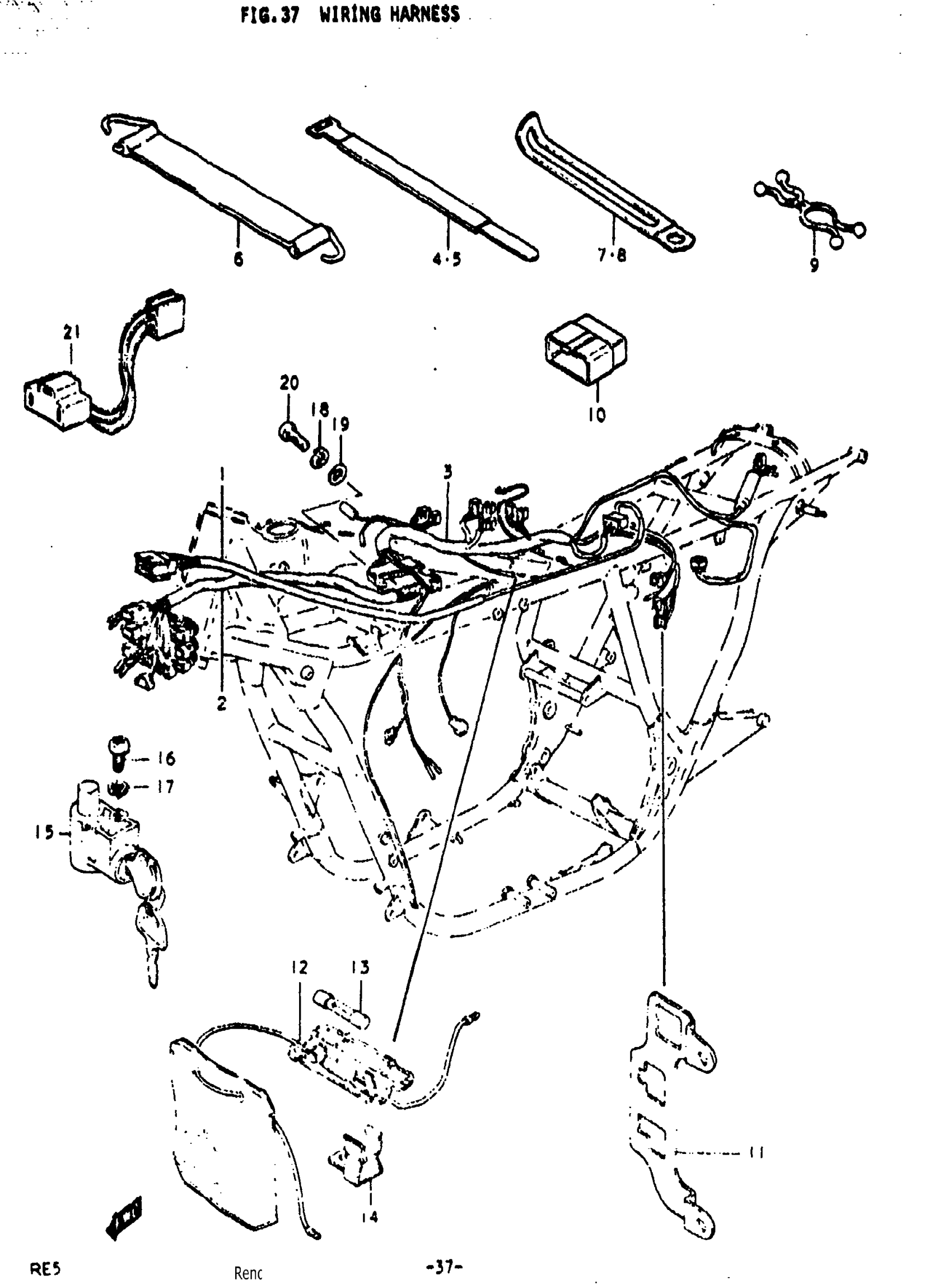

1976 Suzuki RE5 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS (A) | M,A; FROM 36610-37000

36610-37001

—
Out of stock

2

WIRING HARNESS (B) | M,A; FROM 36620-37001

36620-37002

—
Out of stock

2

WIRING HARNESS (B) | M,A

36620-37990

1
Out of stock

3

WIRING HARNESS (C) | M,A; FROM 36630-37001

36630-37002

—
Out of stock

4

CLAMP | M,A This part replaces 09407-18301.

09407-18302

13
Out of stock

5

CLAMP | M,A This part replaces 09407-11302.

09407-18302

2
Out of stock

6

BAND | M,A

09462-00056

1
Out of stock

7

CLAMP | M,A This part replaces 09404-08405.

09404-08420

1
Out of stock

8

CLAMP | M,A This part replaces 09404-06402.

09404-06039

1
Out of stock

9

CLAMP | M,A

09408-00013

1
Out of stock

10

COVER, COUPLER | A

36691-37990

—
Out of stock

11

PLATE, COUPLER HOLDAR (C) | M,A; FROM 36683-37000

36683-37001

—
Out of stock

12

FUSE CASE ASSY | M,A; FROM 36740-31210; Includes Item(s) 13 This part replaces 36740-31211.

36740-31212

1
Out of stock

13

FUSE | M,A; 20A

09481-20001

1
Out of stock

14

HOLDER, FUSE CASE | M,A

36791-25001

1
Out of stock

15

LOCK ASSY, STEERING | M,A This part replaces 51900-33810.

51900-33811

1
Out of stock

16

SCREW | M,A This part replaces 02111-05257.

02112-05257

2
Out of stock

17

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

2
Out of stock

18

1

$2.28

In stock

19

.WASHER | M,A This part replaces 08322-11068.

08322-0106B

1
Out of stock

20

SCREW | M,A This part replaces 02112-06258.

02112-06257

1
Out of stock

21

LEAD WIRE, HEADLAMP | M,A; WITH 36620-37001 This part replaces 36852-34000.

36853-30500

1
Out of stock
