1976 Suzuki RE5 Counterweight Cover Diagram

← All diagrams

Find the part on the Counterweight Cover diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

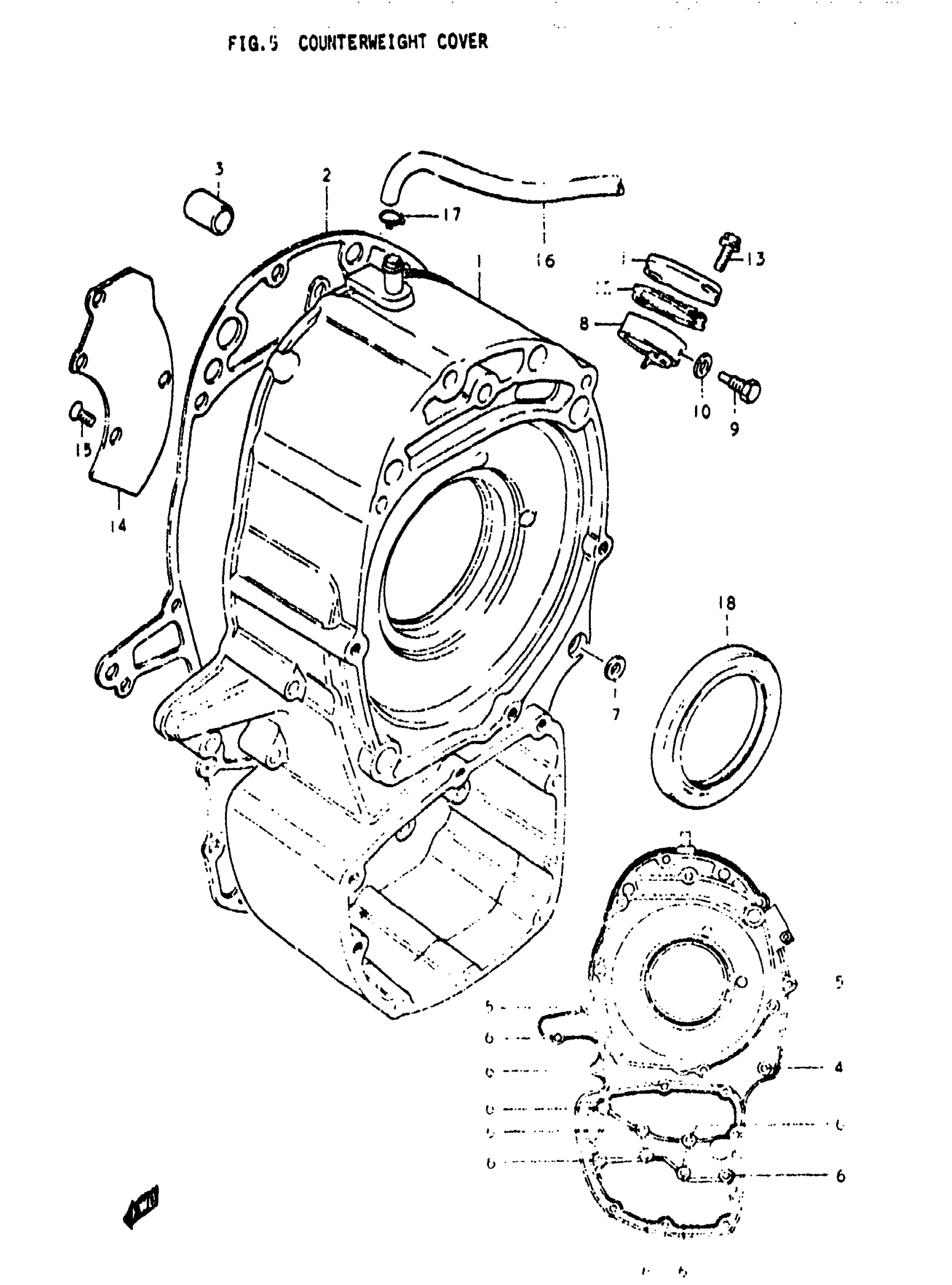

1976 Suzuki RE5 Counterweight Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, COUNTERWEIGHT | M,A

11330-37000

—
Out of stock

2

GASKET | M,A

11485-37000

—
Out of stock

3

PIN | M,A This part replaces 09206-13001.

04211-13189

2
Out of stock

4

BOLT | M,A; 6x75

09106-06013

—
Out of stock

5

BOLT | M,A; 6x55 This part replaces 09106-06010.

07130-0655B

2
Out of stock

6

BOLT | M,A; 6x30 This part replaces 09106-06005.

07130-06307

9
Out of stock

7

WASHER | M,A

09164-06006

12
Out of stock

8

INDICATOR, TIMING | M,A

12751-37000

1
Out of stock

9

BOLT | M,A; 6x50

09135-06009

1
Out of stock

10

WASHER | M,A This part replaces 08322-21068.

08322-01067

1
Out of stock

11

CAP, TIMING INSPOCTION | M,A

12758-37000

—
Out of stock

12

GASKET | M,A

12759-37000

1
Out of stock

13

BOLT | M,A This part replaces 01511-06128.

01550-06127

2
Out of stock

14

PLATE, OIL GUIDE | M,A; FROM 12521-37000

12521-37001

—
Out of stock

15

SCREW | M,A This part replaces 02121-05108.

02122-05107

4
Out of stock

16

HOSE(7X10.2X200 | M,A This part replaces 09343-07020.

09352-70104-00B

1
Out of stock

17

CLIP | M,A

09401-10401

2
Out of stock

18

OIL SEAL | M,A

09283-60001

1
Out of stock
