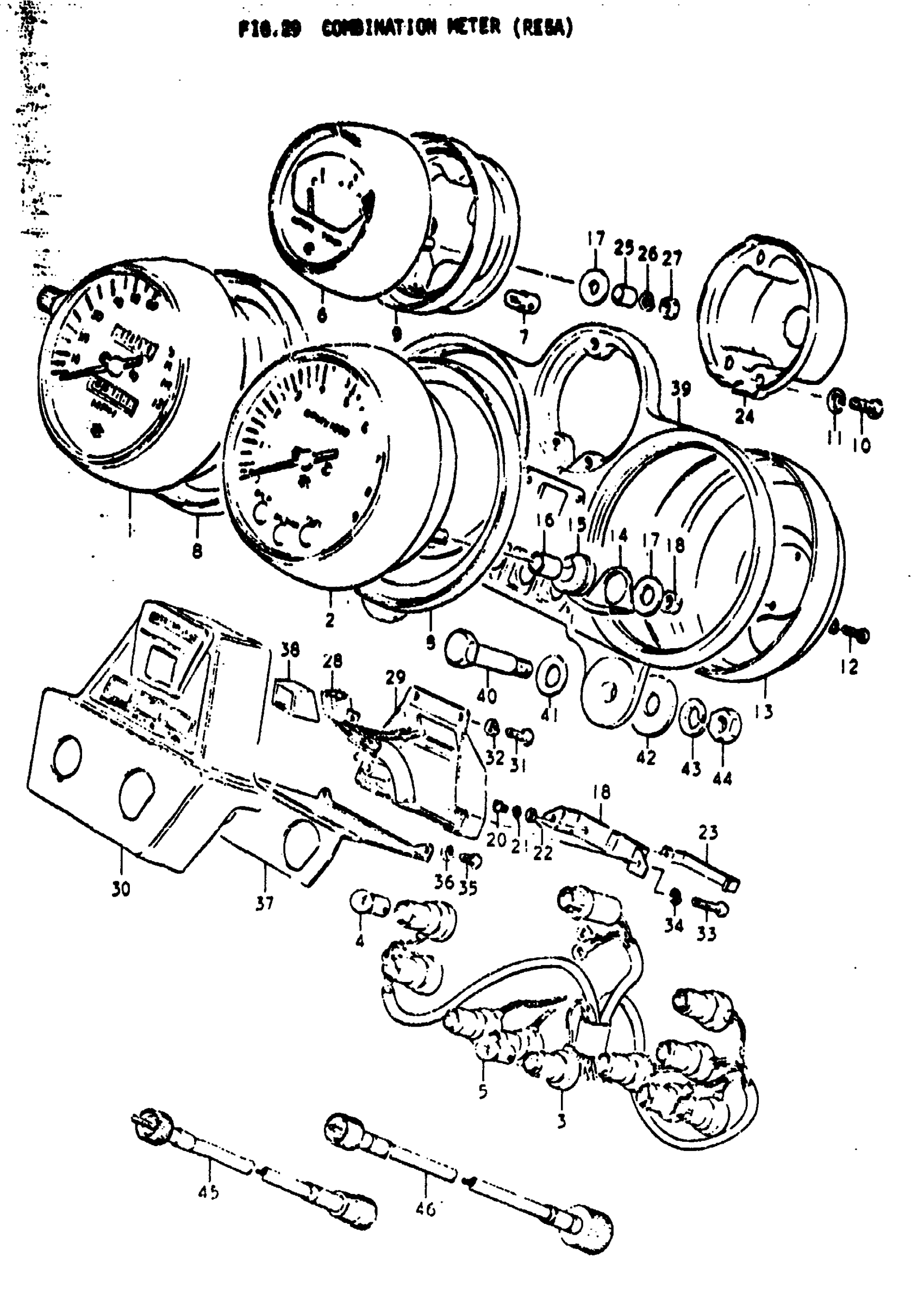

Find the part on the Combination Meter diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki RE5 Combination Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

COMBINATION METER ASSY | Includes Item(s) 1 - 39

34100-37990

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 34110-37990.

34101-37990

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 34210-37990.

34201-37990

1
Out of stock

3

SOCKET

34170-37990

—
Out of stock

4

BULB | 12V, 3.4W

09471-12001

9

$2.08

In stock

5

BULB, TURN SIGNAL INDICATOR | 12V, 1.7W

09471-12004

1
Out of stock

6

THERMOMETER

34401-37990

—
Out of stock

7

BULB | 12V, 2W

09471-12023

1
Out of stock

8

CUSHION

34181-31000

2
Out of stock

9

CUSHION

34481-31000

1
Out of stock

10

SCREW This part replaces 02111-05127.

02112-05127

3
Out of stock

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

3
Out of stock

12

SCREW This part replaces 02111-03108.

02112-03107

4
Out of stock

13

PLATE, UNDER

34960-31012

2
Out of stock

14

BRACKET

34951-31012

4
Out of stock

15

CUSHION

34282-31000

4
Out of stock

16

SPACER

34972-31012

4
Out of stock

17

WASHER (5.5X16X1.2) | 5.5X16X1.2 This part replaces 09160-05017.

09160-05043

6
Out of stock

18

NUT This part replaces 08311-11058.

08310-00057

4
Out of stock

19

BRACKET, COUPLER

34983-37990

1
Out of stock

20

SCREW This part replaces 02111-03067.

02112-0306B

1
Out of stock

21

WASHER,LOCK This part replaces 08321-21038.

09162-03001

1
Out of stock

22

WASHER This part replaces 08322-21038.

08322-01037

1
Out of stock

23

BRACKET, COUPLER

34982-37990

1
Out of stock

24

PLATE, UNDER

34970-31000

1
Out of stock

25

SPACER, THERMOMETER

34491-31000

2
Out of stock

26

LOCK WASHER This part replaces 08321-21048.

08321-0104A

2
Out of stock

27

NUT This part replaces 08311-11048.

08310-00047

2
Out of stock

28

NO DESCRIPTION AVAILABLE This part replaces 34890-31211.

36450-47040

1
Out of stock

29

PLATE

34981-37990

1
Out of stock

30

CASE, PILOT BULB

34980-31212

1
Out of stock

31

2

$1.33

In stock

32

LOCK WASHER This part replaces 08321-21048.

08321-0104A

2
Out of stock

33

SCREW

02111-04258

—
Out of stock

34

LOCK WASHER This part replaces 08321-21048.

08321-0104A

2
Out of stock

35

2

$1.67

In stock

36

LOCK WASHER This part replaces 08321-21048.

08321-0104A

2
Out of stock

37

BRACKET

34982-31920

1
Out of stock

38

COVER, INDICATOR

34161-31210

1
Out of stock

39

BRACKET, METER

34950-31210

1
Out of stock

40

BOLT

09111-08028

2
Out of stock

41

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock

42

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

1
Out of stock

43

2

$2.28

In stock

44

2

$1.93

In stock

45

CABLE,SPEEDOMET This part replaces 34910-18130.

34910-18991

1
Out of stock

46

CABLE, TACHOMETER

34940-37030

1
Out of stock
