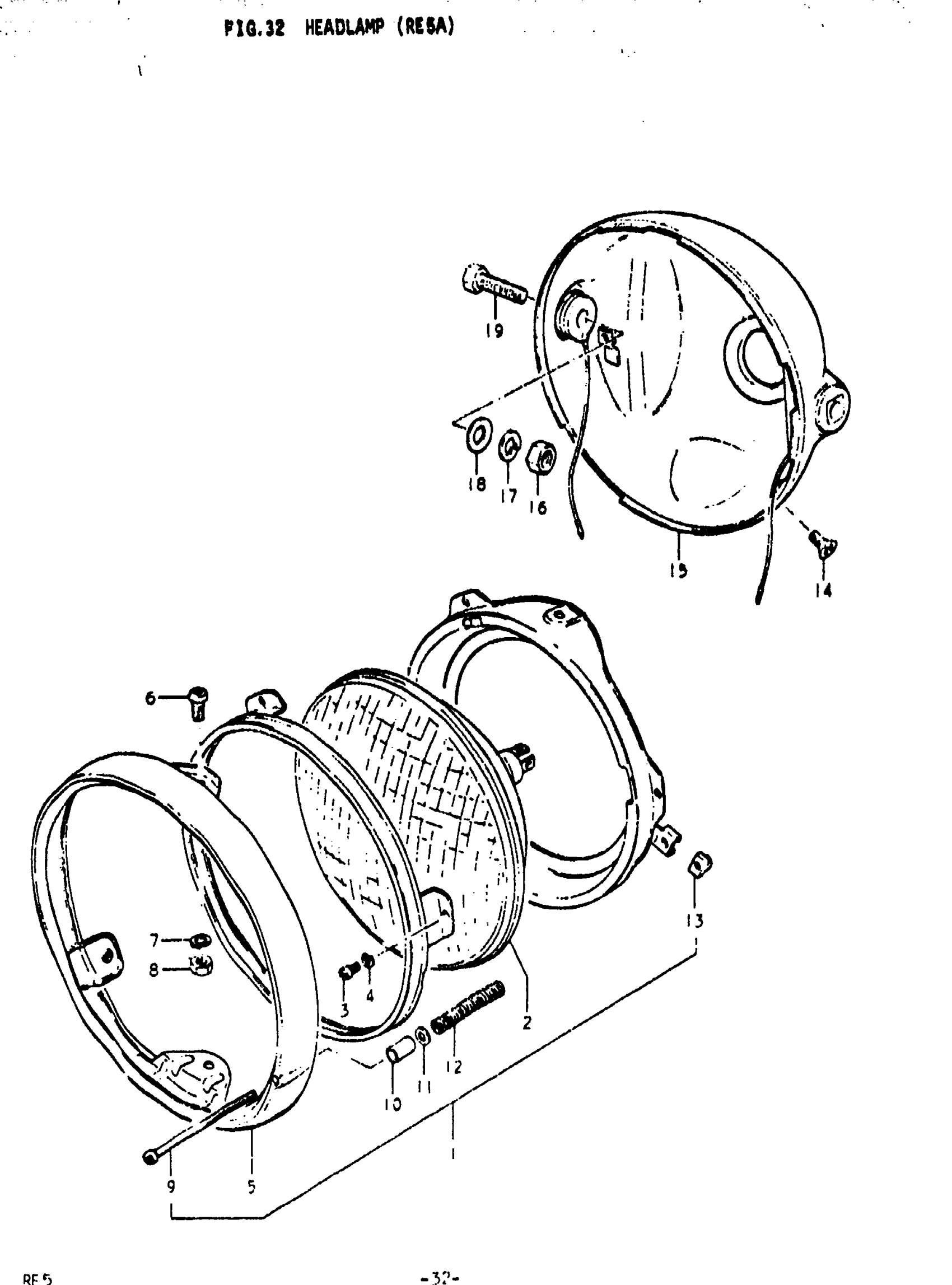

Find the part on the Headlamp diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki RE5 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 13

35100-34610

1
Out of stock

2

UNIT

35121-31610

1
Out of stock

3

3

$1.20

In stock

4

3

$2.00

In stock

5

RIM

35111-34030

1
Out of stock

6

SCREW

02112-05107

2

$1.52

In stock

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

8

2

$1.97

In stock

9

SCREW

35151-31610

1
Out of stock

10

SPACER

35165-31610

1
Out of stock

11

1

$2.03

In stock

12

SPRING

35154-31610

1
Out of stock

13

NUT

35152-15611

1

$3.67

In stock

14

2

$1.75

In stock

15

HOUSING, HEAD LAMP

51810-34130

1
Out of stock

16

2

$2.35

In stock

17

2

$1.93

In stock

18

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock

19

2

$2.23

In stock
