1973 Yamaha RD60 (RD60) Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

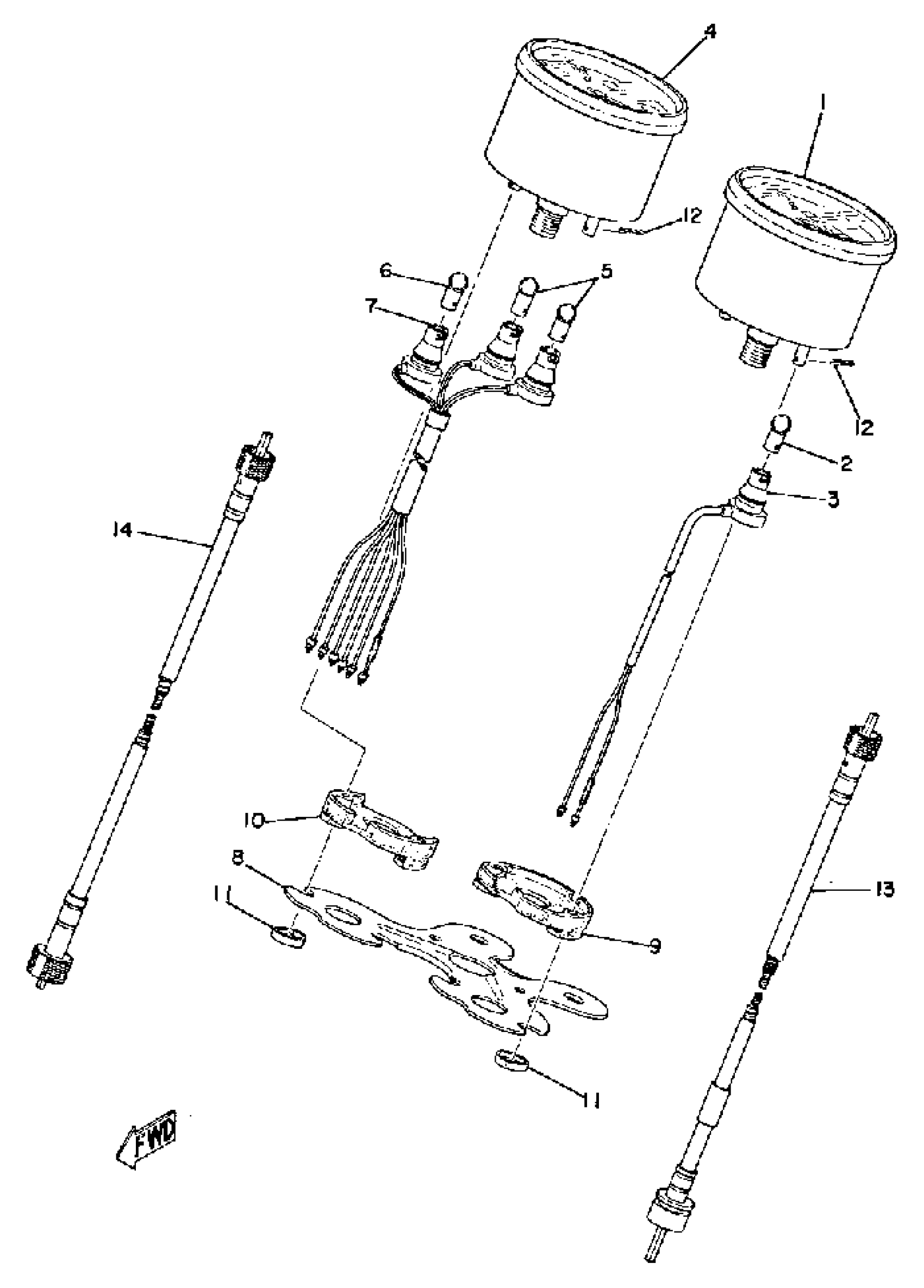

1973 Yamaha RD60 (RD60) Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(388-83510-30-00)

1
Out of stock

1

SPEEDOMETER ASSEMBLY

(388-83510-32-00)

1
Out of stock

2

BULB (6V 1.7W)

388-83517-10-00

1

$4.74

In stock

3

SOCKET, METER

(277-83536-00-00)

1
Out of stock

3

SOCKET, METER

(481-83536-00-00)

1
Out of stock

4

TACHOMETER ASSEMBLY

(388-83540-00-00)

1
Out of stock

4

TACHOMETER ASSEMBLY

(388-83540-02-00)

1
Out of stock

5

BULB,(6V3W)

122-83516-10-00

1
Out of stock

6

BULB (6V 1.7W)

388-83517-10-00

1

$4.74

In stock

7

SOCKET CORD ASSEMBLY

(252-83520-01-00)

1
Out of stock

7

SOCKET CORD ASSEMBLY

(388-83520-01-00)

1
Out of stock

8

BRACKET, METER

(353-83519-00-33)

1
Out of stock

9

DAMPER

214-83523-00-00

1
Out of stock

10

DAMPER

237-83523-00-00

1

$8.70

In stock

11

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

12

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

13

SPEEDOMETER CABLE ASSY

241-83550-03-00

—

$12.02

In stock

13

SPEEDOMETER CABLE

(353-83550-00-00)

1
Out of stock

14

TACHOMETER CABLE

1GU-83560-02-00

1
Out of stock

14

TACHOMETER CABLE

353-83560-01-00

1
Out of stock
