1973 Yamaha RD60 (RD60) Head Lamp Diagram

← All diagrams

Find the part on the Head Lamp diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

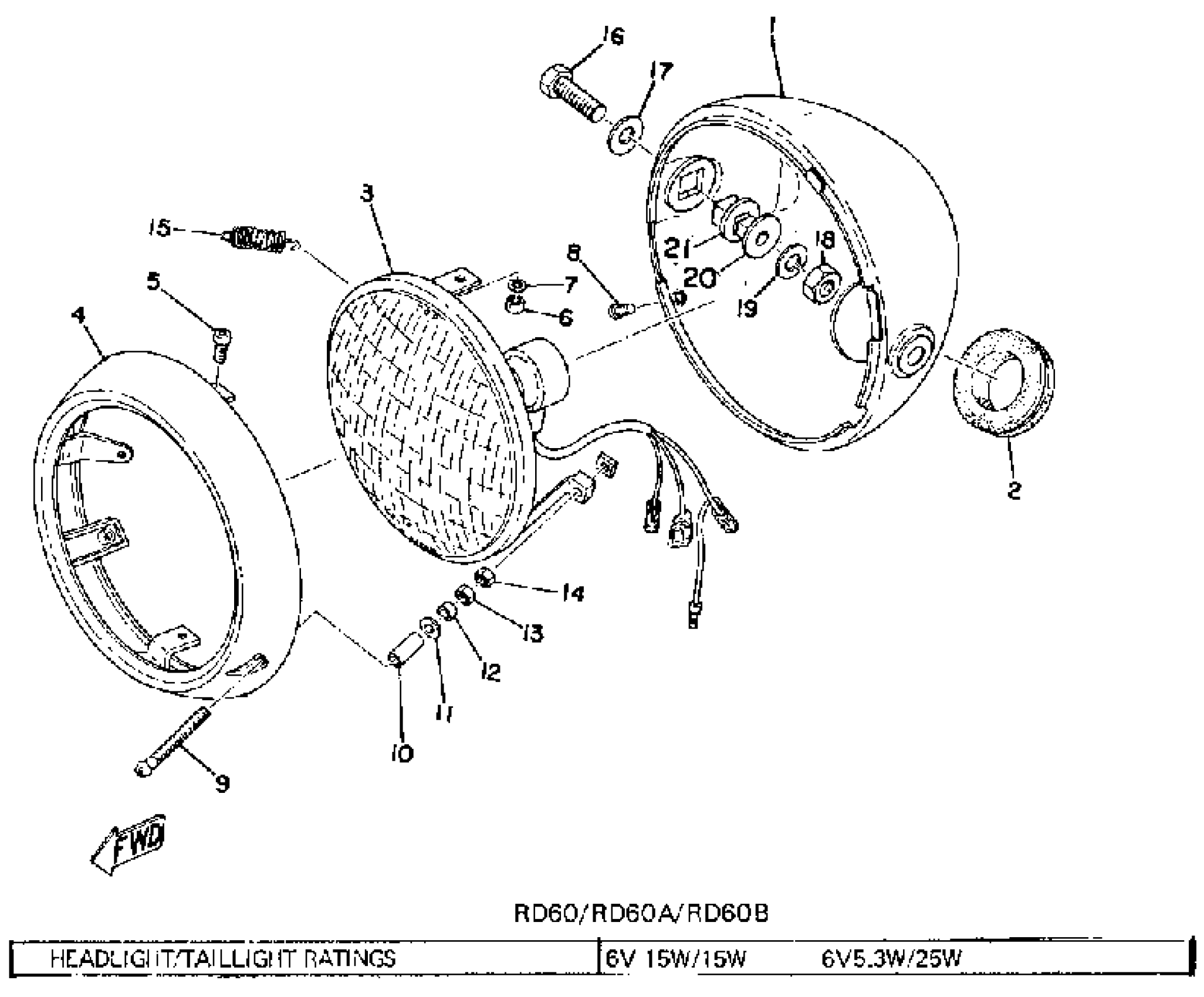

1973 Yamaha RD60 (RD60) Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

(388-84130-60-66)

1
Out of stock

1

BODY ASSEMBLY, HEADLIGHT

(388-84130-60-F2)

1
Out of stock

1

BODY ASSEMBLY, HEADLIGHT

(388-84130-60-K7)

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

. LENS ASSEMBLY

338-84120-60-00

1
Out of stock

4

. RIM, HEADLIGHT

261-84315-61-00

1
Out of stock

5

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

6

NUT(6TA)

95307-04600-00

1

$6.69

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

9

SCREW, RIM ADJUSTING

(198-84331-60-00)

1
Out of stock

10

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

11

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

12

. SPACER

132-84328-60-00

1
Out of stock

13

NUT(6TA)

95307-04600-00

1

$6.69

In stock

14

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

15

SPRING

(132-84335-60-00)

1
Out of stock

16

BOLT (682)

97013-08025-00

—

$6.80

In stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

NUT(6L2)

95333-08600-00

—

$3.20

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

COLLAR, BODY FTNG

214-84145-60-00

1
Out of stock

21

DAMPER, HDLT STAY

(214-84143-60-00)

1
Out of stock
