1973 Yamaha RD60 (RD60) Electrical Diagram

← All diagrams

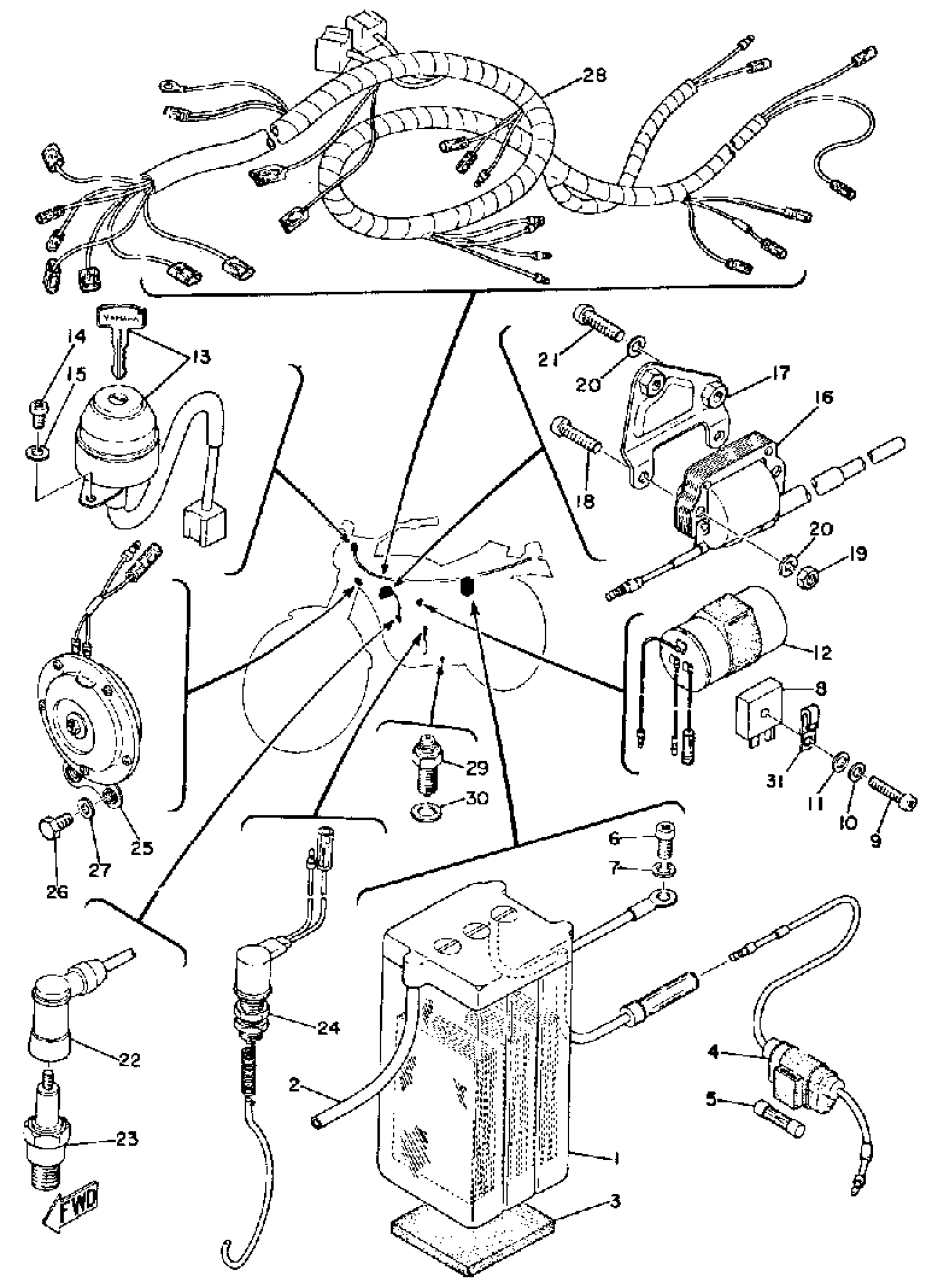

Find the part on the Electrical diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha RD60 (RD60) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

6N4A4D YUASA BATTERY

6N4-A4DY0-00-00

1
Out of stock

2

HOSE (L1500)

90445-084J0-00

1

$16.40

In stock

3

DAMPER, TANK LOCATING

583-24182-00-00

1

$8.65

In stock

4

FUSE HOLDER ASSY

55K-82150-02-00

1

$30.99

In stock

5

FUSE

1A0-82151-00-00

1
Out of stock

6

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

RECTIFIER ASSY

353-81970-M2-00

—
Out of stock

9

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

12

FLASHER RELAY ASSEMBLY

368-83350-61-00

1
Out of stock

13

MAIN SWITCH ASSEMBLY

(388-82508-20-00)

1
Out of stock

13

MAIN SWITCH ASSEMBLY

(388-82508-22-00)

1
Out of stock

14

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

16

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

17

BRACKET, IGNITION COIL

336-82316-01-00

1
Out of stock

18

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

22

PLUG CAP ASSY

56J-82370-00-00

—

$56.63

In stock

23

B7HS NGK 4PK

B7H-S0000-00-00

1

$4.95

In stock

24

STOP SWITCH ASSEMBLY

353-82530-03-00

1
Out of stock

25

HORN

2A7-83371-10-00

1
Out of stock

26

BOLT (661)

97013-06012-00

—

$4.71

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WIRE HARNESS ASSEMBLY

(388-82590-20-00)

1
Out of stock

28

WIRE HARNESS ASSEMBLY

(388-82590-21-00)

1
Out of stock

29

NEUTRAL SWITCH ASSY

4GY-82540-10-00

—
Out of stock

30

GASKET

296-82543-00-00

—

$4.40

In stock

31

CLAMP(4MX)

90465-06376-00

—

$7.08

In stock
