1979 Yamaha RD400 (RD400F) Front Fork Diagram

← All diagrams

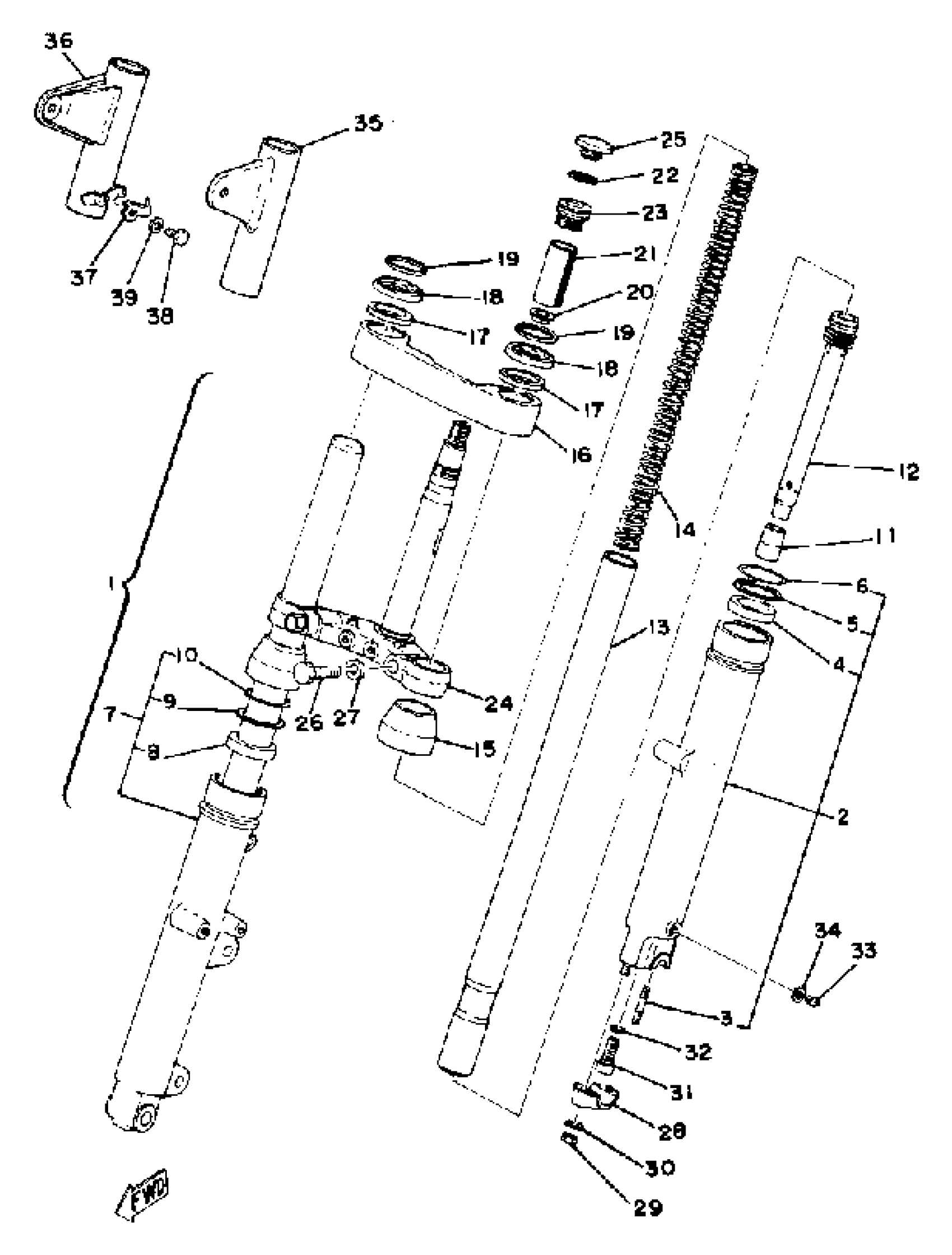

Find the part on the Front Fork diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha RD400 (RD400F) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(2V0-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(2R8-23126-00-38)

1
Out of stock

3

BOLT, STUD (278)

90116-08261-00

1
Out of stock

4

OIL SEAL

1T3-23145-00-00

1

$14.25

In stock

5

WASHER, OIL SEAL

341-23146-50-00

1

$8.72

In stock

6

CLIP, OIL SEAL

341-23156-50-00

1

$29.03

In stock

7

TUBE, OUTER 2

(2R8-23136-00-38)

1
Out of stock

8

OIL SEAL

1T3-23145-00-00

1

$14.25

In stock

9

WASHER, OIL SEAL

341-23146-50-00

1

$8.72

In stock

10

CLIP, OIL SEAL

341-23156-50-00

1

$29.03

In stock

11

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

12

CYLINDER, FRTFRK

(2R8-23170-00-00)

1
Out of stock

13

. INNER TUBE 1

2R8-23110-00-00

1
Out of stock

14

. SPRING, FRONT FORK

2J2-23141-00-00

1
Out of stock

15

SEAL, DUST

1T3-23144-50-00

—

$26.14

In stock

16

COVER, OUTER 1

(2R8-23122-00-00)

1
Out of stock

17

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

18

. GUIDE, COVER LOWER

2R8-23116-00-00

1
Out of stock

19

GUIDE, COVER UPPER

(2R8-23115-00-00)

1
Out of stock

20

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

21

SPACER

(1U6-23118-M0-00)

1
Out of stock

22

GASKET

240-23114-00-00

—

$12.27

In stock

23

CAP BOLT, FRONT FORK

1U6-23111-M1-00

—

$21.02

In stock

24

UNDER BRACKET

(2V0-23340-00-33)

1
Out of stock

25

CAP, FRONT FORK

1U6-23168-M1-00

—

$7.62

In stock

26

. BOLT 1

306-23346-60-00

1
Out of stock

27

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

28

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

1
Out of stock

29

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

30

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

32

GASKET

509-23158-L0-00

—

$14.34

In stock

33

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

34

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

35

COVER, UPPER 1

2V0-23121-00-33

1
Out of stock

36

COVER, UPPER 2

2V0-23131-00-33

1
Out of stock

37

STAY, LIGHT GUARD

1A0-23164-00-00

1
Out of stock

38

BOLT (661)

97013-06012-00

—

$4.71

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
