1979 Yamaha RD400 (RD400F) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

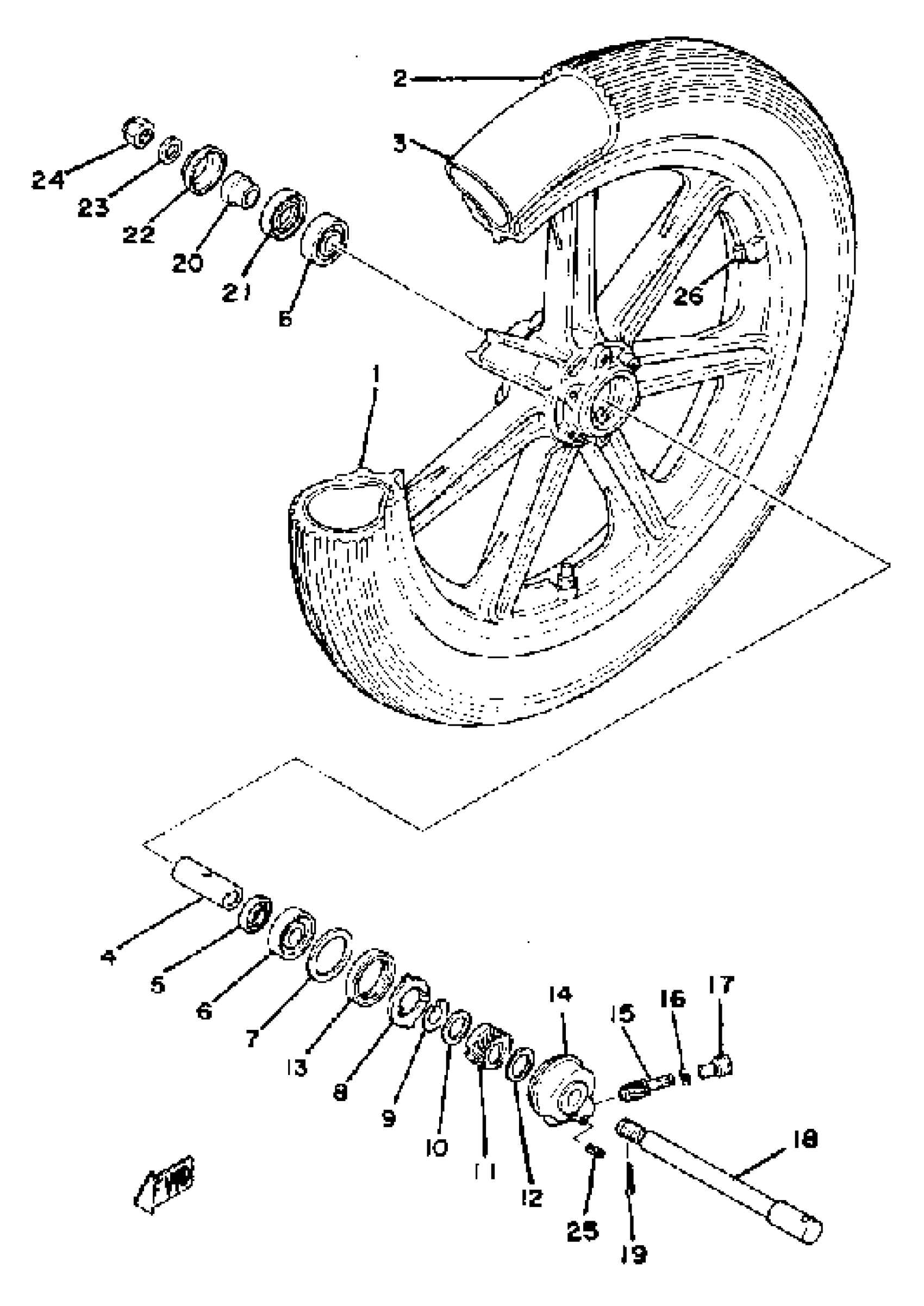

1979 Yamaha RD400 (RD400F) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, CAST FRONT

(2V0-25168-00-98)

1
Out of stock

2

325S18Y Y990 4PLY

(94132-18381-00)

1
Out of stock

3

TUBE (5H5)

94227-18195-00

1
Out of stock

4

SPACER (1L9)

90560-15161-00

—

$8.12

In stock

5

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

6

BEARING

93306-30212-00

1

$33.35

In stock

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

1
Out of stock

8

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

9

RING, STOP

341-25137-00-00

1
Out of stock

10

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

11

GEAR, DRIVE

(2A2-25135-00-00)

1
Out of stock

12

WASHER PLATE 152172260000

90201-25490-00

1
Out of stock

13

OIL SEAL (45X56X6)

93105-45017-00

1
Out of stock

14

GEAR UNIT ASY

31A-25190-10-00

1
Out of stock

15

GEAR, METER

(2A2-25138-00-00)

1
Out of stock

16

SHIM, ROD

102-18416-00-00

1
Out of stock

17

BUSH

306-25136-00-00

1
Out of stock

18

AXLE, WHEEL

1L9-25181-00-00

1
Out of stock

19

PIN, COTTER

91490-30030-00

—

$7.15

In stock

20

COLLAR (1L9)

90387-15550-00

—
Out of stock

21

OIL SEAL (22X42X7)

93102-22014-00

—

$10.68

In stock

22

COVER, DUST

401-25367-00-00

—

$7.66

In stock

23

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

24

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

25

PIN, SPRING (V60)

91609-20014-00

—

$1.78

In stock

26

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock

26

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock

26

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock
