1979 Yamaha RD400 (RD400F) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

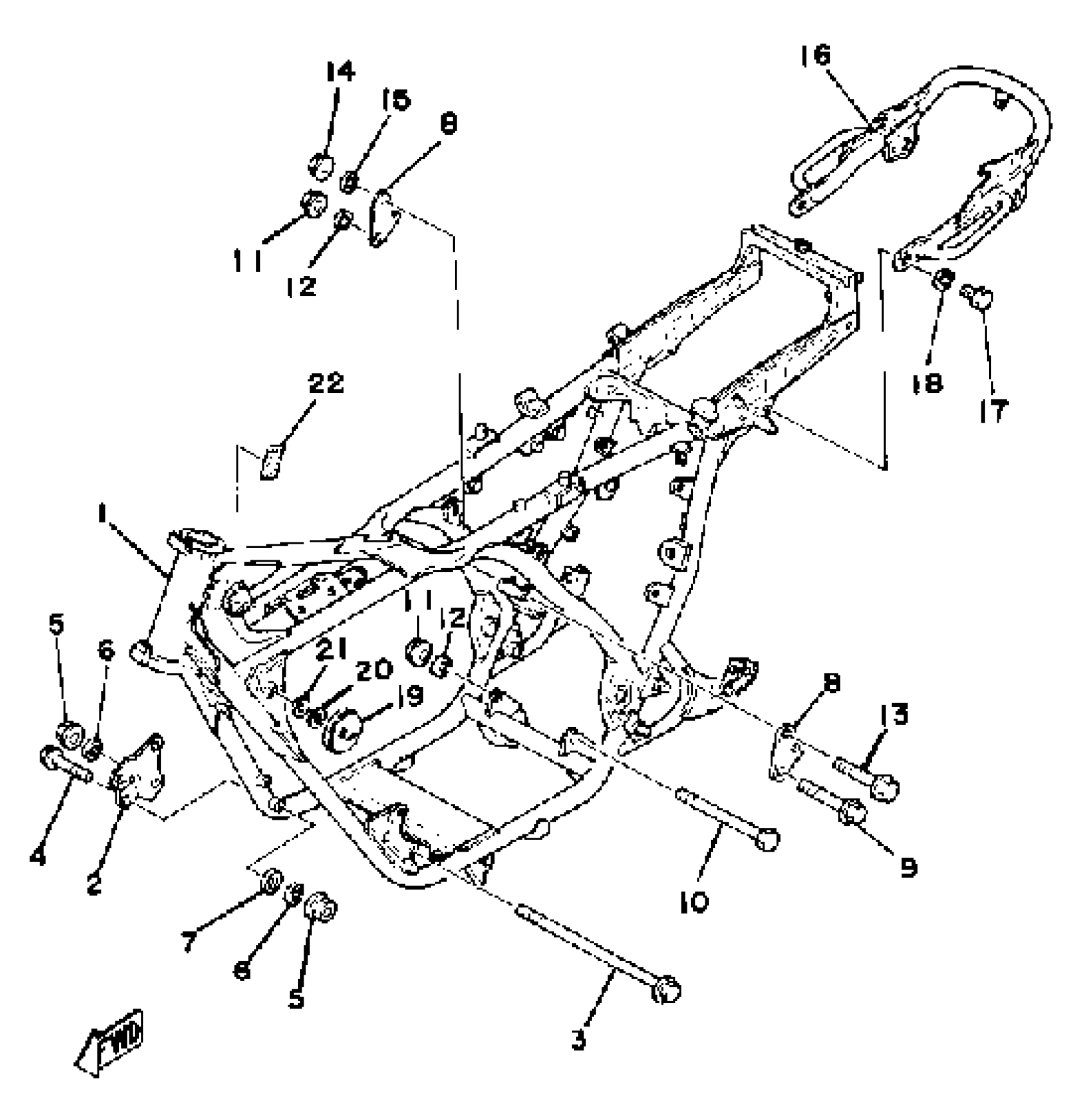

1979 Yamaha RD400 (RD400F) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(2V0-21110-00-33)

1
Out of stock

2

STAY, ENGINE 4

1A0-21317-00-33

1
Out of stock

3

BOLT,WASHER BASED

90105-08033-00

1
Out of stock

4

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

5

NUT, FLANGE

95704-08500-00

1
Out of stock

6

STAY, REAR

(1A0-21645-10-00)

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

STAY, ENGINE 2

1A1-21315-00-00

1
Out of stock

9

BOLT, FLANGE(7LU)

95817-10070-00

—

$5.11

In stock

10

BOLT

90101-10313-00

1
Out of stock

11

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

12

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

13

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

14

NUT, FLANGE

95704-08500-00

1
Out of stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

17

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

19

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

20

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

21

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

22

PLATE, APPROVAL NO

(2F5-21181-01-00)

1
Out of stock
