1979 Yamaha RD400 (RD400F) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

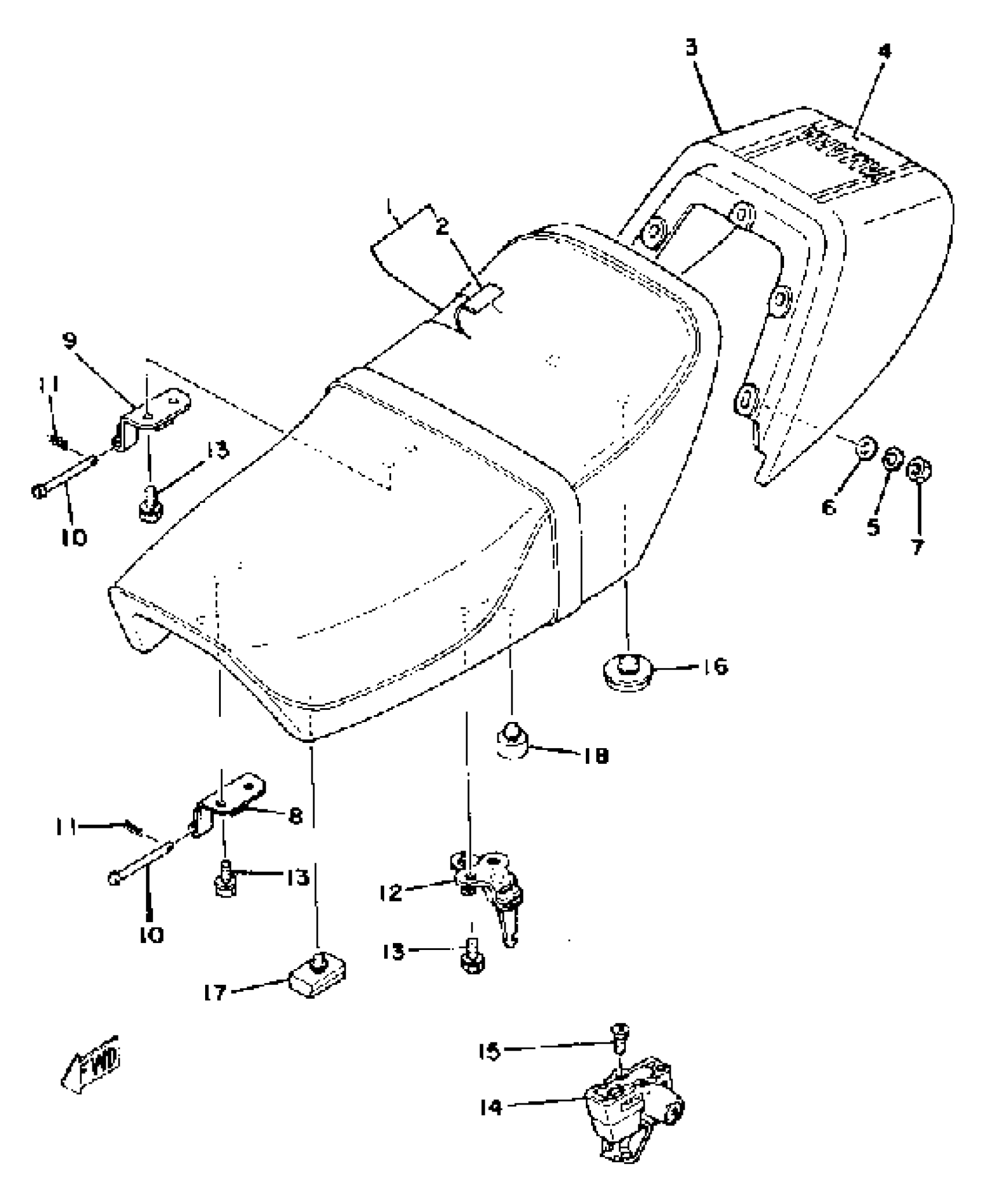

1979 Yamaha RD400 (RD400F) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

2V0-W2472-00-00

1
Out of stock

2

. COVER, DOUBLE SEAT

2V0-24731-00-00

1
Out of stock

3

COVER, TAIL

2V0-24756-00-Y9

1
Out of stock

4

GRAPHIC, TAIL COVER

(2V0-24757-00-00)

1
Out of stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

HINGE, SEAT

248-24726-00-33

1
Out of stock

9

HINGE, SEAT

1A0-24726-00-00

1
Out of stock

10

PIN, CLEVIS

91701-05055-00

1
Out of stock

11

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

12

BRACKET, SEAT

371-24728-02-00

1
Out of stock

13

BOLT (583)

90101-06304-00

1

$5.85

In stock

14

SEAT LOCK ASSEMBLY

584-24705-00-00

1
Out of stock

15

SCREW, FLAT

98707-06012-00

1

$6.18

In stock

16

PAD, SEAT

1T4-24741-00-00

—

$6.72

In stock

17

DAMPER, SEAT

214-24724-00-00

—

$6.72

In stock

18

STOPPER MAIN STAND

278-27114-00-00

—

$8.45

In stock
