1979 Yamaha RD400 (RD400F) Stand - Footrest Diagram

← All diagrams

Find the part on the Stand - Footrest diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

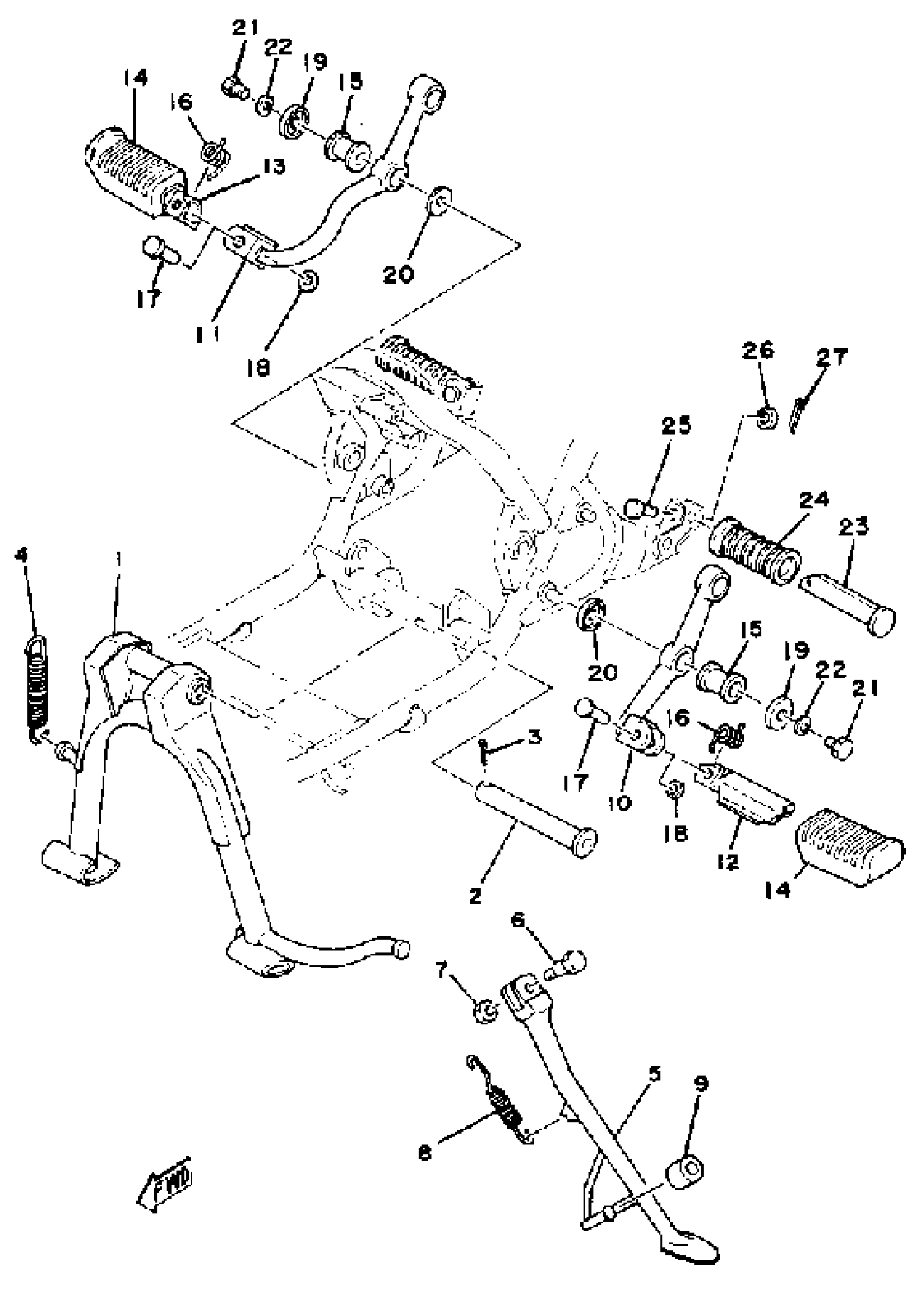

1979 Yamaha RD400 (RD400F) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, MAIN

(278-27111-00-00)

1
Out of stock

2

SHAFT, MAIN STAND

278-27112-00-00

1
Out of stock

3

PIN, COTTER

91490-30030-00

1

$7.15

In stock

4

SPRING, TENSION

90506-35058-00

1
Out of stock

5

STAND, SIDE

1A0-27311-00-33

1
Out of stock

6

BOLT 266273170000

90109-08034-00

1
Out of stock

7

. NUT

95380-08700-00

1

$3.07

In stock

8

SPRING, TENSION (360)

90507-25023-00

1

$24.52

In stock

9

STOPPER

278-27314-00-00

1
Out of stock

10

FOOTREST 1

2R8-27411-01-33

1
Out of stock

11

FOOTREST 2

(2R8-27421-00-33)

1
Out of stock

12

FOOTREST

3CK-27451-00-00

1
Out of stock

13

FOOTREST

3N6-27461-00-00

1
Out of stock

14

COVER, FOOTREST

1A0-27413-00-00

1
Out of stock

15

GROMMET(4CG)

90480-20543-00

1
Out of stock

16

—

$3.26

In stock

17

PIN (214-27418-00)

90243-08006-00

—

$10.68

In stock

18

—

$6.58

In stock

19

WASHER, PLATE

90209-08150-00

1
Out of stock

20

WASHER, PLATE (1L9)

90209-12157-00

—

$6.71

In stock

21

BOLT, HEXAGON

97017-08016-00

—
Out of stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

FOOTREST, REAR 1

2GV-27431-00-00

—

$27.39

In stock

24

COVER, REAR FOOTREST

120-27433-00-00

—

$7.51

In stock

25

PIN, CLEVIS (2F9)

91701-06035-00

—
Out of stock

26

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

27

PIN, COTTER

91490-16020-00

1

$6.23

In stock
