1978 Yamaha RD400 (RD400E) Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

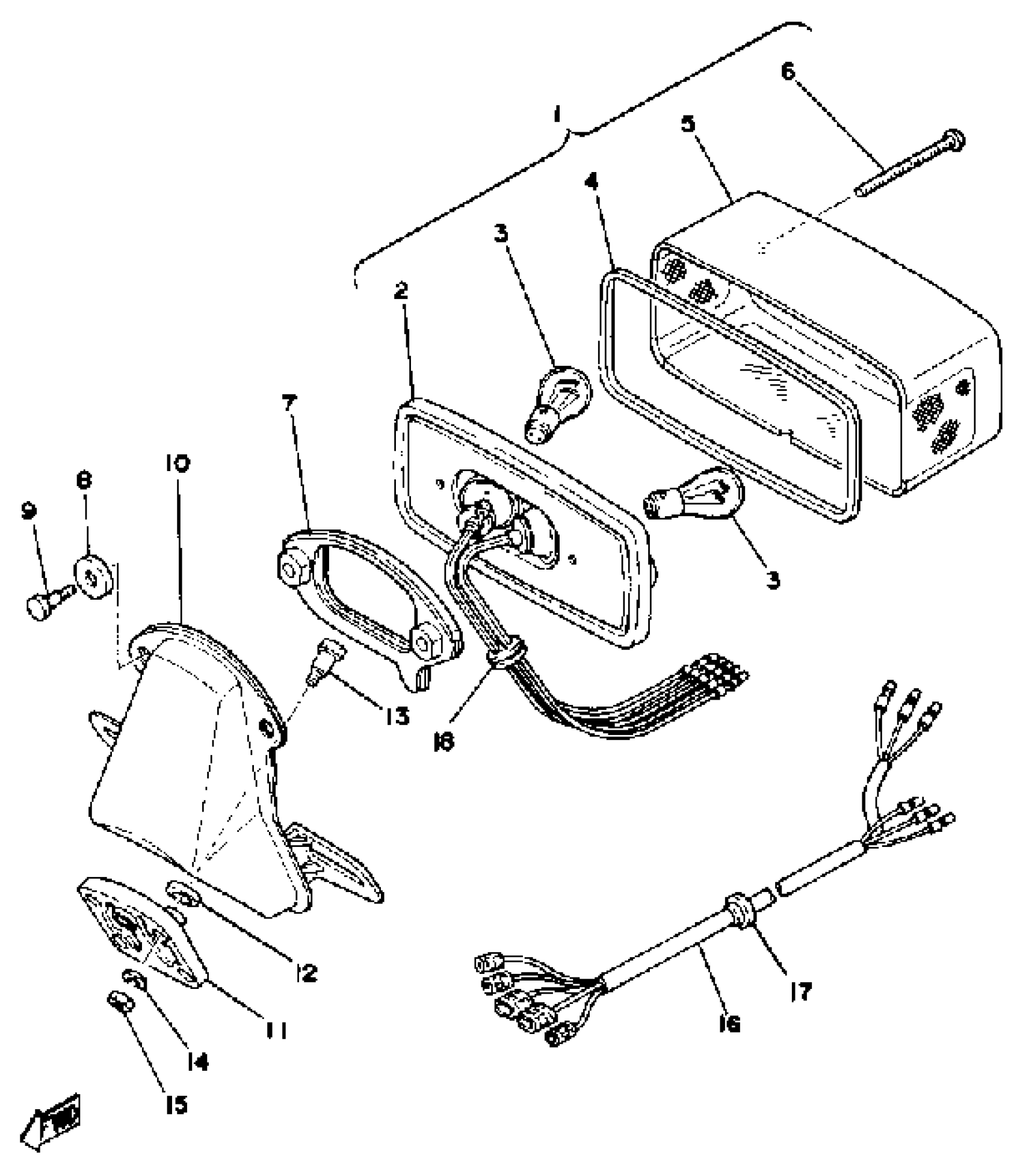

1978 Yamaha RD400 (RD400E) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

2A2-84710-60-00

1
Out of stock

2

. BASE, TAIL LAMP

2A2-84711-60-00

1
Out of stock

3

1

$10.02

In stock

4

. GASKET, TAIL LENS

1A0-84723-60-00

1
Out of stock

5

. LENS, TAILLIGHT

1A0-84721-60-00

1
Out of stock

6

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

7

SHEET, BASE

1A0-84712-60-00

1
Out of stock

8

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

9

BOLT, TAILLAMP

1A0-84726-60-00

1
Out of stock

10

BRACKET, LICENSE

2A2-84751-60-33

1
Out of stock

11

DAMPER

1A2-84753-00-00

1
Out of stock

12

DAMPER

1A2-84753-10-00

1
Out of stock

13

BOLT 338845520000

90109-06022-00

1

$8.14

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

CORD, TAILLIGHT

8L1-84727-00-00

1
Out of stock

17

GROMMET 152845180000

90480-12013-00

—
Out of stock

18

GROMMET (461)

90480-12067-00

—
Out of stock
