1978 Yamaha RD400 (RD400E) Handle Wire Diagram

← All diagrams

Find the part on the Handle Wire diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

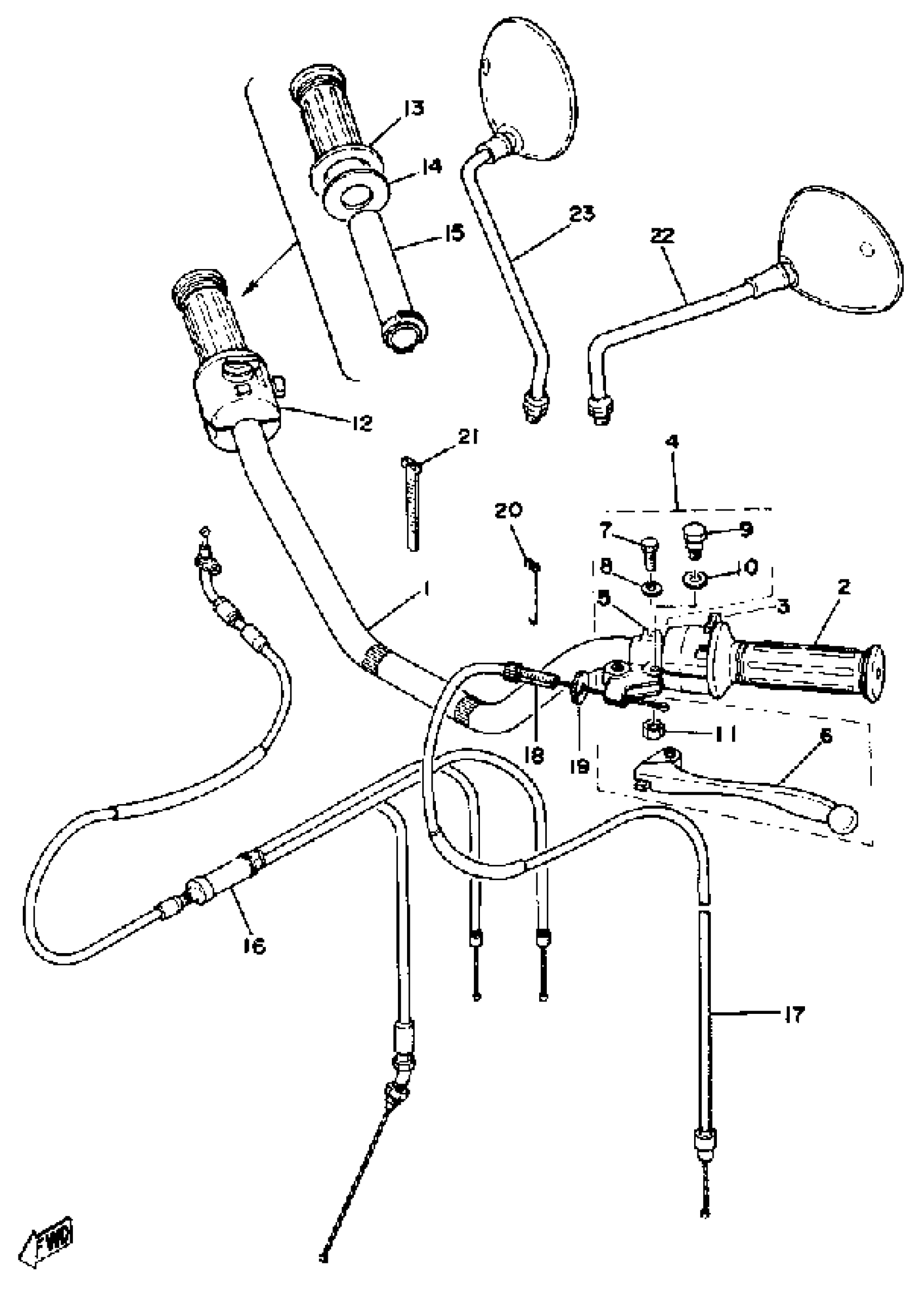

1978 Yamaha RD400 (RD400E) Handle Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

2L0-26111-00-00

1
Out of stock

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 3

1A0-83973-02-98

1
Out of stock

4

LEVER HOLDER ASSEMBLY 1 (360-82910-00)

360-82910-02-00

1
Out of stock

5

—

$24.57

In stock

6

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

7

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

10

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

11

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

12

INACTIVE PART NUMBER

1A0-83975-01-98

1
Out of stock

13

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

14

WASHER, PLATE(1UU)

90201-261L1-00

1
Out of stock

15

TUBE, THROTTLE GUIDE

1GU-26243-00-00

1
Out of stock

16

CABLE ASSY, THROTTLE & PUMP

1A0-26260-01-00

—
Out of stock

17

CABLE, CLUTCH (1A0-26335-00)

1A0-26335-10-00

1
Out of stock

18

BOLT

90123-08002-00

—

$8.93

In stock

19

NUT

90179-08030-00

—

$3.78

In stock

20

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

21

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

22

MIRROR ASSEMBLY LH

1J7-26290-12-00

1
Out of stock

23

MIRROR ASSEMBLY RH

1J7-26290-02-00

1
Out of stock
