1978 Yamaha RD400 (RD400E) AC Generator Diagram

← All diagrams

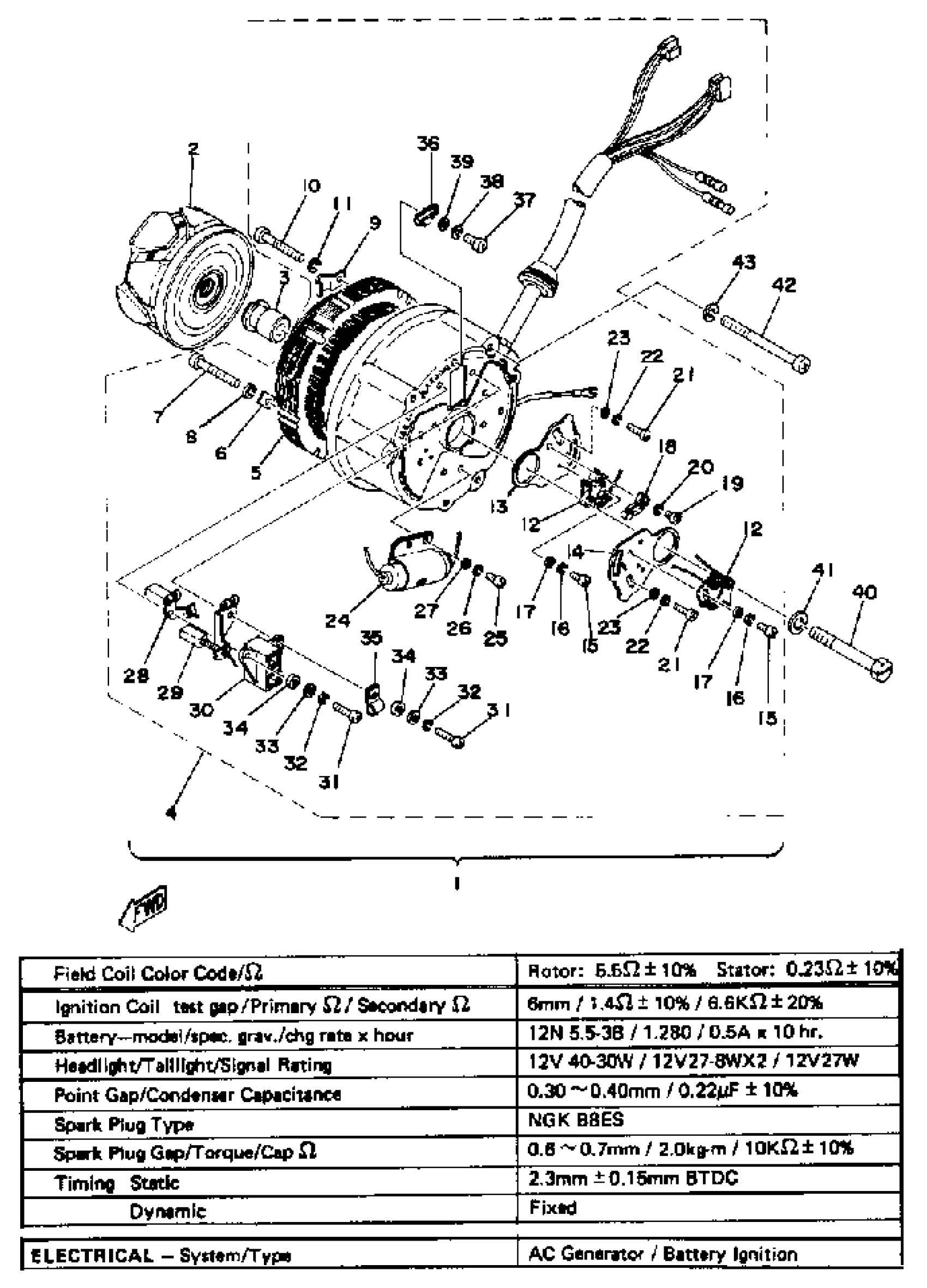

Find the part on the AC Generator diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha RD400 (RD400E) AC Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INACTIVE PART NUMBER

1A0-81600-61-00

1
Out of stock

2

. ROTOR ASSEMBLY

1A0-81650-20-00

1
Out of stock

3

. CAM

1A0-81651-20-00

1
Out of stock

4

. INACTIVE PART NUMBER

1A0-81610-61-00

1
Out of stock

5

.. ARMATURE ASSEMBLY

1A0-81640-60-00

1
Out of stock

6

.. INACTIVE PART NUMBER

1A0-81639-20-00

1
Out of stock

7

SCREW, PAN

98507-05035-00

1

$6.69

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

.. INACTIVE PART NUMBER

1A0-81627-20-00

1
Out of stock

10

SCREW, PAN

98507-05035-00

1

$6.69

In stock

11

. INACTIVE PART NUMBER

169-28121-00-00

1
Out of stock

11

. CONTACT BRKR ASSEMBLY

1A0-81621-20-00

1
Out of stock

11

.. CONDENSER 1

360-81625-90-00

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

TUNE KIT RD400C

ACC-01100-55-00

1
Out of stock

11

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

1
Out of stock

12

. CONTACT BRKR ASSEMBLY

1A0-81621-20-00

1
Out of stock

13

.. PLATE, CONTACT BRKR

1A0-81623-20-00

1
Out of stock
