1978 Yamaha RD400 (RD400E) Speedometer Tachometer Diagram

← All diagrams

Find the part on the Speedometer Tachometer diagram for your 1978 Yamaha RD400 (RD400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

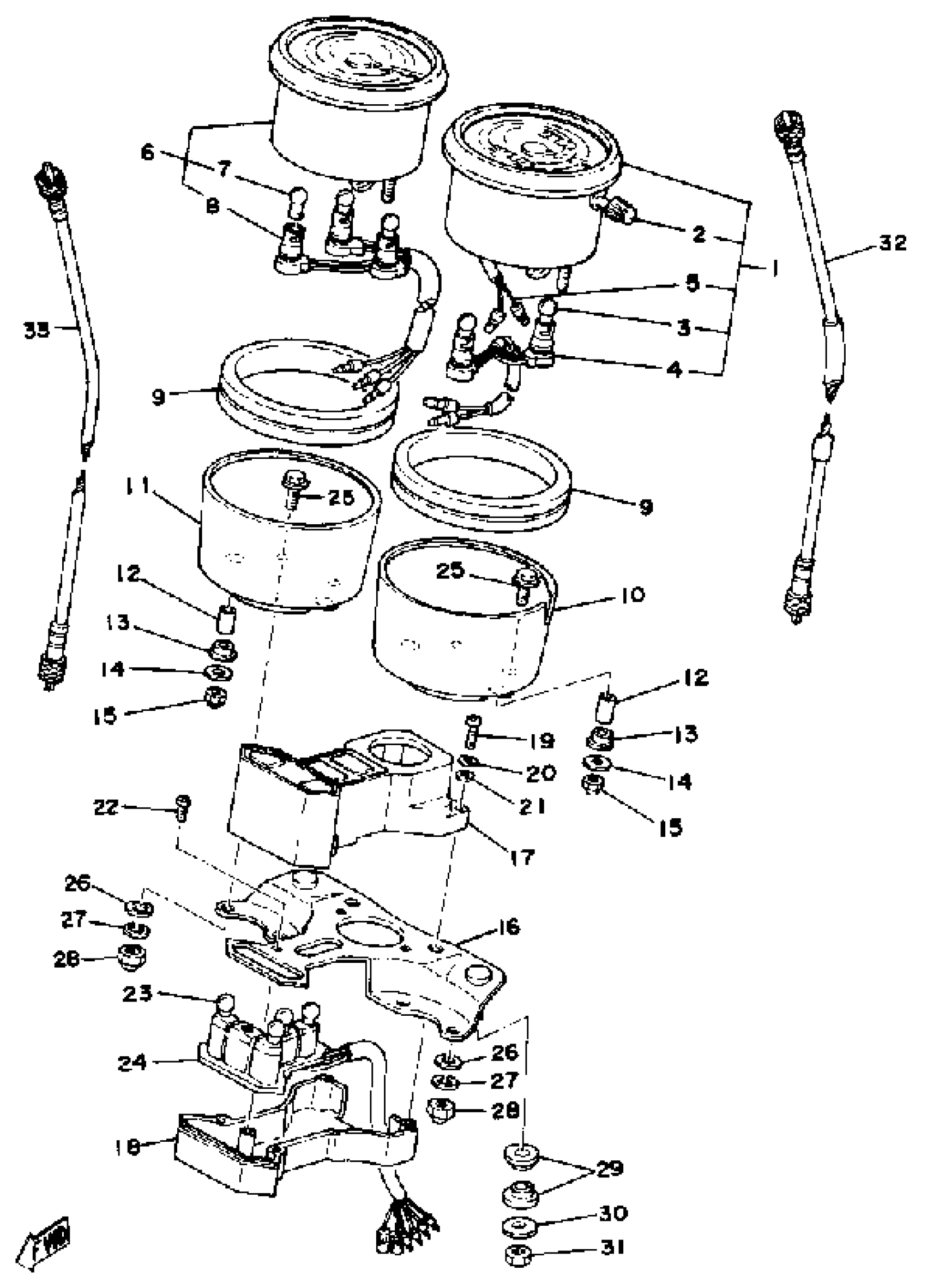

1978 Yamaha RD400 (RD400E) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

1A0-83570-41-00

1
Out of stock

2

KNOB, TRIP METER

4SV-83578-00-00

1
Out of stock

3

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

4

. INACTIVE PART NUMBER

1A0-83536-01-00

1
Out of stock

5

SOCKET, CORD ASSY

1A0-83556-01-00

1
Out of stock

6

INACTIVE PART NUMBER

1A0-83540-02-00

1
Out of stock

7

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

8

. INACTIVE PART NUMBER

1A0-83520-01-00

1
Out of stock

9

DAMPER

1A0-83513-00-00

1
Out of stock

10

COVER, SPEEDOMETER

1A0-83507-00-00

1
Out of stock

11

COVER, TACHOMETER

1A0-83508-00-00

1
Out of stock

12

COLLAR

1A0-83522-00-00

1
Out of stock

13

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

14

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

15

NUT (CROWN)

95303-05800-00

1
Out of stock

16

INACTIVE PART NUMBER

1A0-83519-01-00

1
Out of stock
