1973 Yamaha RD250 (RD250) Tail Lamp Diagram

← All diagrams

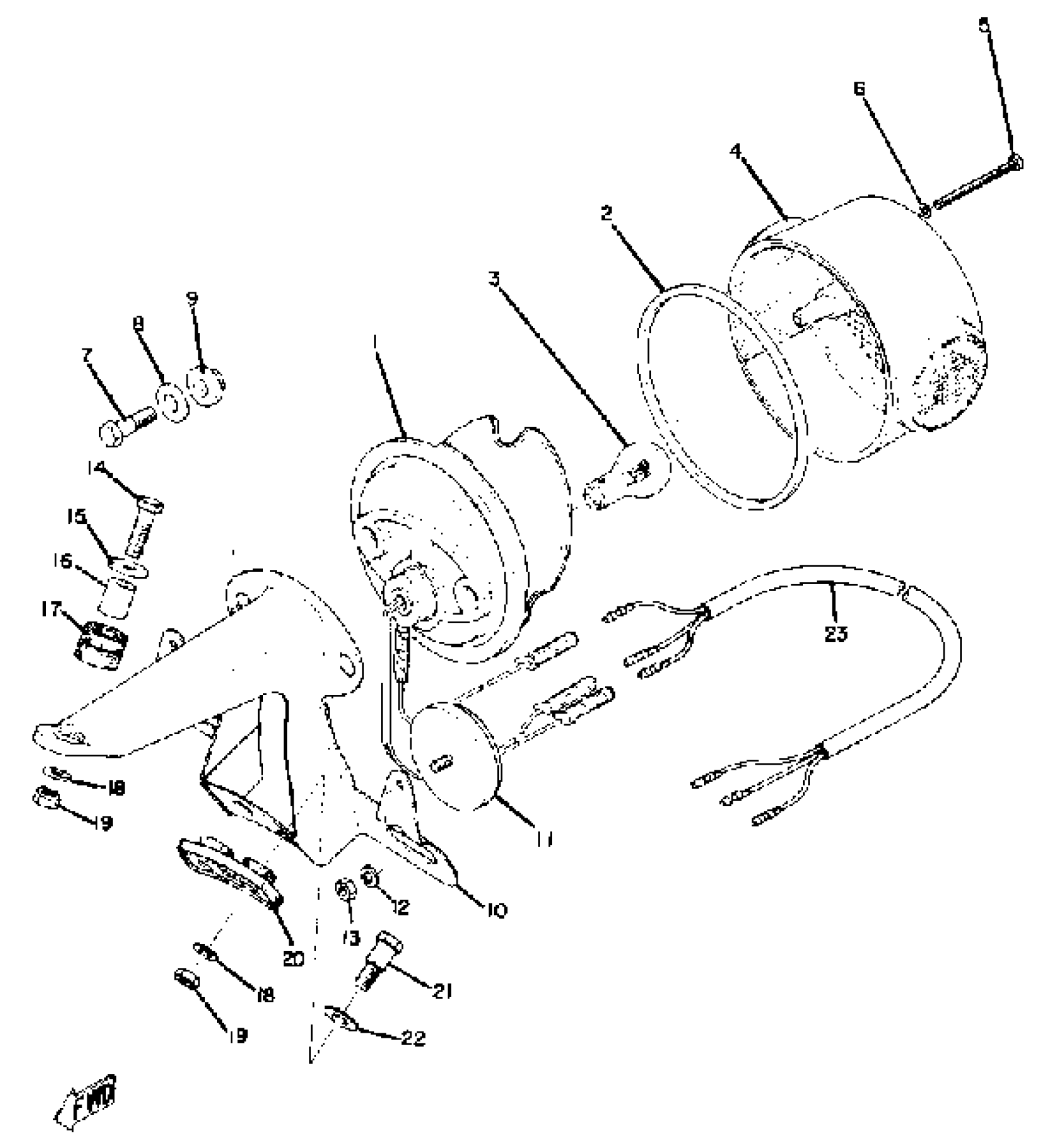

Find the part on the Tail Lamp diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha RD250 (RD250) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BASE, TAILLIGHT

(306-84711-61-00)

1
Out of stock

1

TAILLIGHT UNIT ASSEMBLY

(341-84710-61-00)

1
Out of stock

2

. GASKET, LENS

275-84523-60-00

1
Out of stock

3

1

$10.02

In stock

4

. LENS, TAIL LIGHT

341-84721-60-00

1
Out of stock

5

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

6

. WASHER

341-84722-60-00

1
Out of stock

7

SCREW

(479-84526-00-00)

1
Out of stock

8

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

9

. DAMPER

275-84527-60-00

1
Out of stock

10

. BRACKET, LICENSE

341-84751-61-93

1
Out of stock

11

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

15

WASHER

90209-06012-00

—

$4.71

In stock

16

COLLAR

90387-07020-00

—

$6.17

In stock

17

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

DAMPER

214-84553-01-00

—

$6.72

In stock

21

BOLT 168217380000

90109-06017-00

—
Out of stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

CORD, TAILLIGHT

251-84517-60-00

1
Out of stock
