1973 Yamaha RD250 (RD250) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

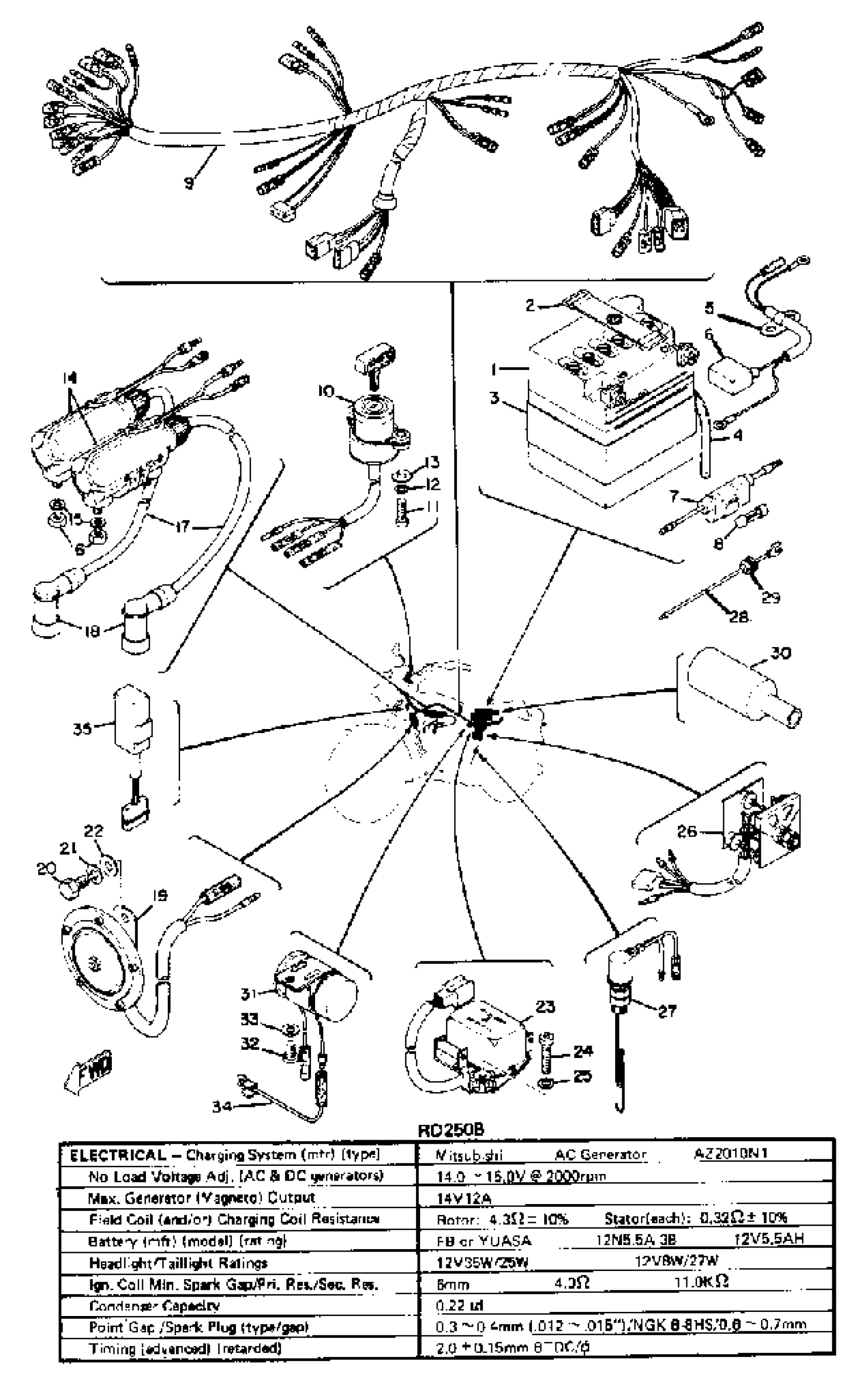

1973 Yamaha RD250 (RD250) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, BATTERY

(104-82111-20-00)

1
Out of stock

1

12N5.5A3B YUASA BATTERY

12N-55A3B-Y0-00

1
Out of stock

2

BAND, BATTERY

26L-82131-00-00

1

$7.05

In stock

3

BAND, BATTERY

1UA-82124-00-00

1
Out of stock

4

HOSE (L1500)

90445-084J0-00

1

$16.40

In stock

5

WIRE, LEAD 001

(360-82117-00-00)

1
Out of stock

5

WIRE, LEAD 000

(360-82117-01-00)

1
Out of stock

6

COVER, LEAD WIRE

(360-82119-00-00)

1
Out of stock

7

FUSE HOLDER ASSY

2UJ-82150-02-00

—
Out of stock

8

FUSE

1A0-82161-00-00

1
Out of stock

9

WIRE HARNESS ASSEMBLY

360-82590-43-00

1
Out of stock

10

MAIN SWITCH ASSEMBLY

360-82508-09-00

1
Out of stock

11

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

WASHER, SPEC''L SHAP

(90209-05116-00)

1
Out of stock

14

IGNITION COIL ASSEMBLY

254-82310-60-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

CORD, HIGHT TENSION 1

137-82341-01-00

1
Out of stock

18

PLUG CAP ASSY

56J-82370-00-00

—

$56.63

In stock

19

HORN

4L0-83371-30-00

1
Out of stock

20

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

VOLTAGE REG ASSEMBLY

278-81910-22-00

1
Out of stock

24

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

RECTIFIER ASSEMBLY

278-81970-21-00

1
Out of stock

27

STOP SWITCH ASSEMBLY

278-82530-09-00

1
Out of stock

28

WIRE, LEAD

(164-82541-00-00)

1
Out of stock

29

GROMMET

90480-01148-00

1
Out of stock

30

COVER, CONNECTER

(256-82599-00-00)

1
Out of stock

31

UNAVAILABLE IN PRICE BOOK

278-83550-71-00

1
Out of stock

32

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

WIRE, EARTH LEAD 1

(214-83354-00-00)

1
Out of stock

35

CHECKER, LIGHT

(360-84708-00-00)

1
Out of stock

35

CHECKER, LIGHT

(371-84708-00-00)

1
Out of stock
