1973 Yamaha RD250 (RD250) Handle Wire Diagram

← All diagrams

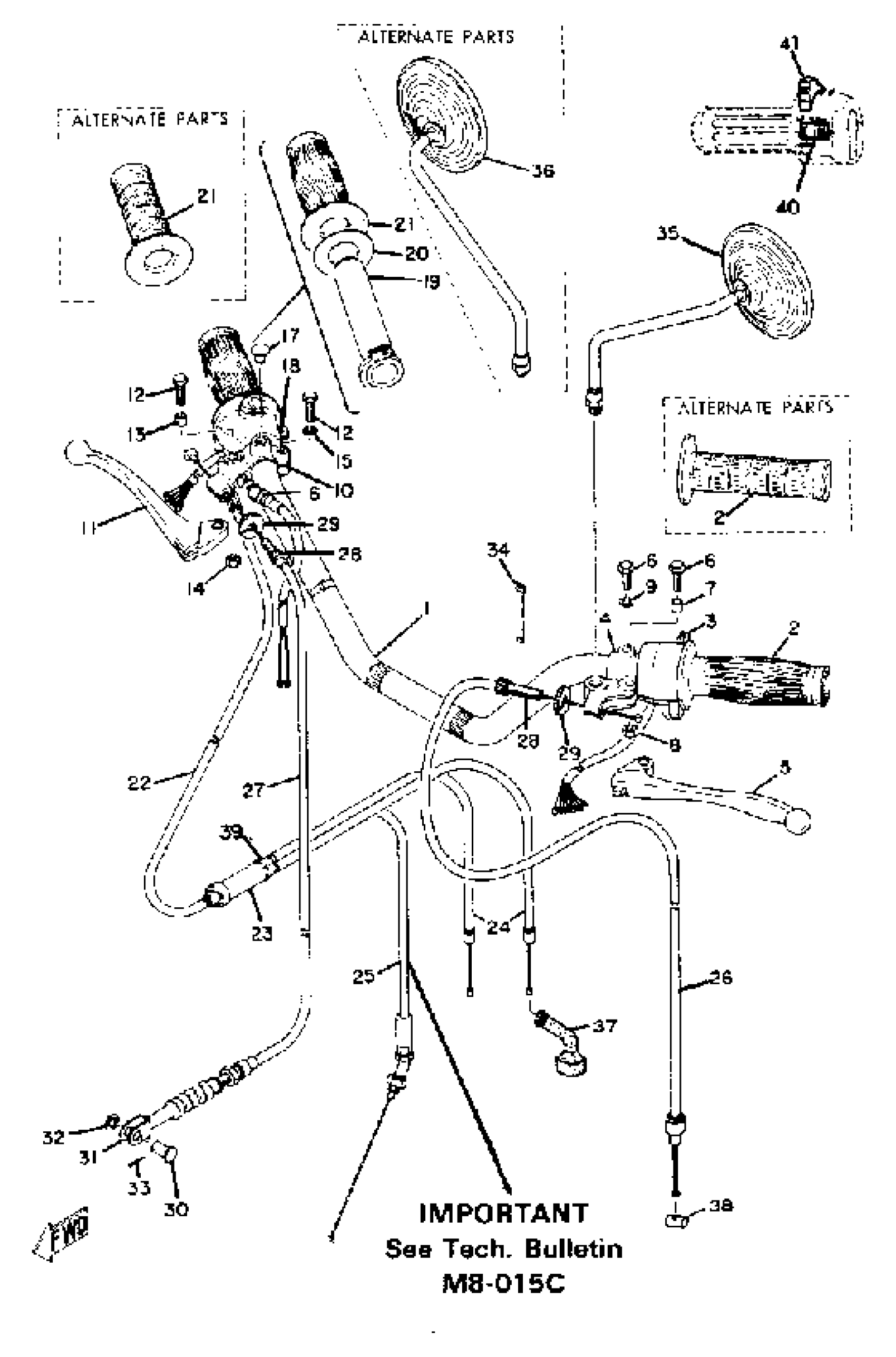

Find the part on the Handle Wire diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha RD250 (RD250) Handle Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP (R.H)

306-26242-10-00

1

$24.98

In stock

1

HANDLEBAR

2L0-26111-00-00

1
Out of stock

1

LEVER HOLDER ASSEMBLY 1 (360-82910-00)

360-82910-02-00

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

2

LEVER HOLDER ASSEMBLY 2

(361-82920-92-00)

1
Out of stock

3

SWITCH, HANDLE 3

360-83973-01-00

1
Out of stock

3

SWITCH, HANDLE 3

360-83973-02-00

1
Out of stock

4

—

$24.57

In stock

5

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

6

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

7

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

8

NUT(650)

95380-06700-00

1

$6.17

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

11

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

12

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

13

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

14

. NUT

95380-08700-00

1

$3.07

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

17

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

18

SWITCH, HANDLE 2

360-83975-03-00

1
Out of stock

19

TUBE, GUIDE

214-26243-00-00

—

$39.75

In stock

20

WASHER, PLATE(1UU)

90201-261L1-00

—
Out of stock

21

GRIP RH

(306-26242-10-00)

1
Out of stock

22

CABLE, THROTTLE 1 001

360-26311-01-00

1
Out of stock

23

CONNECTOR, CABLE

360-26261-01-00

1
Out of stock

23

CONNECTOR, CABLE

360-26261-01-00

1
Out of stock

24

CABLE, THROTTLE 2

360-26312-00-00

1
Out of stock

24

CABLE, THROTTLE 2

360-26312-01-00

1
Out of stock

25

TOOL

UNA-VAILA-BL-EI

1
Out of stock

26

CABLE, CLUTCH

278-26335-00-00

1
Out of stock

26

WIRE, CLUTCH

360-26335-00-00

—
Out of stock

27

CABLE, BRAKE

361-26341-00-00

1
Out of stock

28

BOLT

90123-08002-00

—

$8.93

In stock

29

NUT

90179-08030-00

—

$3.78

In stock

30

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

31

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

32

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

33

PIN, COTTER

91490-20025-00

—

$1.31

In stock

34

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

35

MIRROR ASSEMBLY LH

341-26290-10-00

1
Out of stock

36

BACK MIRROR RH (341-26290-01)

341-26290-01-00

1
Out of stock

37

CAP, RUBBER

360-26329-00-00

1
Out of stock

37

CAP, RUBBER 000

360-26329-02-00

1
Out of stock

38

END, WIRE

164-26363-00-00

—
Out of stock

39

CAP, CBLE CONNECTOR 000

360-26262-00-00

1
Out of stock

40

KNOB SET, HDLBR SWITCH

360-W0087-20-00

1
Out of stock

41

KNB SET, HDLBR SWCH

(360-W0087-10-00)

1
Out of stock
