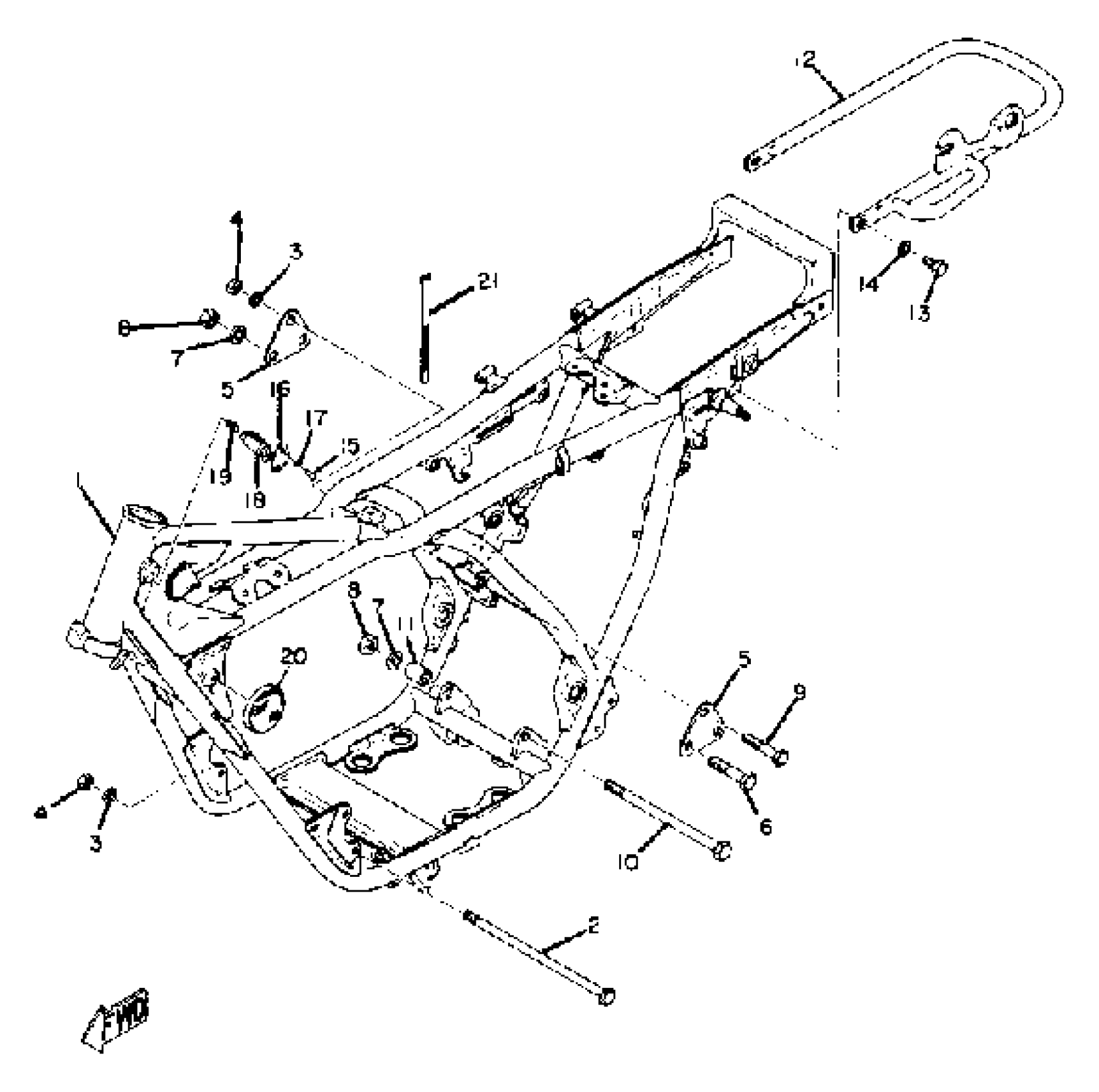

Yamaha RD250 (RD250) 1973 FRAME Diagram

#

Description
Price

1

FRAME

(360-21110-01-33)

Unavailable

2

BOLT,WASHER BASED

90105-08033-00

Unavailable

3

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

4

NUT(6L2)

95333-08600-00

$2.98

4

NUT, FLANGE

95704-08500-00

$5.76

5

STAY, ENGINE 2

(248-21315-00-00)

Unavailable

6

BOLT, FLANGE

95817-10060-00

$4.85

6

BOLT, HEXAGON

97013-10055-00

Unavailable

7

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

8

NUT(3BM)

95314-10600-00

$1.61

8

NUT, FLANGE(3BM)

95704-10500-00

$1.68

9

BOLT, FLANGE

95817-08055-00

$2.63

9

BOLT, HEXAGON

97013-08055-00

$3.02

10

BOLT, FLANGE

95821-10200-00

Unavailable

11

COLLAR

90387-12101-00

Unavailable

12

STAY, REAR

(360-21645-00-00)

Unavailable

13

BOLT, HEXAGON

97013-08020-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

15

RIVET 214234830000

90269-04003-00

Unavailable

16

CAP, HANDLE LOCK

(134-23484-10-00)

Unavailable

17

WASHER, WAVE

90206-04003-00

Unavailable

18

STEERING LOCK ASSY

341-23408-01-00

Unavailable

19

SPRING, CONICAL

90502-08005-00

Unavailable

20

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

21

BAND, SWITCH CORD

437-83936-11-00

Unavailable
