1976 Yamaha RD200 (RD200C) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

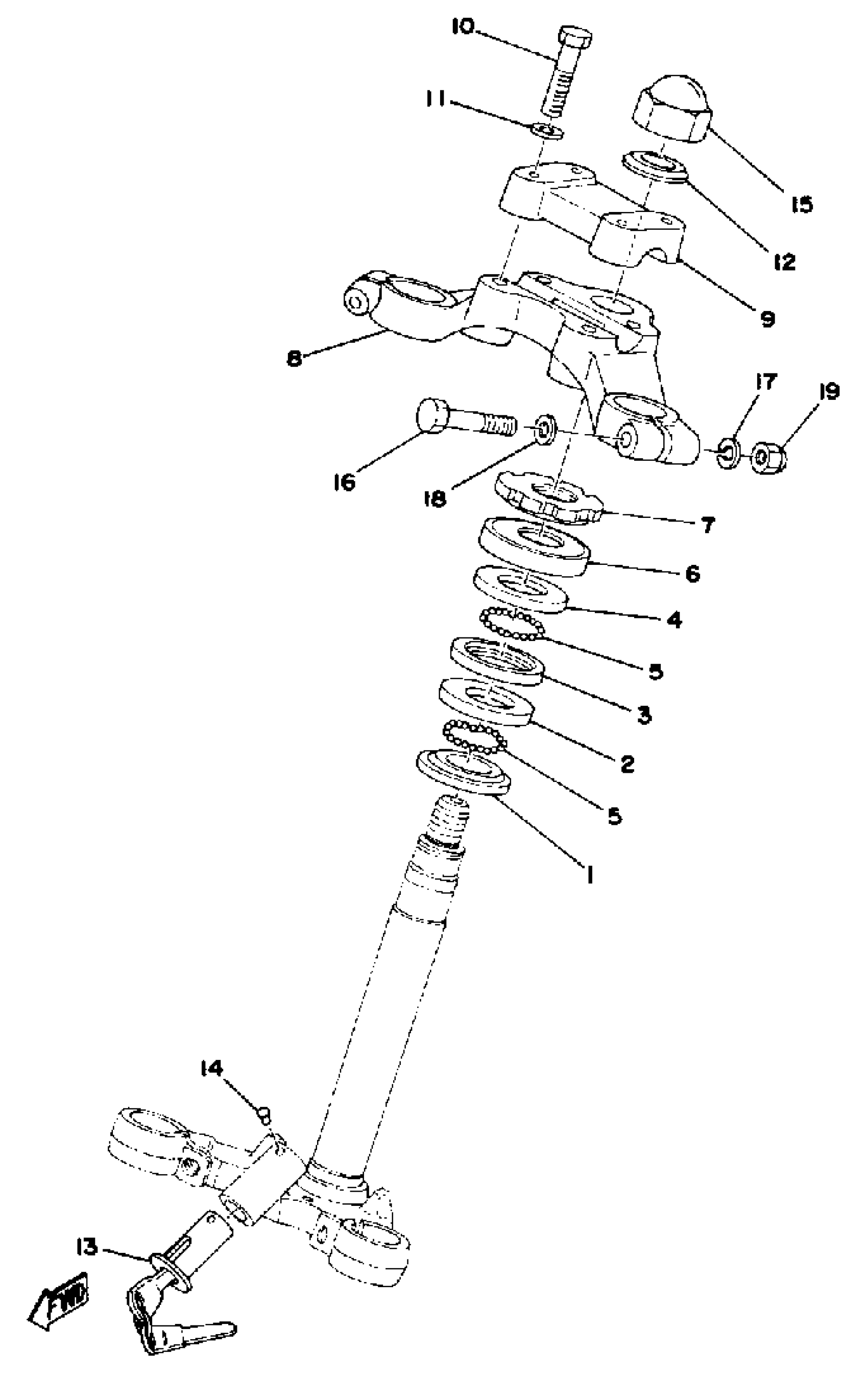

1976 Yamaha RD200 (RD200C) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

3

RACE,BALL 2

4FP-F3412-10-00

—

$3.98

In stock

4

RACE, BALL 1

4FP-F3411-20-00

1

$8.70

In stock

5

BALL

93501-04011-00

1
Out of stock

6

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

7

NUT

90179-25004-00

1

$20.78

In stock

8

UNAVAILABLE IN PRICE BOOK

53-52343-50-09

1
Out of stock

9

HANDLE, HOLDER

164-23441-01-98

—
Out of stock

10

BOLT

97013-08035-00

1

$4.80

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

WASHER, SPEC''L SHAP

90209-17057-00

1
Out of stock

13

STEERING LOCK ASSEMBLY

(122-23480-01-00)

1
Out of stock

14

UNAVAILABLE IN PRICE BOOK

12-22348-30-00

1
Out of stock

15

NUT, CROWN

90176-16016-00

1
Out of stock

16

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

18

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

19

NUT, CROWN

95303-08800-00

—

$7.52

In stock
