1976 Yamaha RD200 (RD200C) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

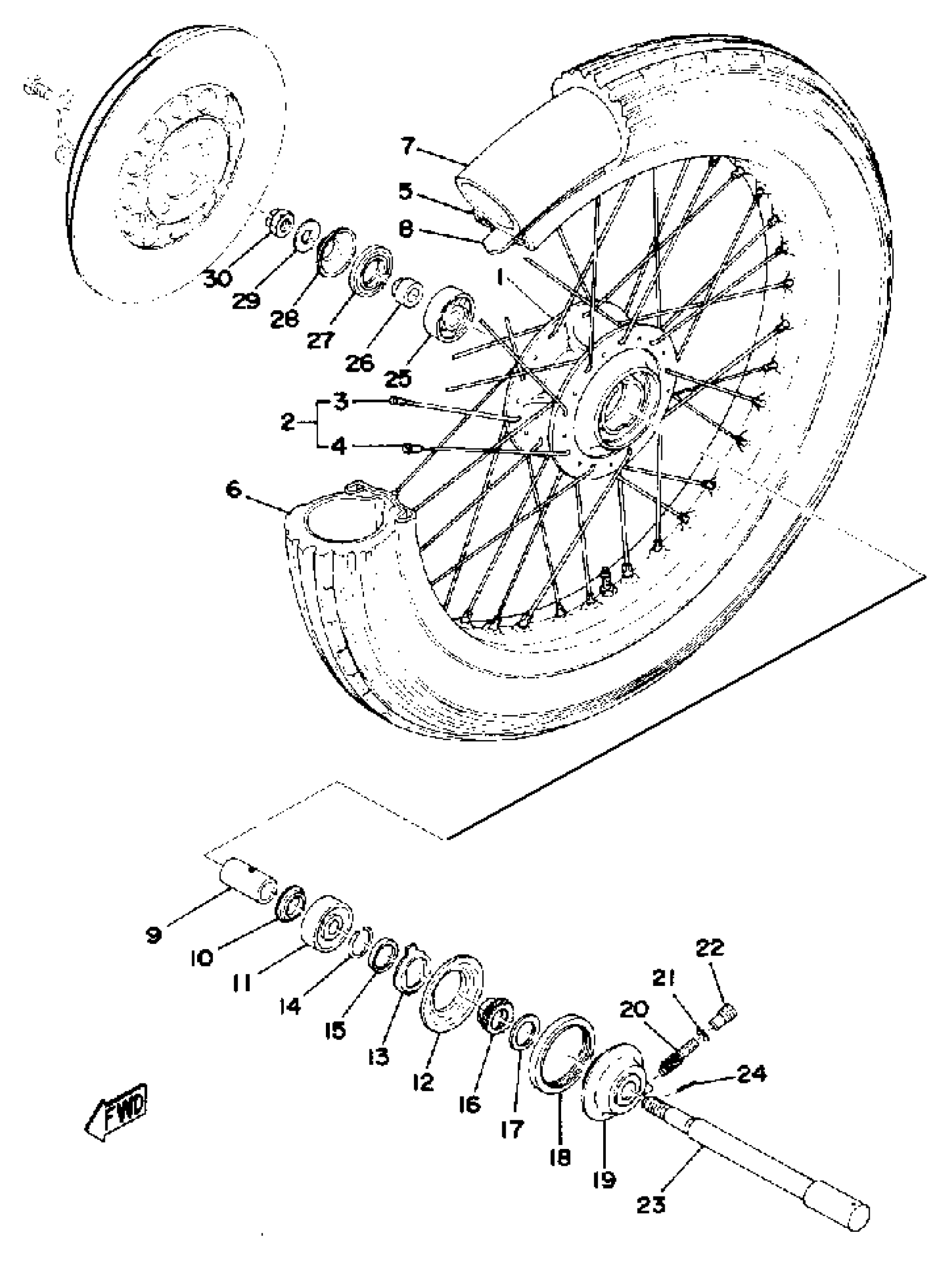

1976 Yamaha RD200 (RD200C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

40-42511-10-00

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

40-42510-40-00

1
Out of stock

3

. UNAVAILABLE IN PRICE BOOK

40-42519-69-00

1
Out of stock

4

. UNAVAILABLE IN PRICE BOOK

40-42519-79-00

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK

94-41618-09-40

1
Out of stock

6

UNAVAILABLE IN PRICE BOOK

94-12718-30-90

1
Out of stock

7

TUBE

(94227-18010-00)

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

94-32518-04-30

1
Out of stock

9

UNAVAILABLE IN PRICE BOOK

40-42511-70-00

1
Out of stock

10

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

11

BEARING

93306-30212-00

1

$33.35

In stock

12

RETAINER, CLUTCH (371,447)

341-25846-00-00

1
Out of stock

13

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

14

RING, STOP

341-25137-00-00

1
Out of stock

15

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

16

UNAVAILABLE IN PRICE BOOK

40-42513-50-00

1
Out of stock

17

WASHER PLATE 152172260000

90201-25490-00

—
Out of stock

18

OIL SEAL (45X56X6)

93105-45017-00

—
Out of stock

19

GEAR UNIT ASY

31A-25190-10-00

1
Out of stock

20

UNAVAILABLE IN PRICE BOOK

40-42513-80-00

1
Out of stock

21

SHIM, ROD

102-18416-00-00

1
Out of stock

22

BUSH

306-25136-00-00

1
Out of stock

23

UNAVAILABLE IN PRICE BOOK

40-42518-10-00

1
Out of stock

24

PIN, COTTER

91490-30030-00

—

$7.15

In stock

25

BEARING

93306-30212-00

1

$33.35

In stock

26

UNAVAILABLE IN PRICE BOOK

40-42518-30-00

1
Out of stock

27

OIL SEAL (22X42X7)

93102-22014-00

—

$10.68

In stock

28

COVER, HUB DUST

(246-25118-00-00)

1
Out of stock

29

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

30

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock
