1976 Yamaha RD200 (RD200C) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

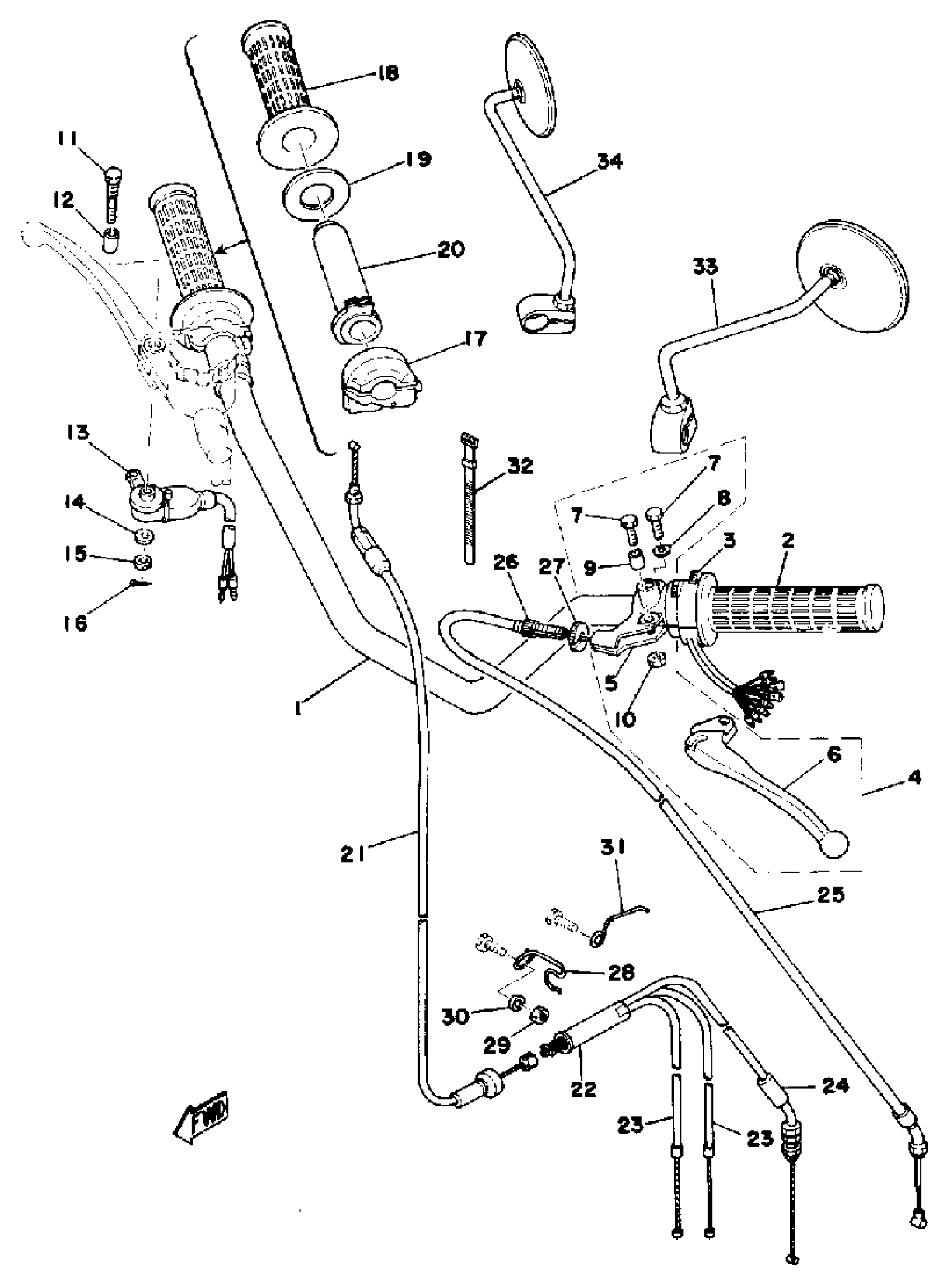

1976 Yamaha RD200 (RD200C) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

33-72611-10-00

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK

39-78397-31-00

1
Out of stock

4

UNAVAILABLE IN PRICE BOOK

49-88291-01-10

1
Out of stock

5

HOLDER, LEVER 1

3Y6-82911-00-00

1

$45.97

In stock

6

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

7

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

10

NUT(650)

95380-06700-00

1

$6.17

In stock

11

BOLT (306-83925-00)

90109-06103-00

1
Out of stock

12

UNAVAILABLE IN PRICE BOOK

90-17906-17-10

1
Out of stock

13

UNAVAILABLE IN PRICE BOOK

40-48398-03-00

1
Out of stock

14

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

15

NUT, SLTED

95307-05900-00

1
Out of stock

16

. PIN, COTTER

91401-12018-00

1
Out of stock

17

SWITCH, HANDLE 3

(397-83963-11-00)

1
Out of stock

18

GRIP (R.H)

306-26242-10-00

—

$24.98

In stock

19

WASHER, PLATE(1UU)

90201-261L1-00

—
Out of stock

20

TUBE, GUIDE

214-26243-00-00

—

$39.75

In stock

21

CABLE, THROTTLE 1

(397-26311-60-00)

1
Out of stock

22

CONNECTOR, CABLE

360-26261-01-00

1
Out of stock

23

CABLE, THROTTLE 2

397-26312-01-00

1
Out of stock

24

CABLE, PUMP

397-26321-00-00

1
Out of stock

25

CABLE, CLUTCH

397-26335-00-00

1
Out of stock

26

BOLT

90123-08002-00

—

$8.93

In stock

27

NUT

90179-08030-00

—

$3.78

In stock

28

UNAVAILABLE IN PRICE BOOK

39-72627-80-00

1
Out of stock

29

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

UNAVAILABLE IN PRICE BOOK

32-62632-80-00

1
Out of stock

32

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

33

MIRROR ASSEMBLY LH

341-26290-10-00

1
Out of stock

34

BACK MIRROR RH (341-26290-01)

341-26290-01-00

1
Out of stock
